ProEFI setup came in today.

Also waiting for my ProEFI color CAN logger display, Clutchmasters FX850 twin disc clutch setup, and I also found an M85 IS300 diff for a good price in great condition. They'll all be going in the car by next week. Aiming to have first start-up before Christmas. Will be mainly waiting on driveshaft and some fab work.

I am curious to see how the ProEFI system and CB harness with work with the factory electronics. In for results!

[slicktop]

Got some more stuff done.

What's this?

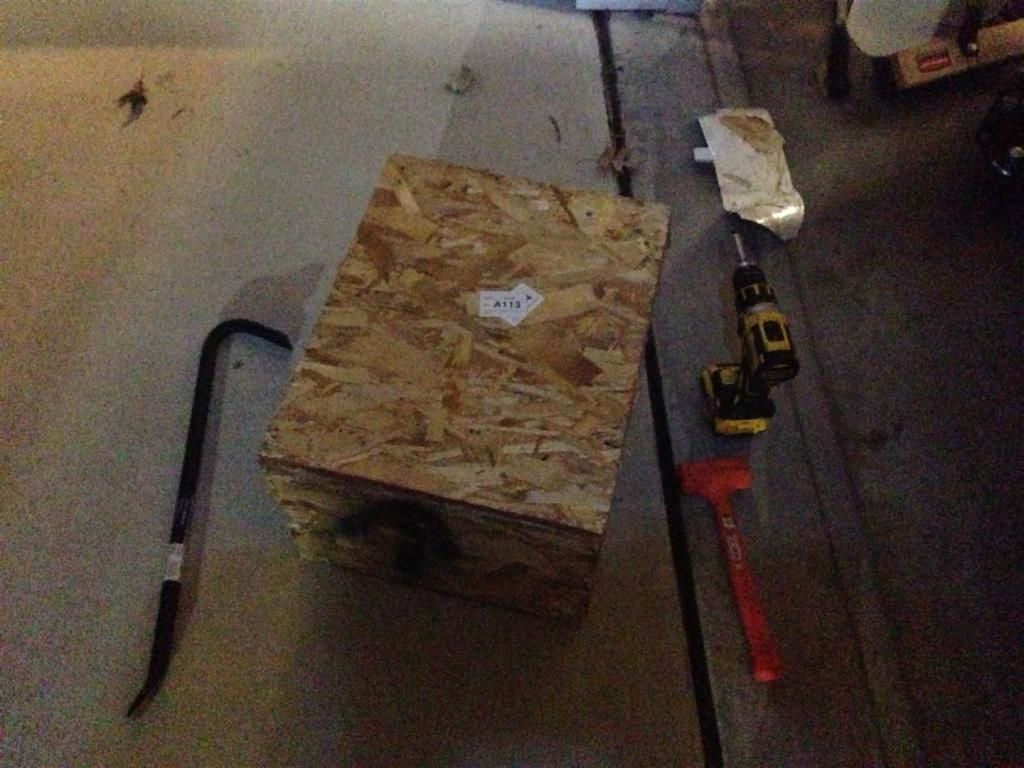

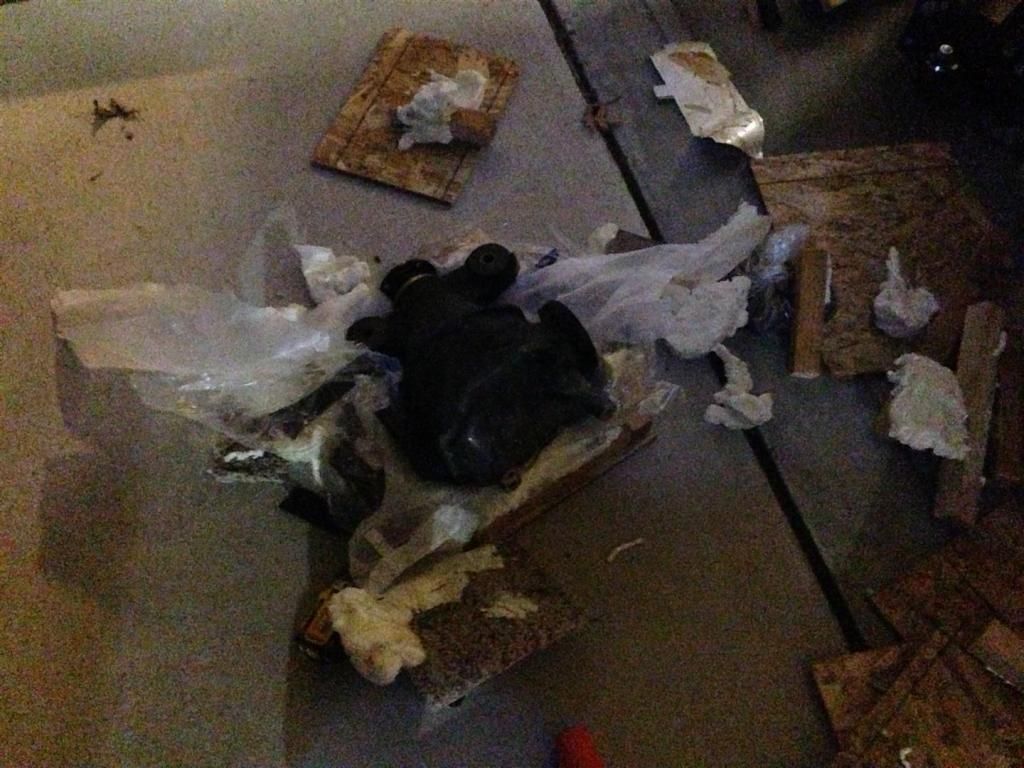

M85 Diff, took me like 10min to unpack it.


FullBlown Return-style Fuel Pump




Still lots left to go. I started working out the fuel line routing, installed some bits on the motor, etc. Waiting on my clutch to really jump forward. That's what is holding me back at the moment. Since it'll use a push-type mechanism instead of the OEM pull-type, there's no use even installing the stock setup in the meanwhile.

[OmarGC]

You the real MVP

[slicktop]

So, I wanted to post up some older pictures when I modified my valve covers to fit 1/2'' to -8/-10 adapters.

*Disclaimer: I'm a one man operation on this build (both labor and finances), without a shop, in a 1-1/2 car garage.... I get it.*

I've never gone this deep into a build before, but I needed to modify my valve covers for the fittings. The stock crankcase ventilation system in my setup would have had a damn seizure.

Important Tools:
Drill, any works but I used a cordless Dewalt 20v ([ame="http://www.amazon.com/DEWALT-DCD790B-Lithium-Brushless-Compact/dp/B00CSDII3S/ref=pd_sim_hi_3?ie=UTF8&refRID=19RYPTMEQDJ08ZSPWPM D"]Amazon.com: DEWALT DCD790B 20V XR Lithium Ion Brushless Compact Drill / Driver: Home Improvement[/ame])
45/64 HSS bit ([ame="http://www.amazon.com/gp/product/B0007Q75IW/ref=oh_aui_detailpage_o06_s00?ie=UTF8&psc=1"]45/64" High Speed Steel 1/2" Shank Drill Bit (S + D type drill) - Jobber Drill Bits - Amazon.com[/ame])
1/2-14 tap (go for a quality bit from an ebay ad. Morse, Hanson Whitney, etc)
Pro-Tap Tap Magic lubricant ([ame="http://www.amazon.com/Cutting-Fluid-Pro-Tap-16-Liquid/dp/B007I9Y2QY/ref=sr_1_cc_1?s=aps&ie=UTF8&qid=1417091557&sr=1-1-catcorr&keywords=tap+lubricant"]Cutting Fluid, Pro-Tap, 16 oz, Liquid - Construction Marking Tools - Amazon.com[/ame])
Tap Wrench for baffles ([ame="http://www.amazon.com/gp/product/B001KVJUZ4/ref=oh_aui_detailpage_o07_s00?ie=UTF8&psc=1"]Amazon.com: Starrett 93C T-Handle Tap Wrench, 1/4" - 1/2" Tap Size: Industrial & Scientific[/ame])
Tap Wrench for covers (Morse #4 straight tap wrench)
8-32 tap set for baffles (I'll get info up later)
Permatex 82180 Oil resistant gasket maker ([ame="http://www.amazon.com/Permatex-82180-Maximum-Resistance-Silicone/dp/B0002UEN1U"]Amazon.com: Permatex 82180 Ultra Black Maximum Oil Resistance RTV Silicone Gasket Maker, 3.35 oz. Tube: Automotive[/ame])
Permatex Red threadlocker ([ame="http://www.amazon.com/Permatex-27100-High-Strength-Threadlocker/dp/B000AAM2Z6/ref=pd_bxgy_hi_text_y"]Amazon.com: Permatex 27100 High Strength Threadlocker Red, 6 ml: Automotive[/ame])
Brake Cleaner

Other items:
Parts cleaner bin
Media Blaster cabinet
Powdercoat setup
Brushes
Dremel + attachments
Appropriate Stainless Steel hardware

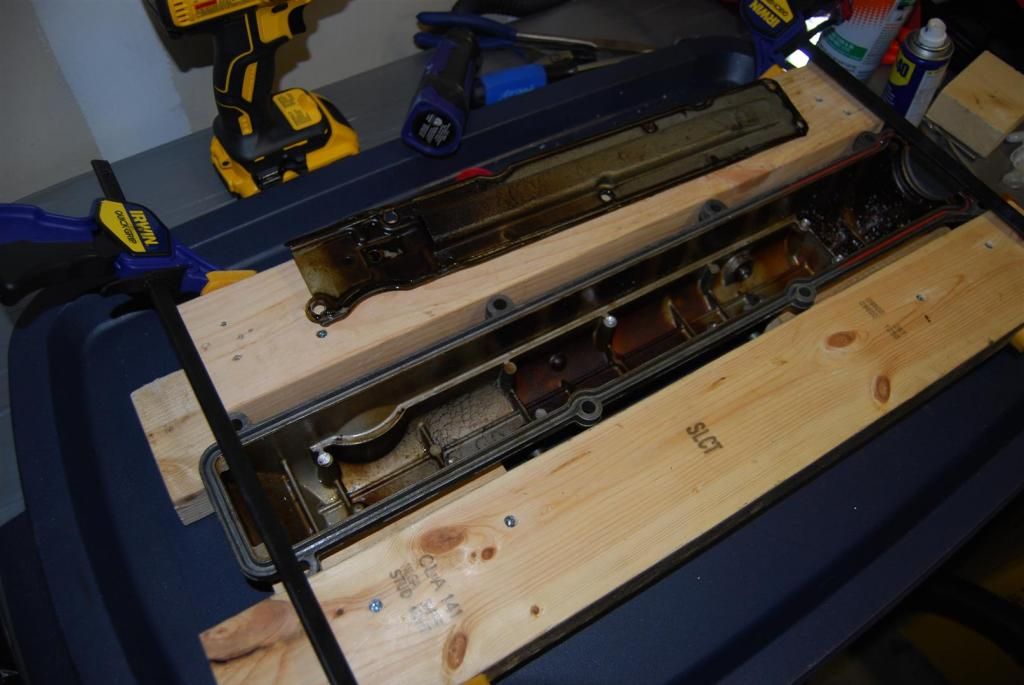

Braced the valve covers with some makeshift 2x4 braces to hold them in place.

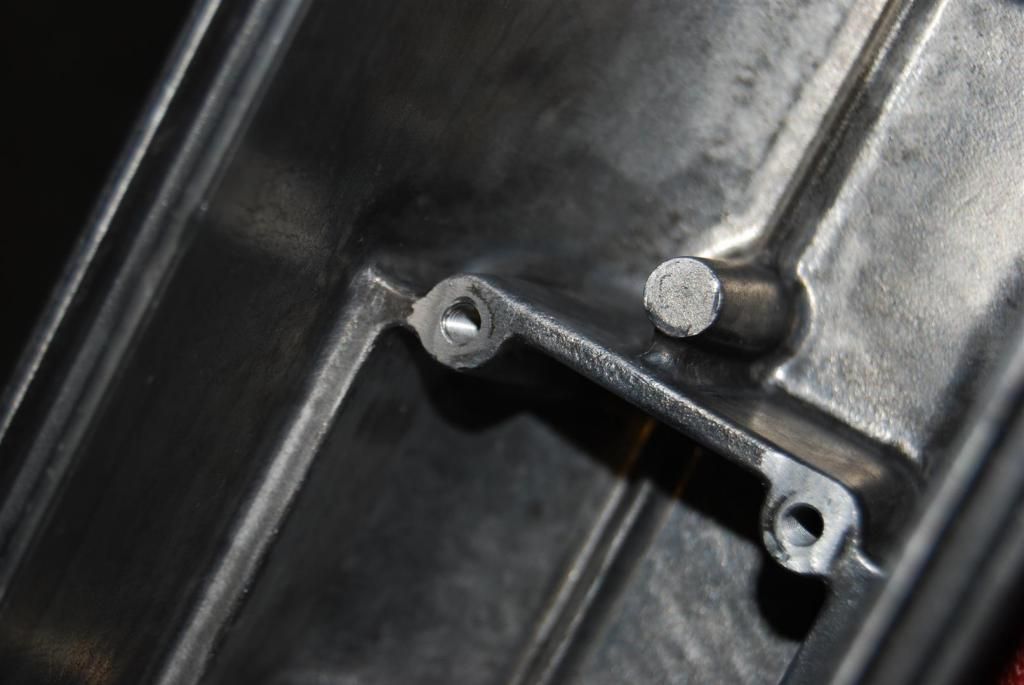

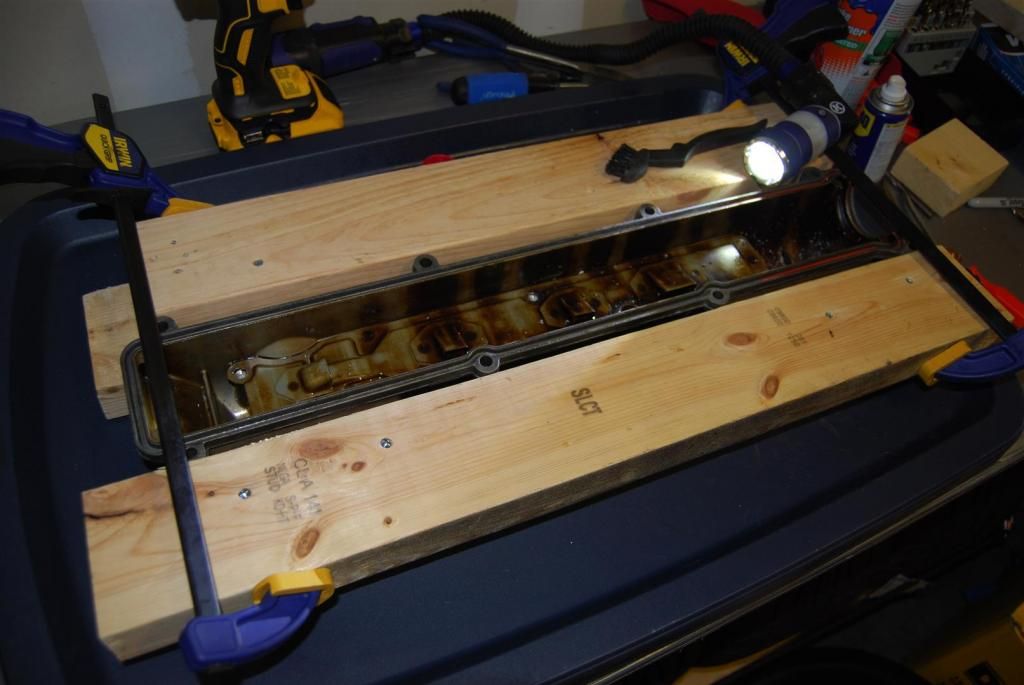

Drilled out the baffles. Can't remember what size bit, but it's not rocket science.

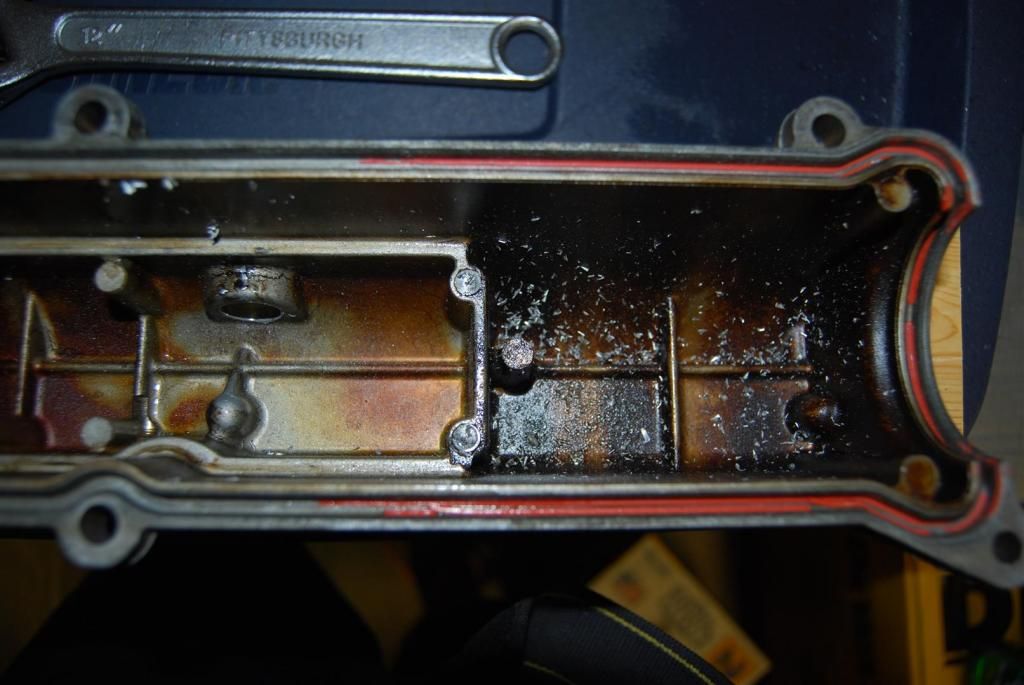

Lots of metal shavings, make sure you clean well.

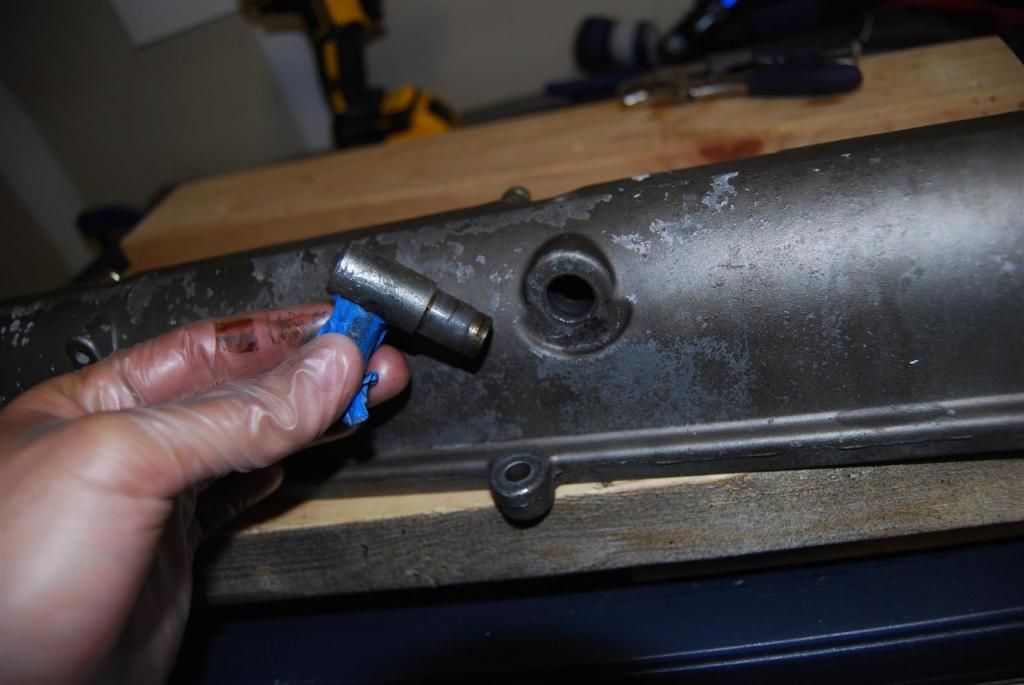

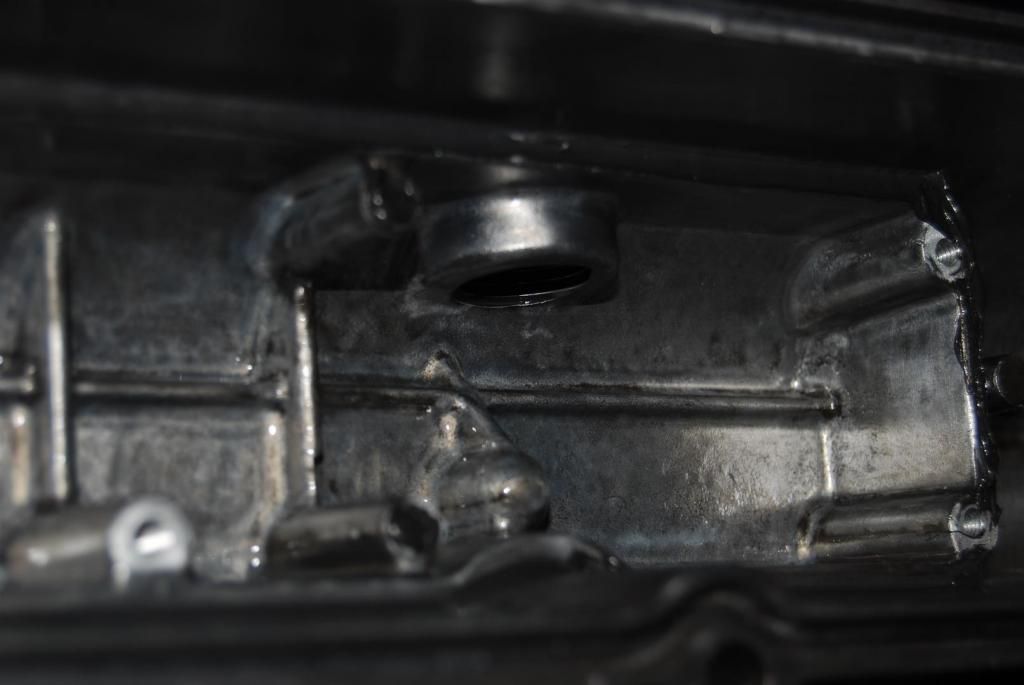

The stock fittings were press fit, so I just yanked them out.

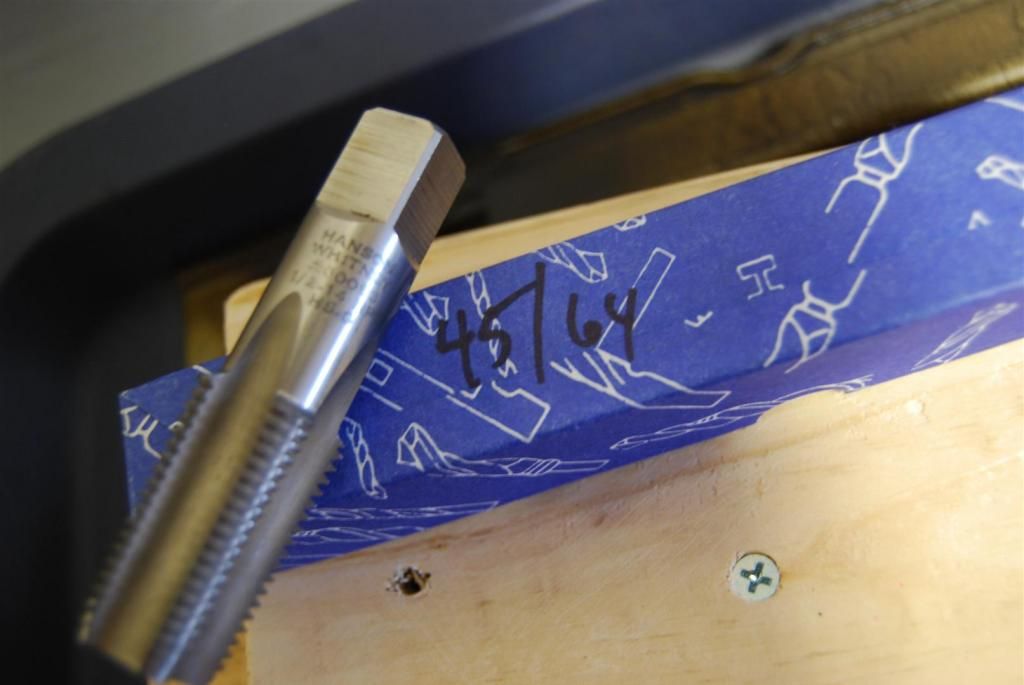

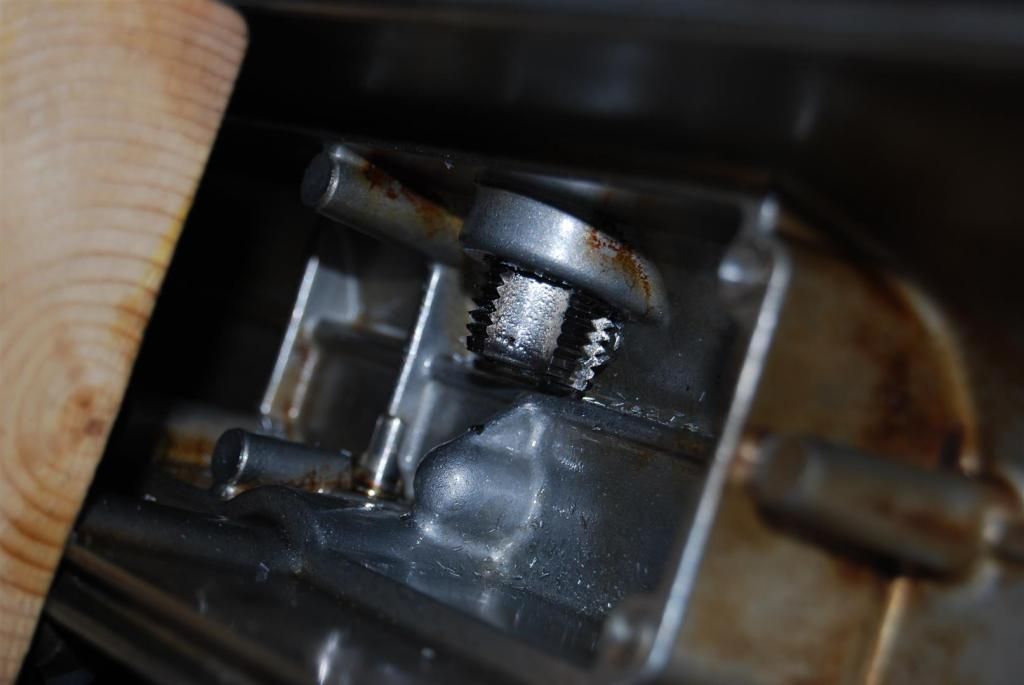

This is the drill bit size I used, along with the 1/2-14 NPT taper tap I used. No use getting anything other than this tap, they bottom out soon after penetrating the thickness of the valve cover. These fulfilled complete threading.

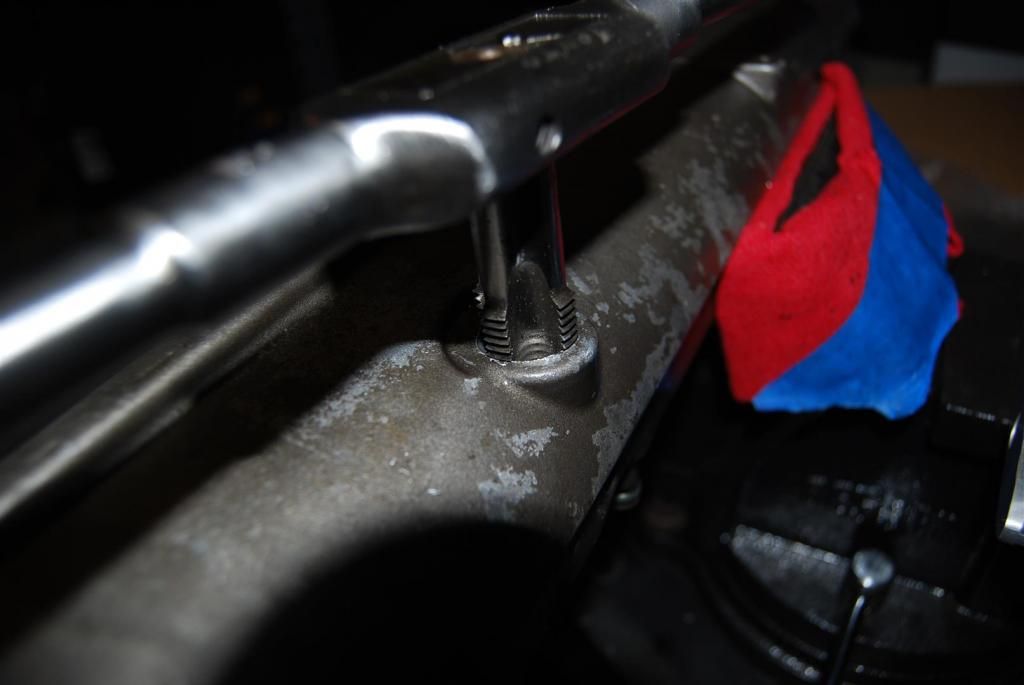

Tap in progress. When I was tapping, I would rotate a full turn, then back off about a 1/4 turn to break off accumulated shavings during the threading process.


I went until I bottomed out just to be sure.

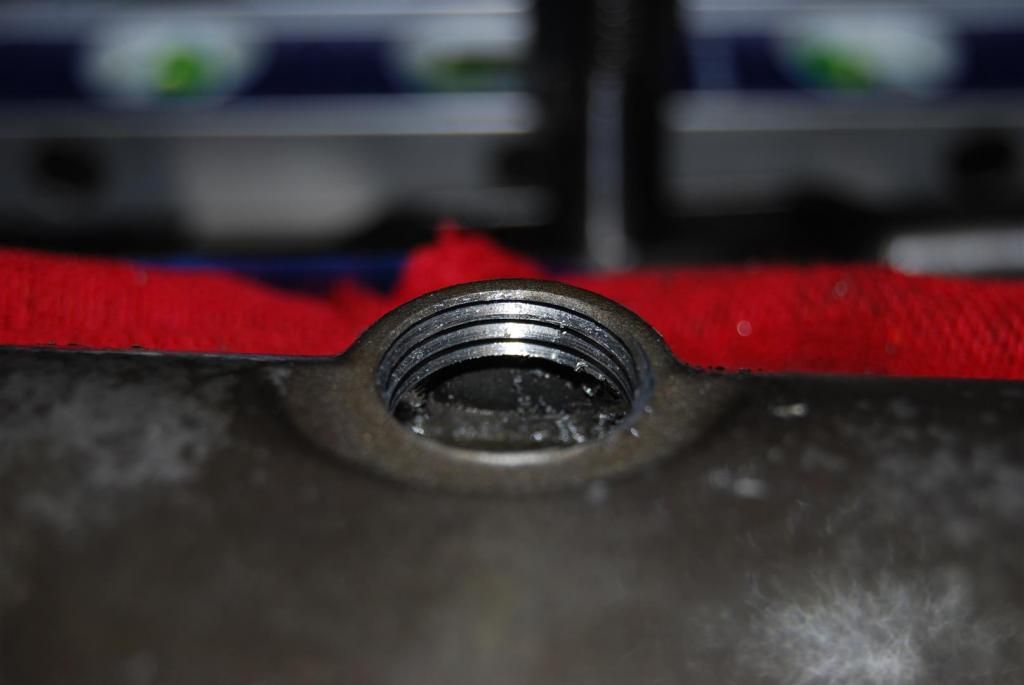

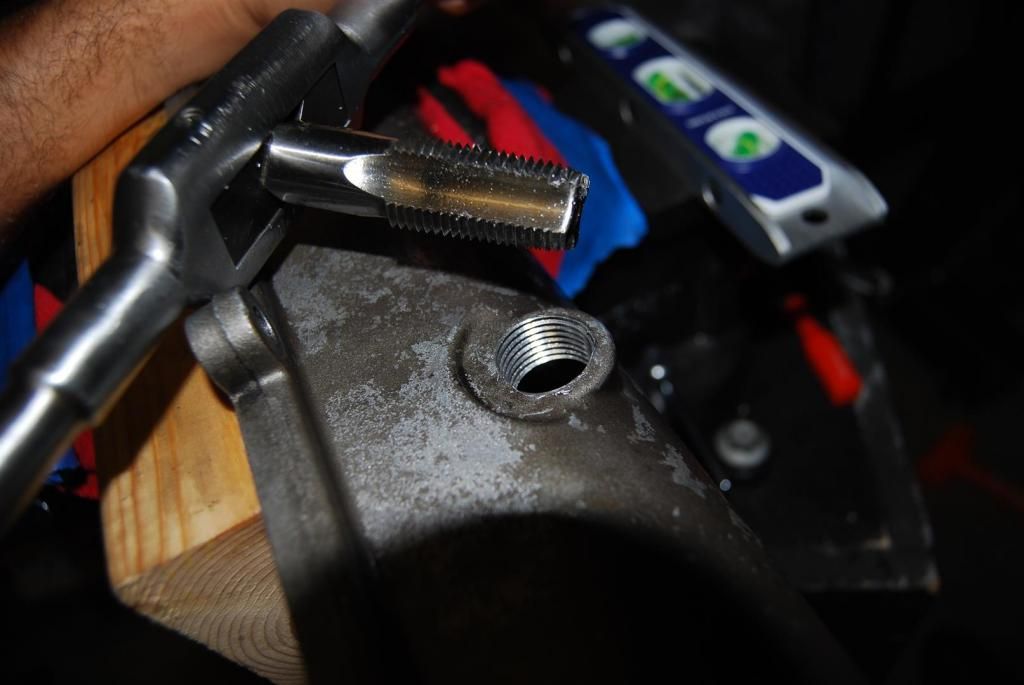

Tap complete.




At this point, I made an almost grave mistake in cleaning one of the covers in stove cleaner to try and save some time. It ate away at the finish of the inside and created aluminum's natural protection "finish" which is a thick, almost sooty coating. Extreme pain in the ass to remove, but it took me a few days with a dremel. After removing, I would coat with WD40 or rust prohibitior to prevent the accumulation of the coating from coming back. You can see the pattern on these photos made by a dremel bit. I used maybe 8-10 cans of brake cleaner to scrub inside and out both covers. They were completely stripped and powdercoated wrinkle black.

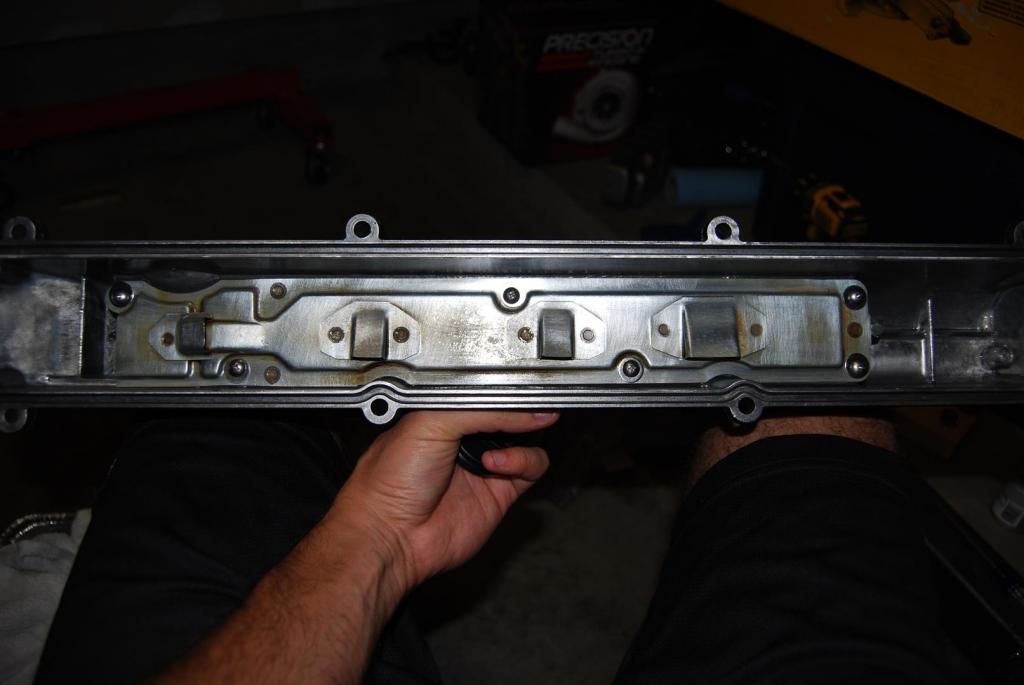

Ran a bead of oil resistant gasket maker along the part where the baffle and cover make contact.


This is the gasket maker I used. Can be bought at Autozone for a under $10.

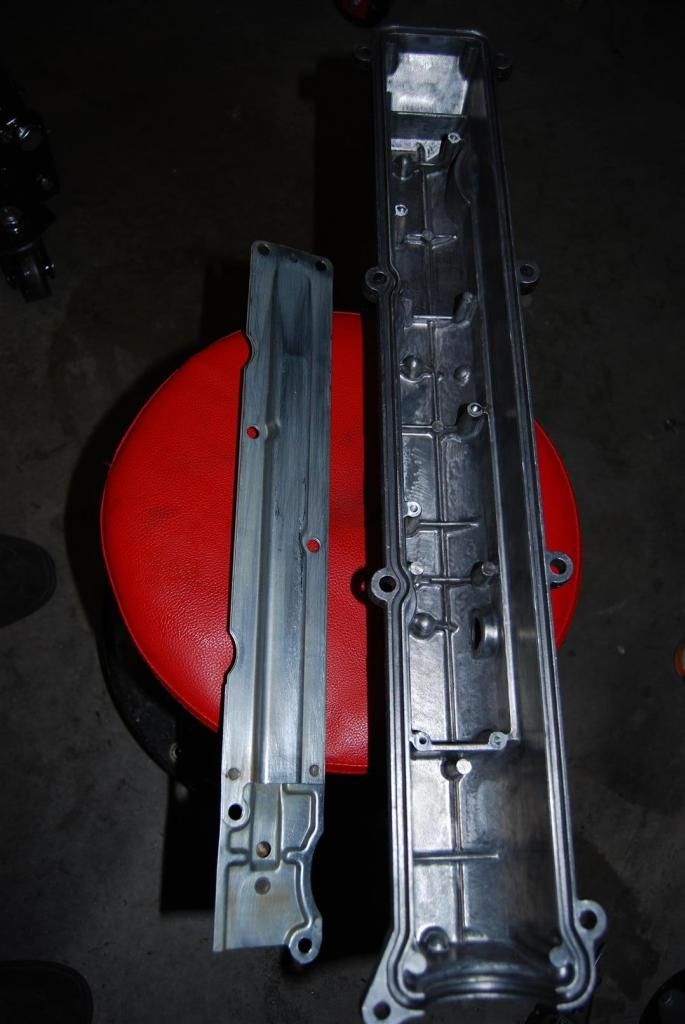

In all these pics, you can see I tapped the valve covers using 8-32 taps to tap the valve cover baffles. I used phillips head 8/32 x 1/2'' flat head *stainless steel* screws with a washer to hold the baffles in place. I ran each screw into each hole to make sure they'd thread all the way down, removed the screw and applied red threadlock to each, then reinstalled the final time.



One done. Other is the same way.

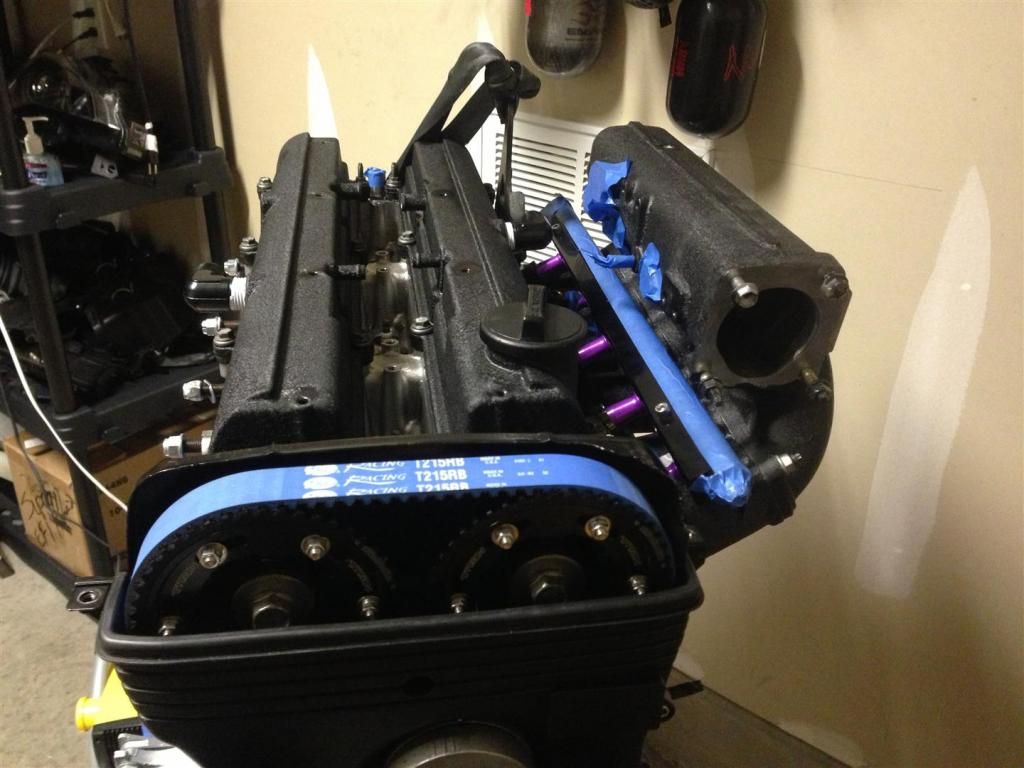

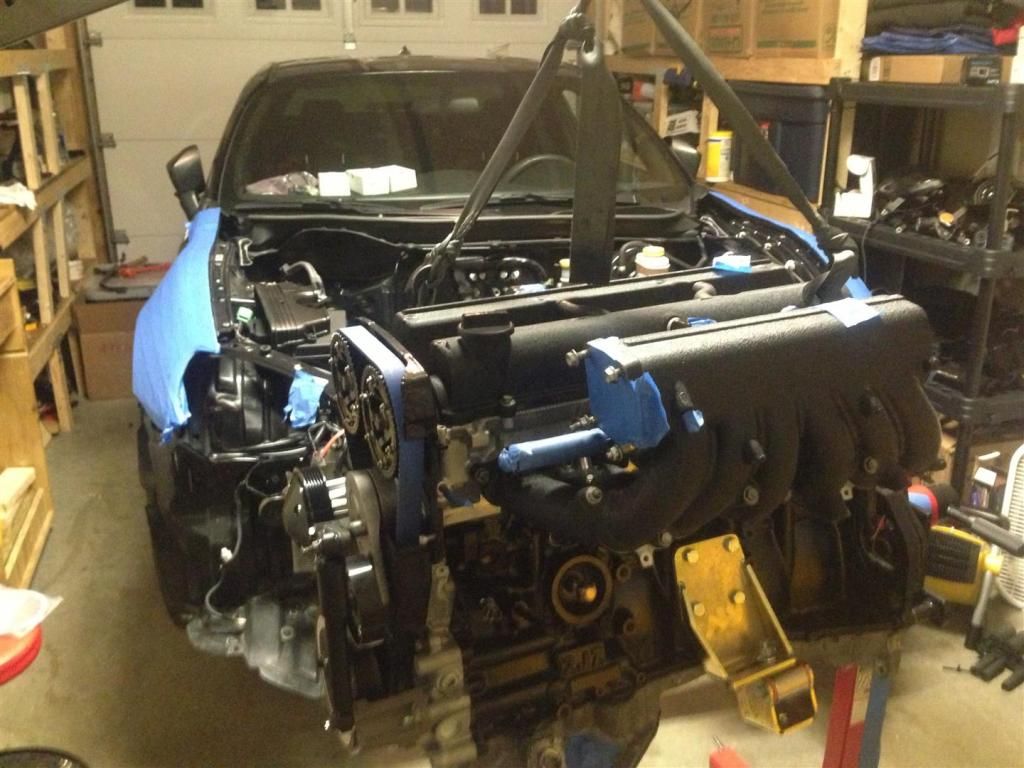

Installed.


All in all. The project took a lot more money than if I just bought ones already modified, but I learned a lot and now all the tools I need for another time. They will last a lifetime and I have the confidence to do more if need be.

[OmarGC]

So you get more practice I'll send you mine and you just send me yours in return lol

[Drift&Drag]

It is always wise to check your engine parts after getting them back from your powder coater. I found tiny portions of sand in the baffles which I am drilling out and performing a deep cleaning.

Thanks Alex for the write up. You're getting closer and closer in wrapping up with the build man!

[slicktop]

Originally Posted by Drift&Drag

It is always wise to check your engine parts after getting them back from your powder coater. I found tiny portions of sand in the baffles which I am drilling out and performing a deep cleaning.

Thanks Alex for the write up. You're getting closer and closer in wrapping up with the build man!

I prepped the parts and a buddy and I powdered them at his shop. I took water, brake cleaner and shop air when cleaning them out. I took extra caution cleaning them out to make sure all the media was removed before installing them. It got *EVERYWHERE*!! haha

[jflogerzi]

This thread is full of so much win!

[slicktop]

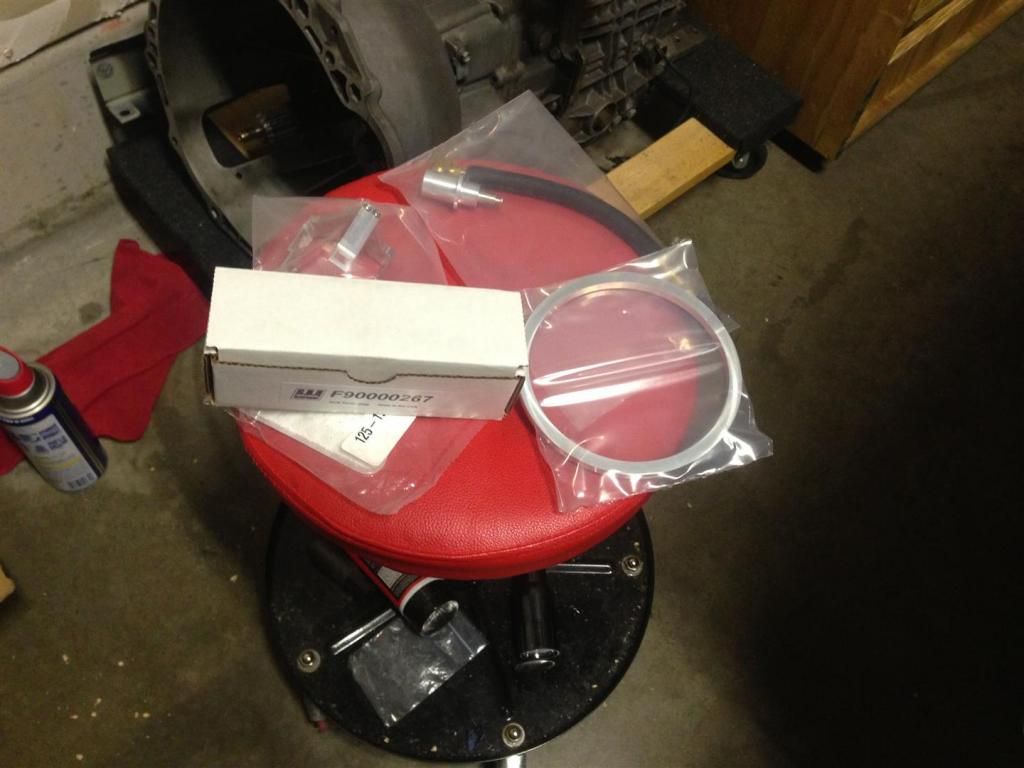

Got my clutch in today.

Decided to clean up the garage before I installed it and the trans only to find out it didn't come with flywheel bolts. Anyway, next week my fab guy is stopping by and we're going to work out plan of attack on a few things. Hope to have the motor started in two weeks or so. If there's some time off work available, I'm going to do that so I can bum rush the sound of hades.

Ordered a lot more things today as well. Stay tuned!

[Turbowned]

I made the mistake of not removing the baffles after powdercoating the valve covers on the 4AGZE engine I swapped in my MR2; the media caught inside completely ruined the crank and rod bearings and cam journals. Waste of an engine. Never again!

[slicktop]

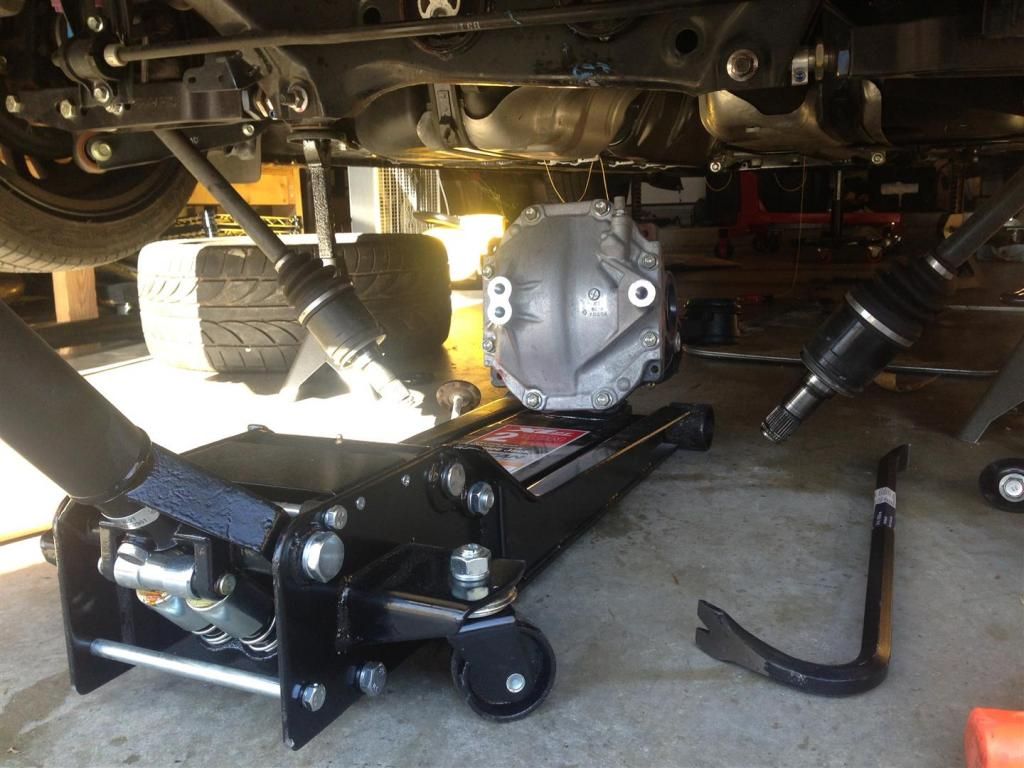

Small update. Decided to pull the stock differential. I really should upgrade the axles while I'm here, but I won't be able to drive the car hard for a few months so I'll just putt putt around until spring time.

Other than that, I'll install the M85 in the next few days.
