Hawk77FT · 01-31-2019, 08:54 PM

Hi all,

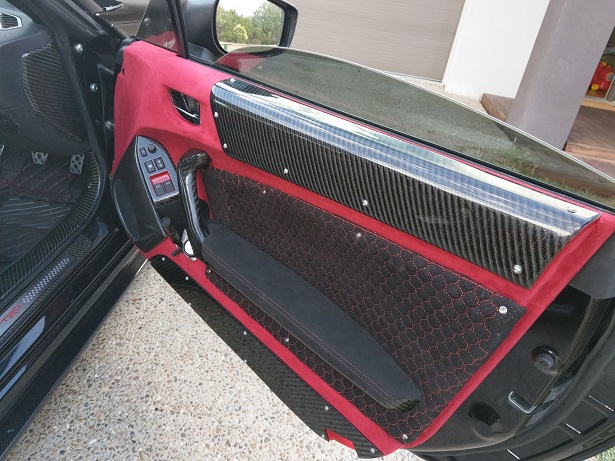

I thought I should share a picture of my door as part of my interior redesign.
I have been working with CF for the last 10 years..a bit of a love hate relationship, yet I am still spending my spare time in garage making things for my car.

This is only the door card, but there is plenty other small little things I have done inside. I will make a dedicated post with all the stuff that I have done so far. Hint: not one single part inside is not modified, done is alcantara or carbon fiber.

Name: 51182369_496120024127727_3789967068560883712_n.jpg
Views: 923
Size: 135.5 KB

Name: 51182369_496120024127727_3789967068560883712_n.jpg
Views: 923
Size: 135.5 KB

suzyj · 02-01-2019, 09:08 AM

With the exception of the CF bit, I had a friend who decked out the back of his panel van pretty much the same.

StraightOuttaCanadaEh · 02-01-2019, 09:15 AM

Must be a nice place to be in every day. I also focused on my interior mostly, but I lack scratch building skills, especially when it comes to upholstery etc, so I'm limited to what the aftermarket offers.

SuperTom · 02-01-2019, 09:21 AM

quality of work and materials looks great. Might be too busy though would have considered making the CF areas the same as the black alcantara.

I speak from experience and have redone my corvette interior 3 times. Tried to eventually tone it down with just leather/alcantara and some CF accents.

norcalpb · 02-01-2019, 04:47 PM

Did you drill into your armrest?

Dr. BRZ · 02-01-2019, 05:56 PM

It looks too 'womanly'

olsonpg · 02-01-2019, 06:26 PM

Quote:

Originally Posted by Hawk77FT

Hi all,
I thought I should share a picture of my door as part of my interior redesign.
I have been working with CF for the last 10 years..a bit of a love hate relationship, yet I am still spending my spare time in garage making things for my car.

This is only the door card, but there is plenty other small little things I have done inside. I will make a dedicated post with all the stuff that I have done so far. Hint: not one single part inside is not modified, done is alcantara or carbon fiber.

Attachment 174629

Carbon work looks absolutely stellar. I see you have a bunch of other carbon work done to the inside of the car. Would you mind showing us?? It's really nice to see something new on here.

Hawk77FT · 02-01-2019, 11:31 PM

Thanks guys. The whole theme is hexagon hence the hex stitching and hex carbon in some areas. I have been quite dissapointed with the looks of the interior and wanted something a bit nicer. Thought I will go black, but changed my mind and went red and few more bits and pieces. I love pagani, so I took some of the inspiration from their cars. Will post more pics soon

Hawk77FT · 02-03-2019, 09:18 PM

As I promised here are some more pics of the actual interior. There are some bits in pieces that are still in the works, but you get the picture. I am not really that far from finishing the whole god damn thing as I am tired of spending time in garage every damn weekend...who am i kidding..I love it.

Name: IMAG0359-20190204-100118942.jpg
Views: 592
Size: 131.9 KB

Name: IMAG0359-20190204-100118942.jpg
Views: 592
Size: 131.9 KB

Name: IMAG0362-20190204-100122608.jpg
Views: 609
Size: 137.5 KB

Name: IMAG0366-20190204-100117852.jpg
Views: 595
Size: 127.9 KB

Name: IMAG0365-20190204-100119474.jpg
Views: 589
Size: 119.7 KB

StraightOuttaCanadaEh · 02-04-2019, 01:07 AM

Ha! I definitely see the Pagani influence especially around the instrument binnacle

dhuang · 02-04-2019, 03:55 AM

I see the Pagani-ness too. Nice!

soundman98 · 02-04-2019, 06:50 PM

so did you decide that hexagonal carbon weave would be too much?

https://compositeenvisions.com/carbo...-7-2oz-244gsm/

Guest · 02-04-2019, 06:59 PM

Saw the interior in another thread and definitely thought: Pagani.

Hawk77FT · 02-04-2019, 07:22 PM

Quote:

Originally Posted by soundman98

so did you decide that hexagonal carbon weave would be too much?

https://compositeenvisions.com/carbo...-7-2oz-244gsm/

Actually there are couple of bits and pieces inside done in this weave. Speaker cover, roof panel. I love it, but there are a fair few bits in the car that are quite small, not really allowing the weave to show.
