07-22-2015, 01:12 AM | #58 | |
Member
Join Date: Jun 2015
Drives: 2013 BRZ
Location: Portland, OR, USA
Posts: 81
Thanks: 0
Thanked 37 Times in 18 Posts
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
|
Quote:
Can anyone show me on a diagram where the starter is? id like to put the multimeter on there and see if its getting a signal. Also does anyone elses car go into gear without starting? |
|
07-22-2015, 02:03 AM | #59 |
extra what?
Join Date: Sep 2014
Drives: a 13 e8h frs
Location: vantucky, wa
Posts: 32,087
Thanks: 52,530
Thanked 36,813 Times in 19,087 Posts
Mentioned: 1111 Post(s)
Tagged: 9 Thread(s)
|
__________________
|
07-22-2015, 02:49 AM | #60 |
hey you, yeah you <3
Join Date: Jul 2012
Drives: 2014 37J FR-S
Location: Monterey County, CA
Posts: 2,713
Thanks: 905
Thanked 1,258 Times in 809 Posts
Mentioned: 38 Post(s)
Tagged: 3 Thread(s)
|
Mind taking more pics overall of the car? This would be a good build. If not already.
Found it http://www.ft86club.com/forums/showthread.php?t=90987
__________________
Got my TRD wheels and TRD louvers. Thanks!!!
|
07-24-2015, 03:18 AM | #61 | |
Member
Join Date: Jun 2015
Drives: 2013 BRZ
Location: Portland, OR, USA
Posts: 81
Thanks: 0
Thanked 37 Times in 18 Posts
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
|
Quote:
|
|
The Following User Says Thank You to im_topher For This Useful Post: | Packofcrows (07-24-2015) |
07-24-2015, 03:36 AM | #62 |
I love my series blue brz
Join Date: Sep 2012
Drives: 2010 335d
Location: Diamond Bar, CA
Posts: 471
Thanks: 12
Thanked 243 Times in 109 Posts
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
|
Looks like your air box is missing. Where is maf sensor ? Without that, I don't think your car know how to breath
|
07-24-2015, 03:40 AM | #63 |
Senior Member
Join Date: Apr 2014
Drives: 2014 Pearl White BRZ
Location: USA
Posts: 764
Thanks: 123
Thanked 461 Times in 233 Posts
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
|
Dude - you have a decent size project going there! Good luck
|
07-25-2015, 12:17 PM | #64 | |
Senior Member
Join Date: Nov 2012
Drives: WRB BRZ Sport Tech
Location: Durham, Canada
Posts: 354
Thanks: 178
Thanked 110 Times in 64 Posts
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
|
Quote:
Typically you will have a straight wiring setup to the starter with a switching relay in between from the battery because that will be the biggest amp draw of the whole car! Edit: at second look, that blown link looks like it's for the starter alone, I'll look at my car and confirm! Edit 2: just checked it's a 140 amp fusible link for the alternator! |
|
07-25-2015, 12:26 PM | #65 |
Senior Member
Join Date: Nov 2012
Drives: WRB BRZ Sport Tech
Location: Durham, Canada
Posts: 354
Thanks: 178
Thanked 110 Times in 64 Posts
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
|
|
07-25-2015, 12:33 PM | #66 |
Banned
Join Date: Sep 2013
Drives: 2013 GBS BRZ Limited
Location: Colorado
Posts: 1,925
Thanks: 627
Thanked 1,445 Times in 711 Posts
Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
|
If you are a fuse maybe...
12VDC will not hurt a person. Dont believe me? Go ahead and touch the + and - battery terminals with your hands and let me know what happens. You can even lick them first. We tend to think that it can hurt us when we see sparks. It is more likely to hurt us when we jump to get away from an arc (kind of like a spider for me). Not exactly what I was thinking, but I'll go with that |
The Following User Says Thank You to stugray For This Useful Post: | Ultramaroon (07-25-2015) |
07-25-2015, 12:34 PM | #67 |
Senior Member
Join Date: Nov 2012
Drives: WRB BRZ Sport Tech
Location: Durham, Canada
Posts: 354
Thanks: 178
Thanked 110 Times in 64 Posts
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
|
Check the AT 7.5 amp fuse near the top right of the diagram, could have something to do with the computer I detect it's in park or neutral to start.
|
07-25-2015, 03:01 PM | #68 |
Banned
Join Date: Sep 2013
Drives: 2013 GBS BRZ Limited
Location: Colorado
Posts: 1,925
Thanks: 627
Thanked 1,445 Times in 711 Posts
Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
|
In my business the first thing to do is make a list of all the things that need to be true for the "system to reach a desired state" (starter cranks).

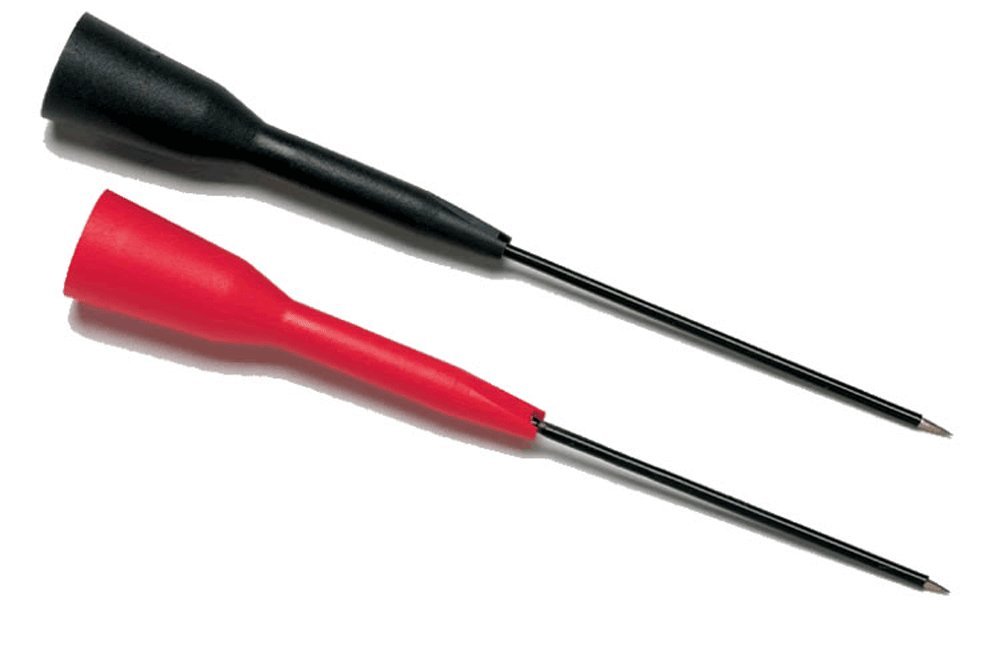

Then verify (dont assume) that each of these things are true and that it is being reported as true to the ECU. This would usually require probing the signals that the ECU sees while exercising every option. At work we have a Break Out Box (BOB) for every type of connector on every box in the system, so doing this kind of test is trivial. For us hobbyists, probing every signal in the ECU connector while leaving it connected is difficult. The pros would use a "Insulation displacement probe" which is a fancy way of saying "poke the DMM probe through the wire insulation". The professional probes have a clip that supports the wire and a needle that penetrates the insulation. If you could make yourself one of these it might help. Then probe every signal that the ECU uses to verify "OK to start" and do not make any assumptions. The #1 cause of failed electrical troubleshooting is making incorrect assumptions because you dont have the tools to verify. That and - Write shit down :-) |
07-25-2015, 03:34 PM | #69 |
...Just add nauseum
Join Date: Jan 2015
Drives: 2003 (AP1) S2000
Location: Miami, FL
Posts: 545
Thanks: 310
Thanked 784 Times in 335 Posts
Mentioned: 19 Post(s)
Tagged: 1 Thread(s)
|
Doesn't matter. It will start in limp mode with MAF disconnected completely
__________________
There are many ways to displace.
-Spartarus |
The Following User Says Thank You to Spartarus For This Useful Post: | Sportsguy83 (11-09-2015) |
|
|
|
|
