STI Cluster Install
1. First remove the Phillip's screw.

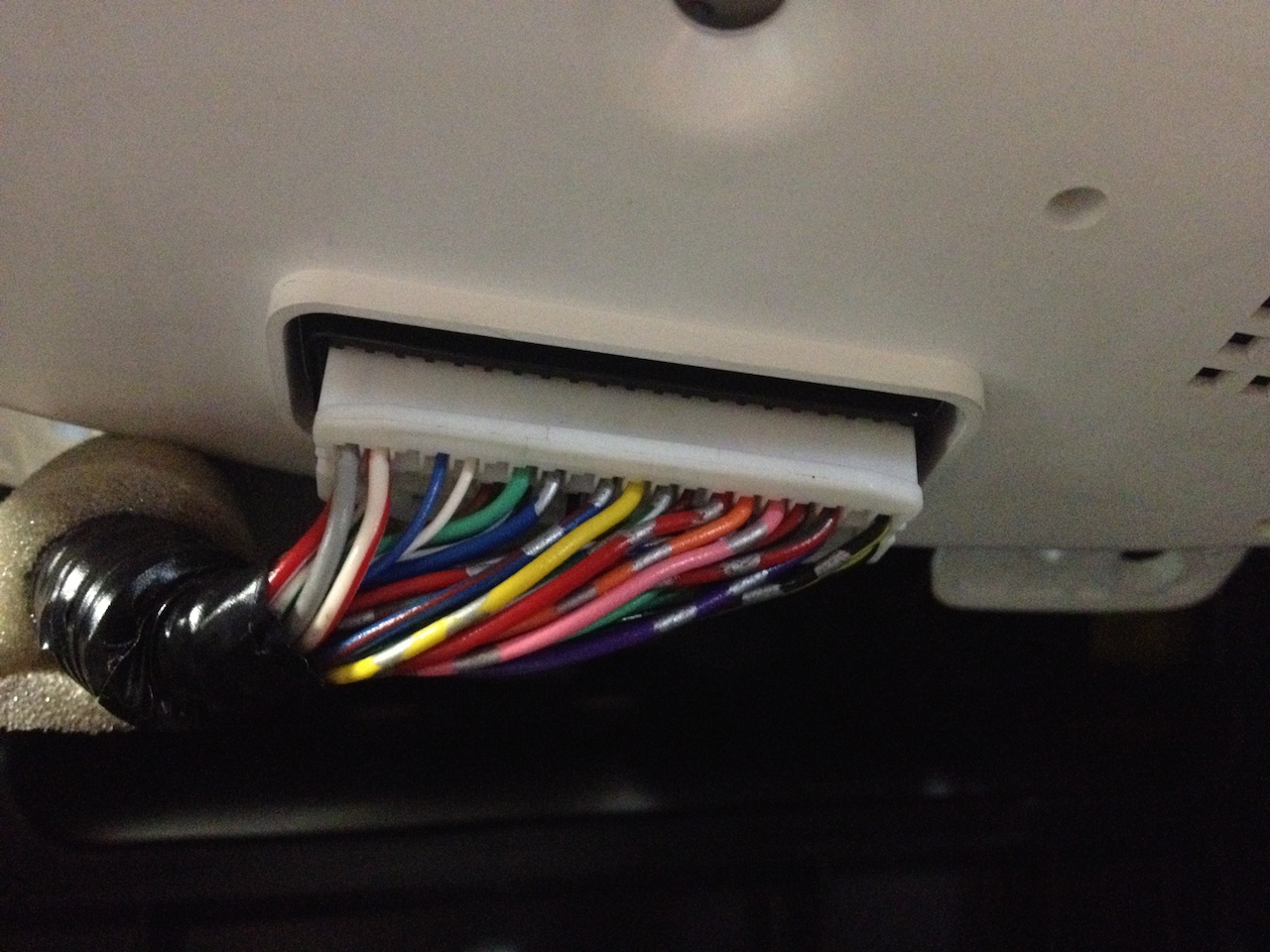

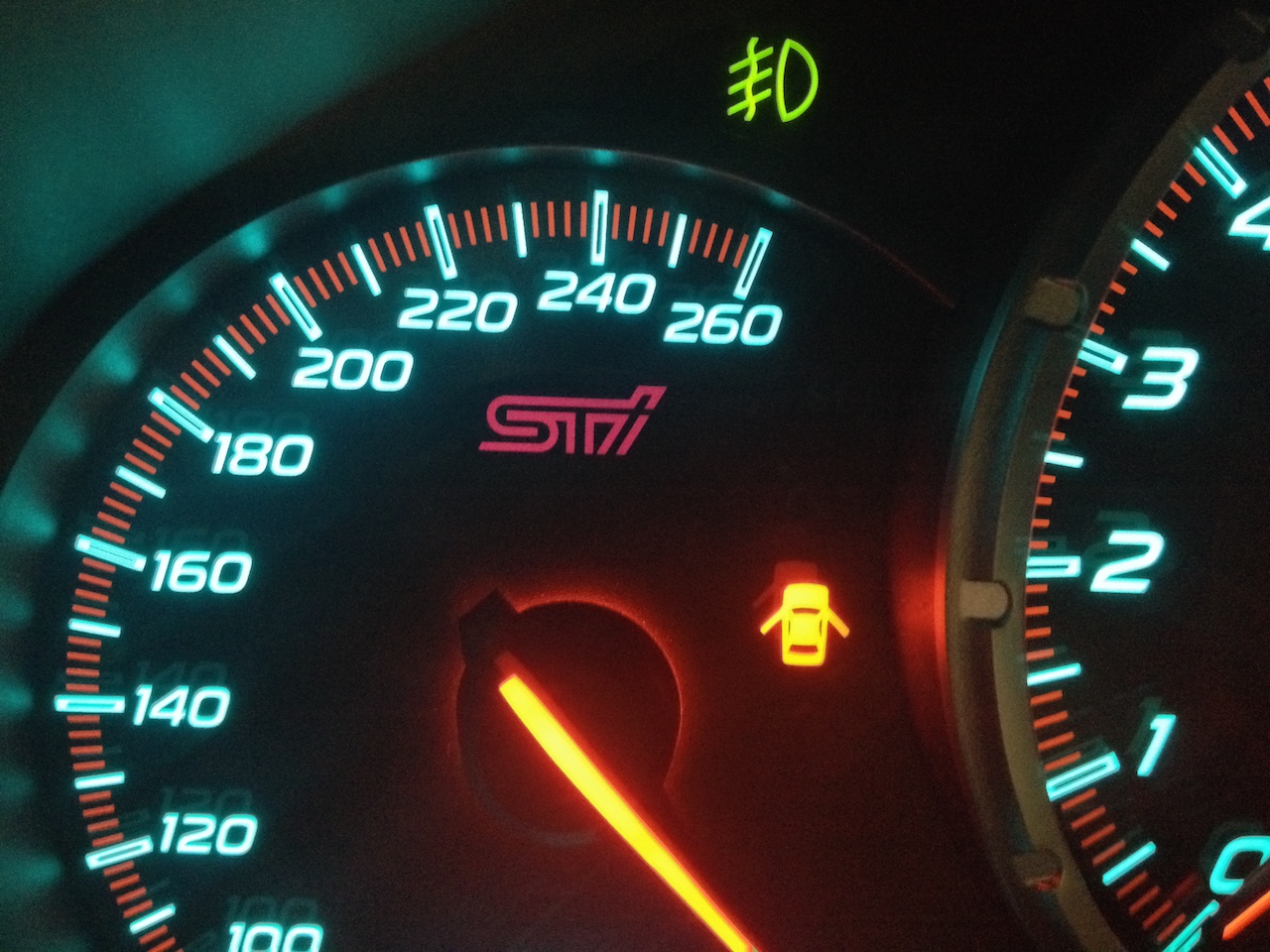

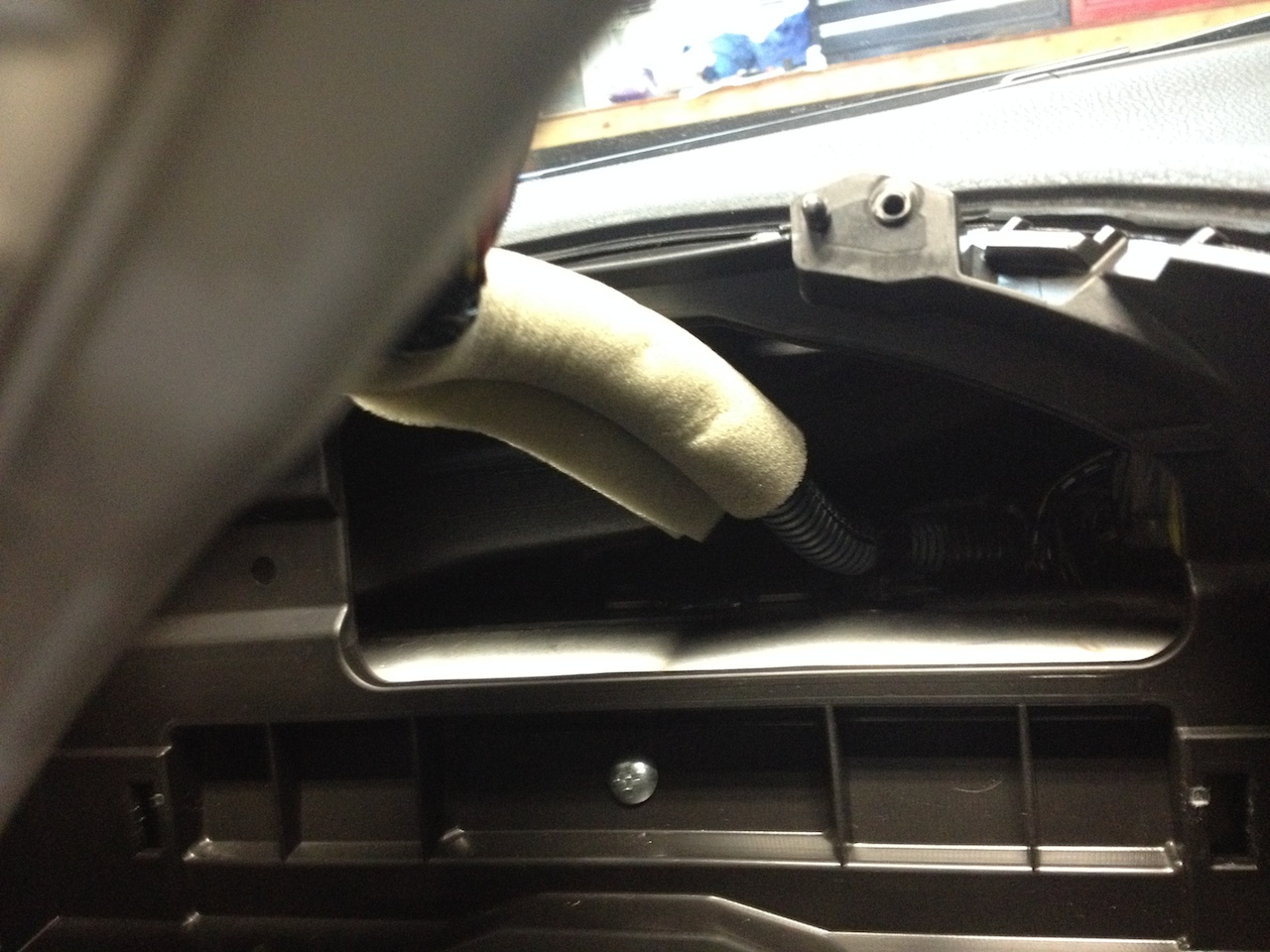

2. Lift the gauge cluster hood at 45 degree. 3. Pull hard the cluster surround towards you. No need to unplug the ODO Trip connector. 4. Remove the 2 screws located on top of the cluster. 5. Pull the cluster and unplug the connector. 6. Install the new cluster. 7. Reinstall the cluster connector. You will need to push the cable back into that hole. 8. Follow the instructions in reverse to reinstall everything. The gear indicator, shift light and shift indicator works perfectly. You don't need to stop at your Subaru dealer to pair it with onboard key radio code. It is plug and play for the model with the push start. As for the odometer, you need Subaru to but it back. If the cluster is already paired with another vehicle, I don't think you can paired it back. You will have to take it apart and transfer the face and needle to your old one. I was also unable to switch from MPH to KM/H, C to F and mp/g to km/l. The top button is now useless. Last edited by ricerocket93; 02-24-2017 at 01:54 PM. Reason: review |
![]() |
![]() |
![]() |
#2 |
FT86Club Vancouver
Join Date: Jun 2012
Drives: BRZ Sport-Tech; Drove: MR-S, AE86
Location: Vancouver, BC
Posts: 2,532
Thanks: 391
Thanked 1,178 Times in 633 Posts
Mentioned: 16 Post(s)
Tagged: 2 Thread(s)
|
Nice!
So the only problem so far is that you cannot switch from KM to Miles? Was also thinking of getting this... When you say Plug and Play, does it still read your original KM?
__________________
1984 AE86 BT 20V 5MT 2007-2012
2000 MR-S 5MT 2010-2012 2013 BRZ Sport-Tech 6AT Since '12 (OEM+ STI tS Build) 2015 Lexus IS250 AWD F-Sport 2 2015-2018 2018 Lexus NX300 F-Sport 3 Since '18 |
![]() |
![]() |
![]() |
#3 |
Supra Senior Member
Join Date: Oct 2012
Drives: AE86 & BRZ
Location: Merica maryland
Posts: 877
Thanks: 717
Thanked 491 Times in 288 Posts
Mentioned: 38 Post(s)
Tagged: 2 Thread(s)
|
sexy as phoooooooooo. Thanks man. I might have to take a stab at this.
__________________
|
![]() |
![]() |
![]() |
#4 |
Senior Member
Join Date: Dec 2012
Drives: FRS
Location: Buena park
Posts: 216
Thanks: 28
Thanked 30 Times in 24 Posts
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
|
There's a gear indicator option on the FRS so I would assume it's just turned on, but that cluster looks great! Not sure if I would do it just got the STi logo though
|
![]() |
![]() |
![]() |
#6 |
FT86Club Vancouver
Join Date: Jun 2012
Drives: BRZ Sport-Tech; Drove: MR-S, AE86
Location: Vancouver, BC
Posts: 2,532
Thanks: 391
Thanked 1,178 Times in 633 Posts
Mentioned: 16 Post(s)
Tagged: 2 Thread(s)
|
This means you will HAVE to go back to the dealership to get it reprogrammed so the cluster matches the ACTUAL mileage in your ECU...
__________________
1984 AE86 BT 20V 5MT 2007-2012
2000 MR-S 5MT 2010-2012 2013 BRZ Sport-Tech 6AT Since '12 (OEM+ STI tS Build) 2015 Lexus IS250 AWD F-Sport 2 2015-2018 2018 Lexus NX300 F-Sport 3 Since '18 |
![]() |
![]() |
The Following User Says Thank You to DaJo For This Useful Post: | Trap63 (04-15-2014) |
![]() |
#7 |
Senior Member
Join Date: Mar 2013
Drives: whiteout gt86 2015 IS350fsport
Location: northern kentucky. cincy
Posts: 1,931
Thanks: 2,154
Thanked 697 Times in 437 Posts
Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
|
Do you think they would actually do it?
__________________
INSTAGRAM @Rcf_700 www.youtube.com/boostindub
|
![]() |
![]() |
![]() |
#8 |
FT86Club Vancouver
Join Date: Jun 2012
Drives: BRZ Sport-Tech; Drove: MR-S, AE86
Location: Vancouver, BC
Posts: 2,532
Thanks: 391
Thanked 1,178 Times in 633 Posts
Mentioned: 16 Post(s)
Tagged: 2 Thread(s)
|
Probably, but at a cost... Lol
You know how stealerships are...
__________________
1984 AE86 BT 20V 5MT 2007-2012
2000 MR-S 5MT 2010-2012 2013 BRZ Sport-Tech 6AT Since '12 (OEM+ STI tS Build) 2015 Lexus IS250 AWD F-Sport 2 2015-2018 2018 Lexus NX300 F-Sport 3 Since '18 |
![]() |
![]() |
The Following User Says Thank You to DaJo For This Useful Post: | charged86 (04-14-2014) |
![]() |
#9 |
Yup.
Join Date: Jun 2013
Drives: MT Subaru BRZ '13
Location: Atlanta, GA
Posts: 236
Thanks: 93
Thanked 97 Times in 71 Posts
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
|
It's okay, just drive the amount of miles that was on your old ECU. Bam, problem solved.
![]() |
![]() |
![]() |
The Following User Says Thank You to mikeTee For This Useful Post: | MemphisR (04-15-2014) |
![]() |
#10 |
Senior Member
Join Date: Oct 2013
Drives: 4-Runner Sport - 13' BRZ SportTech
Location: Winnipeg
Posts: 1,395
Thanks: 253
Thanked 839 Times in 459 Posts
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
|
Thanks for this! I've been thinking of getting one for a while, but wasn't sure if it was PnP or not.
Has anyone contacted the dealer to see if they can change the odometer to match the vehicle? I've worked for a Toyota dealer for a number of years and remember a tech telling me that cluster odometers are independent of the ECU. I could be mistaken though
__________________
Top Tier Imports - Check out my build journal HERE
|
![]() |
![]() |
![]() |
#11 |
Senior Member
Join Date: Jul 2012
Drives: DAT Rally Blue BRZ
Location: SoCal
Posts: 770
Thanks: 1,431
Thanked 234 Times in 166 Posts
Mentioned: 5 Post(s)
Tagged: 2 Thread(s)
|
Might as well get a frs gauge cluster instead or hopefully find someone with the same mileage and swap
Last edited by SuperDave; 04-16-2014 at 08:18 AM. |
![]() |
![]() |
![]() |
#12 |
Member
Join Date: Oct 2012
Drives: Grey GT
Location: Sydney
Posts: 74
Thanks: 40
Thanked 8 Times in 8 Posts
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
|
which STi cluster is that?
|
![]() |
![]() |
![]() |
#13 |
FT86Club Vancouver
Join Date: Jun 2012
Drives: BRZ Sport-Tech; Drove: MR-S, AE86
Location: Vancouver, BC
Posts: 2,532
Thanks: 391
Thanked 1,178 Times in 633 Posts
Mentioned: 16 Post(s)
Tagged: 2 Thread(s)
|
__________________
1984 AE86 BT 20V 5MT 2007-2012
2000 MR-S 5MT 2010-2012 2013 BRZ Sport-Tech 6AT Since '12 (OEM+ STI tS Build) 2015 Lexus IS250 AWD F-Sport 2 2015-2018 2018 Lexus NX300 F-Sport 3 Since '18 |
![]() |
![]() |
![]() |
#14 |
Trust me, I'm the Doctor
Join Date: Nov 2013
Drives: 2019 WRX Limited (WRB)
Location: North East PA
Posts: 2,723
Thanks: 4,304
Thanked 1,251 Times in 781 Posts
Mentioned: 33 Post(s)
Tagged: 1 Thread(s)
|
Maybe it doesn't switch because the tS clusters aren't able to since they're not sold in standard-unit countries like the US.
__________________
Subies Of Blessed Memory: '05 Forester, '08 WRX, '13 STi
Daily Driver: 2014 BRZ 6MT Limited ^GT5 Replay Photo Mode^ |
![]() |
![]() |
|
|
![]() |
|
|
![]() |
||||
