TwinFoot Lamp H7017CA1000 - SOLVED - NOV.2013 - Toyota GR86, 86, FR-S and Subaru BRZ Forum & Owners Community

Trap63 · 07-15-2013, 03:21 PM

Hi, guys....here is unpacking of genuine Twin foot Led for Subaru BRZ coming from Japanparts....
So, the big trouble is where wiring control unit harness (for the led harness no trouble!)
Is there guy that read and understand Japanese?
I enclose some pics and .pdf too.
I am wondering it's impossible they don't release english version!!!! The Impreza (H7010FG000) type is available in US version!!!! (but central unit harness seems to be very different). Impreza's hole is 16 mm, this one 18 mm.
UPDATE 07/17/2013
SoJ send me install guide as this part usually become part of dealer install action. Therefore they don't enclose in packaging.
Download attachment.
MANDATORY Harness IV (http://www.japanparts.com/db/parts_d...&SEARCH_page=2) , you can find @Japanparts. So you must buy both twinfoot and accessory harness

illmatic · 07-15-2013, 03:35 PM

I have the USDM version that is plug and play. H701SCA100 for the blue version.

Official install instructions.
http://stis.subaru.com/proxy/70910/p...H701SCA100.pdf

Trap63 · 07-15-2013, 03:41 PM

Quote:

Originally Posted by illmatic

I have the USDM version that is plug and play. H701SCA100 for the blue version.

Official install instructions.
http://stis.subaru.com/proxy/70910/p...H701SCA100.pdf

...thanks, quite different...

Trap63 · 07-15-2013, 04:09 PM

I try now to share request on Facebook, hoping to find solution in a clear translation.

My FB profile https://www.facebook.com/sstrap

http://www.japanparts.com/db/parts_d...&SEARCH_page=2

Trap63 · 07-17-2013, 04:53 AM

Quote:

Originally Posted by illmatic

I have the USDM version that is plug and play. H701SCA100 for the blue version.

Official install instructions.
http://stis.subaru.com/proxy/70910/p...H701SCA100.pdf

Solved! the JDM fits on all BRZ, requirements: harness IV as described on first post.

Trap63 · 07-30-2013, 02:59 PM

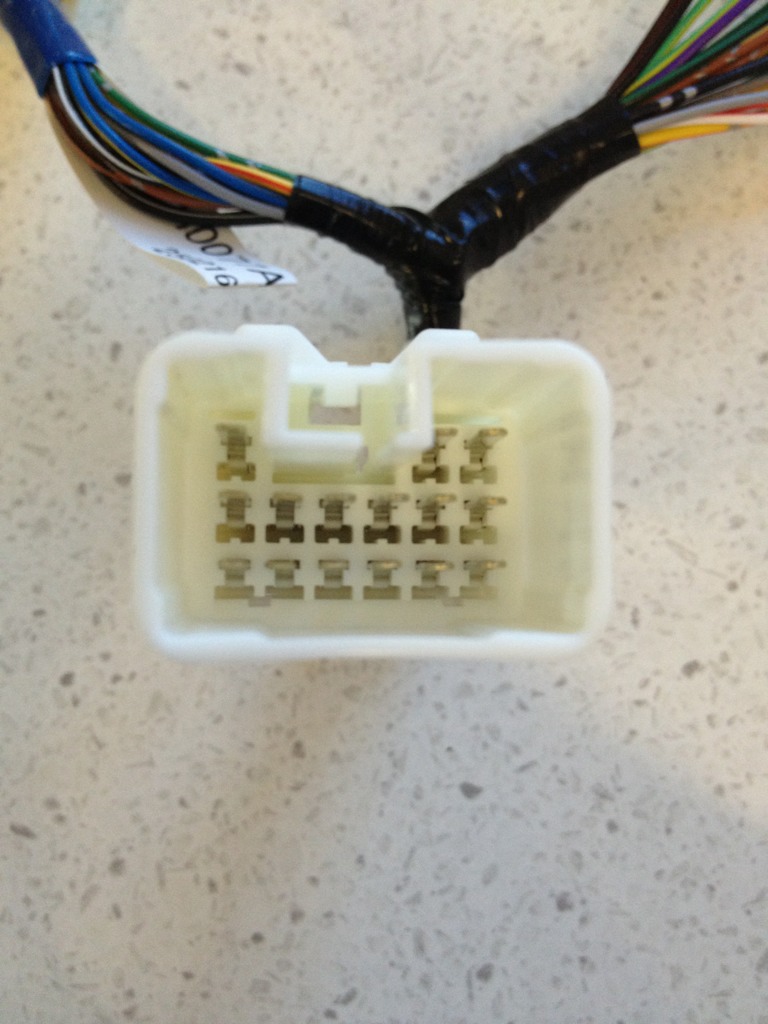

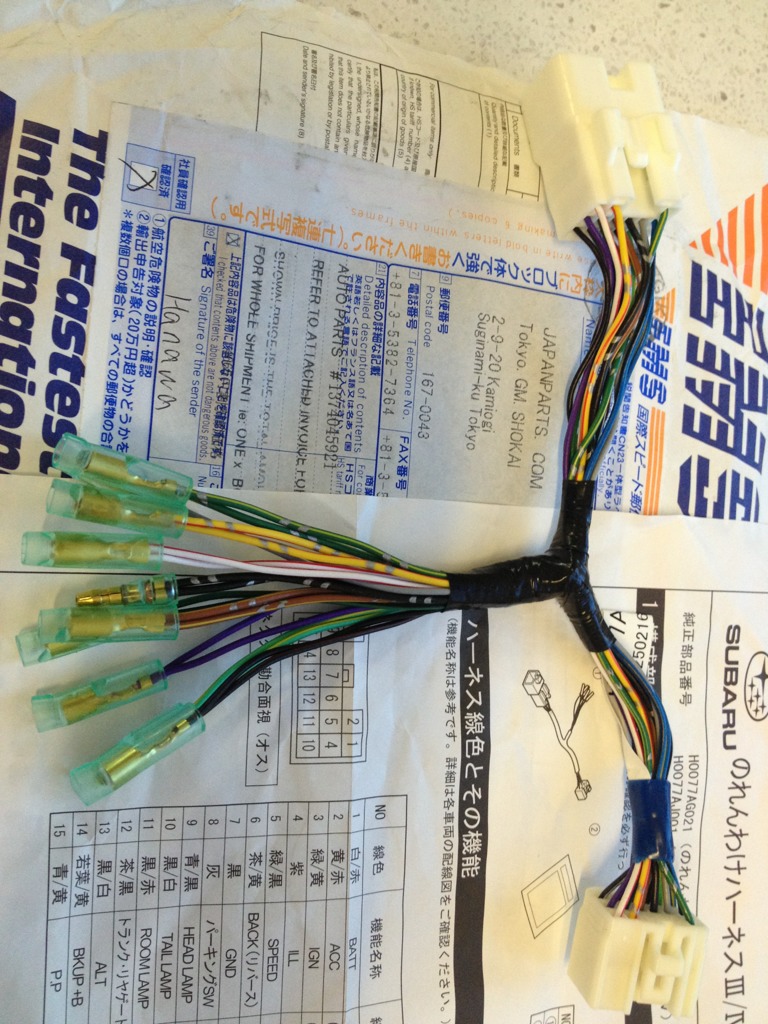

here is the required mandatory harness!

Name: ImageUploadedByTapatalk1375207002.798387.jpg
Views: 1768
Size: 249.5 KB

Name: ImageUploadedByTapatalk1375207029.040997.jpg
Views: 1729
Size: 193.2 KB

Name: ImageUploadedByTapatalk1375207044.421719.jpg
Views: 1712
Size: 155.9 KB

Name: ImageUploadedByTapatalk1375207077.282066.jpg
Views: 1739
Size: 165.0 KB

Name: ImageUploadedByTapatalk1375207115.250874.jpg
Views: 1624
Size: 127.7 KB

Name: ImageUploadedByTapatalk1375207127.874487.jpg
Views: 1694
Size: 138.8 KB

Name: ImageUploadedByTapatalk1375207166.280933.jpg
Views: 1664
Size: 176.4 KB

Name: ImageUploadedByTapatalk1375207179.486949.jpg
Views: 1655
Size: 174.2 KB

Sent by iPhone with Tapatalk

Trap63 · 08-06-2013, 05:24 AM

NOT SOLVED.
Harness has come but the car side of this doesn't provide pins no. 11 and no.14

mmontes · 08-09-2013, 08:08 PM

DAMN IT!! WTF!! i want to do this

mmontes · 08-09-2013, 08:10 PM

are pins 11 and 14 the positive and negative for the led?

Trap63 · 08-10-2013, 04:30 AM

Quote:

Originally Posted by mmontes

are pins 11 and 14 the positive and negative for the led?

no, they aren't. Ground is always on module. I think that they might be map lamp and door courtesy lamp positive. As the module switch positive to ON to alternate blue led and white. I try now with tester. Last night I tried with tester (lamp) and I saw that if you wire with positive on pin 11, it switch on blue light.

Trap63 · 08-10-2013, 06:30 AM

Try now.....no way. Room Lamp (pin 11) fits in door light courtesy on negative, but wiring BKUp to pin2 (B+) of map light, white led doesn't go in OFF.

So it needs to identify what is this "BKUP (+B)" - pin 14. In wiring schema there is no reference to this definition.

mmontes · 08-11-2013, 07:46 AM

Quote:

Originally Posted by Trap63

Try now.....no way. Room Lamp (pin 11) fits in door light courtesy on negative, but wiring BKUp to pin2 (B+) of map light, white led doesn't go in OFF.

So it needs to identify what is this "BKUP (+B)" - pin 14. In wiring schema there is no reference to this definition.

Might be for back up camera +? Just a guess tho?
Put the car in reverse, white led turns on then its ment to power a camera when ever you want to install that lol

Trap63 · 08-11-2013, 01:24 PM

Quote:

Originally Posted by mmontes

Might be for back up camera +? Just a guess tho?
Put the car in reverse, white led turns on then its ment to power a camera when ever you want to install that lol

I am afraid to break door map light dimmer (but no error on TIS)........if no help come from Japan these lamps are impossible to install.

mikeTee · 08-11-2013, 01:30 PM

You should probably change the title of the thread back to not solved. :l
