Sport/Snow button pin outs
Hey there. I am looking to use my snow button for a custom switch. Anyone have a diagram showing what wires are for the snow button? Or if a MT could take a pic of the connector to their vsc and trac plug it would really narrow it down as you would be missing wires for sport and snow so I have a 50/50 shot the first try. lol
TIA all.
__________________
  "Just like how a strut bar somehow enables you to corner 20MPH faster around a cloverleaf on-ramp, when the reality is, you can do it already but you just don't have to balls to do it." - CSG David |
|
|
|
05-21-2013, 12:42 PM
|
#2 |
|
That guy
Join Date: Feb 2012
Drives: Ultramarine mt FR-S
Location: chicago
Posts: 2,370
Thanks: 692
Thanked 1,389 Times in 730 Posts
Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
|
There are a few in the Kartboy short shifter install thread..
    I'll see what else I can dig up.
__________________
Ultramarine mt FR-S
P&L stage 1 turbo Prime Motoring Flex fuel Jr Tuned 506whp @17psi (e73) |
|
|
|
|
05-21-2013, 01:04 PM
|
#3 |
|
Senior Member
Join Date: Sep 2012
Drives: Subaru BRZ 2013 - SWP 6MT
Location: Toronto
Posts: 354
Thanks: 97
Thanked 42 Times in 25 Posts
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
|
http://www.ebay.ca/itm/360652427475?...84.m1439.l2648

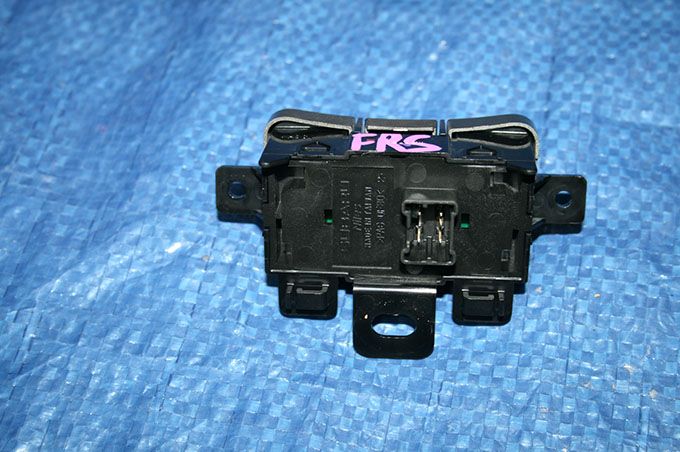

Just bought this, check pics if you wanna see also. I have a manual brz, but gonna buy this set of buttons and play around to see if I can do the exact same. I am planning on using it for footwell lighting 'snow mode' is set footwell to on with vehicle, "sport mode" is set to on with dome light. I have no electrical skills so this will be fun. What are you planning on using it for?
__________________
|
|
|
|
|
05-21-2013, 01:08 PM
|
#4 | |
|
That guy
Join Date: Feb 2012
Drives: Ultramarine mt FR-S
Location: chicago
Posts: 2,370
Thanks: 692
Thanked 1,389 Times in 730 Posts
Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
|
Quote:
__________________
Ultramarine mt FR-S
P&L stage 1 turbo Prime Motoring Flex fuel Jr Tuned 506whp @17psi (e73) |
|
|
|
|
|
05-21-2013, 02:52 PM
|
#5 |
|
Senior Member
Join Date: Jan 2013
Drives: 2013 Asphalt FR-S
Location: Orange County
Posts: 1,639
Thanks: 632
Thanked 982 Times in 537 Posts
Mentioned: 100 Post(s)
Tagged: 0 Thread(s)
|
Fairly sure those are canbus switches so you may not have much luck if any at all getting them to do something else.
Attached is what I could find the FSM real quick... A19 is the TCM.
__________________
~Namaste~ Last edited by mad_sb; 05-21-2013 at 03:14 PM. |
|
|
|
| The Following User Says Thank You to mad_sb For This Useful Post: | finch1750 (05-21-2013) |
|
04-14-2014, 01:18 PM
|
#7 |
|
Undisputed El Presidente
Join Date: Jun 2012
Drives: Zenki 37J ZN6
Location: Stockton, CA
Posts: 11,593
Thanks: 9,403
Thanked 9,411 Times in 5,270 Posts
Mentioned: 374 Post(s)
Tagged: 33 Thread(s)
|
I ended up going a different route as the more I had issues messing with other wiring/control modules I decided not to screw with it.
__________________
"Just like how a strut bar somehow enables you to corner 20MPH faster around a cloverleaf on-ramp, when the reality is, you can do it already but you just don't have to balls to do it." - CSG David |
|
|
|
|
05-16-2014, 09:36 AM
|
#8 |
|
Senior Member
Join Date: Apr 2013
Drives: DGM BRZ 6MT
Location: San Francisco, CA
Posts: 758
Thanks: 223
Thanked 359 Times in 195 Posts
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
|
Oops
__________________
Last edited by TM; 05-16-2014 at 06:21 PM. Reason: Don't know how I ended up posting on this thread. |
|
|
|
|
06-15-2014, 07:26 PM
|
#9 |
|
Senior Member
Join Date: Sep 2012
Drives: Subaru BRZ 2013 - SWP 6MT
Location: Toronto
Posts: 354
Thanks: 97
Thanked 42 Times in 25 Posts
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
|
Sadly I haven't had time to work mine. No luck, if I was more electrically inclined i'm sure I would have done something. I am now thinking of making that button as a kill switch(never going to use it but figure what the hell)
__________________
|
|
|
|
|
06-08-2022, 05:31 AM
|
#10 |
|
Senior Member
Join Date: Nov 2018
Drives: Subaru BRZ 2017
Location: New Jersey
Posts: 205
Thanks: 3
Thanked 43 Times in 29 Posts
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
|
Sorry for reviving old thread..Just for future reference:
Why don't you use canbus ? Muchh easier and painfree. I'm actually working on having my exhaust valve open up when the sport mode is activated on my AT. (those catback with varex valve) with combination of arduino, canbus shield and rf transmitter (or relay). It's plugged right into the canbus data 6 pin plug behind the stereo |
|
|
|
|
|
|
|
|
|
|
