Tatsu333's 2020 BRZ Sport Tech RS

[Tatsu333]

Well, they've been a long time coming, but with the help of a good friend of mine, I finally got some of the bigger items on my list installed. These have been sitting in "inventory" in my attic for years now because I was really hesitant about doing this work on jackstands in my garage, and boy, am I glad I waited until the opportunity came to do it on my friend's hoist with his help!

Here are some pictures:

Engine support bar in place to secure the engine from above (we ended up only using the rear engine hoist point since the transmission mount was still going to be attached and we were also going to be supporting from below, so removing the throttle body, etc. wasn't really necessary):




Transmission jack with wood block supporting the engine via the oil pan from below as a backup (subframe and OEM headers already removed):




OEM headers out of the car - still in perfect shape (as expected with my car only having 19,000 kms on it over the last four and a quarter years...LOL.
That said, I was a bit shocked at the amount of corrosion on some parts of the chassis given the low mileage):

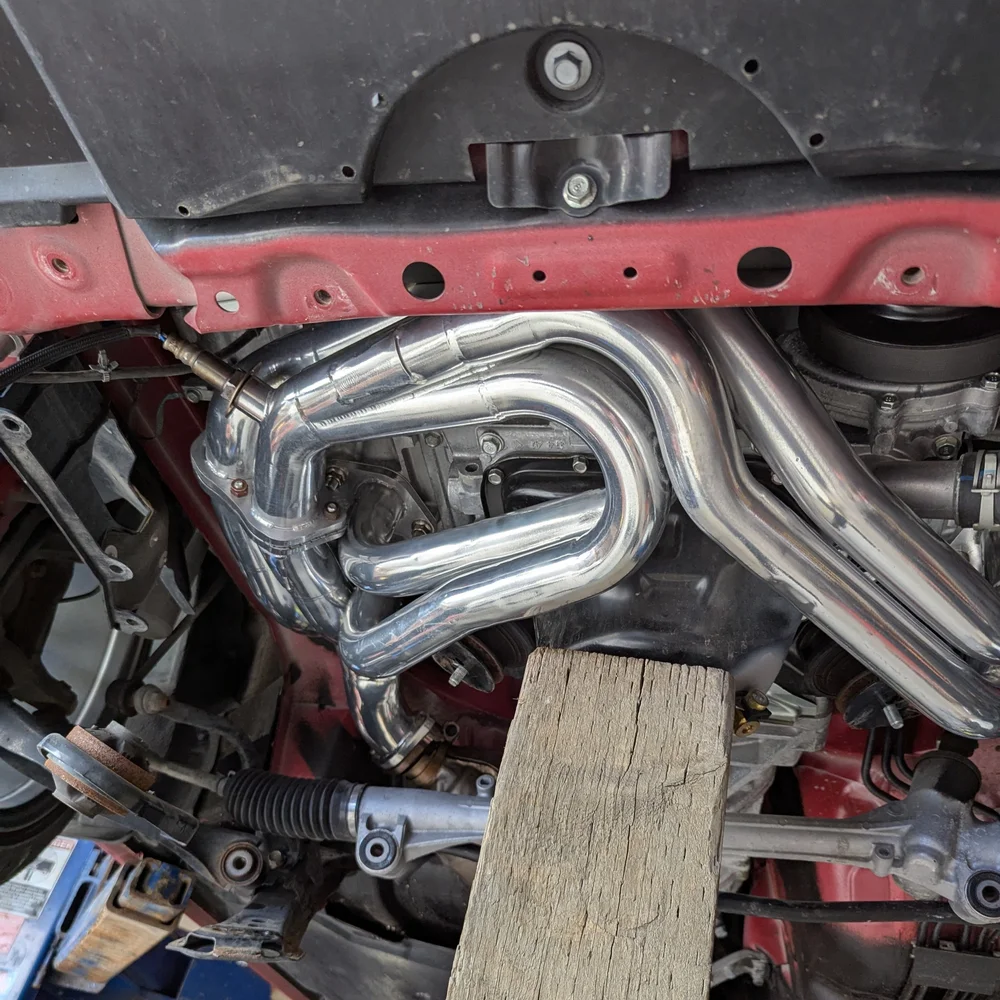

Ceramic-coated ACE A350 headers in place - doing this with the subframe out made this SUPER easy:




2018 tS subframe and flexible draw stiffener installed:

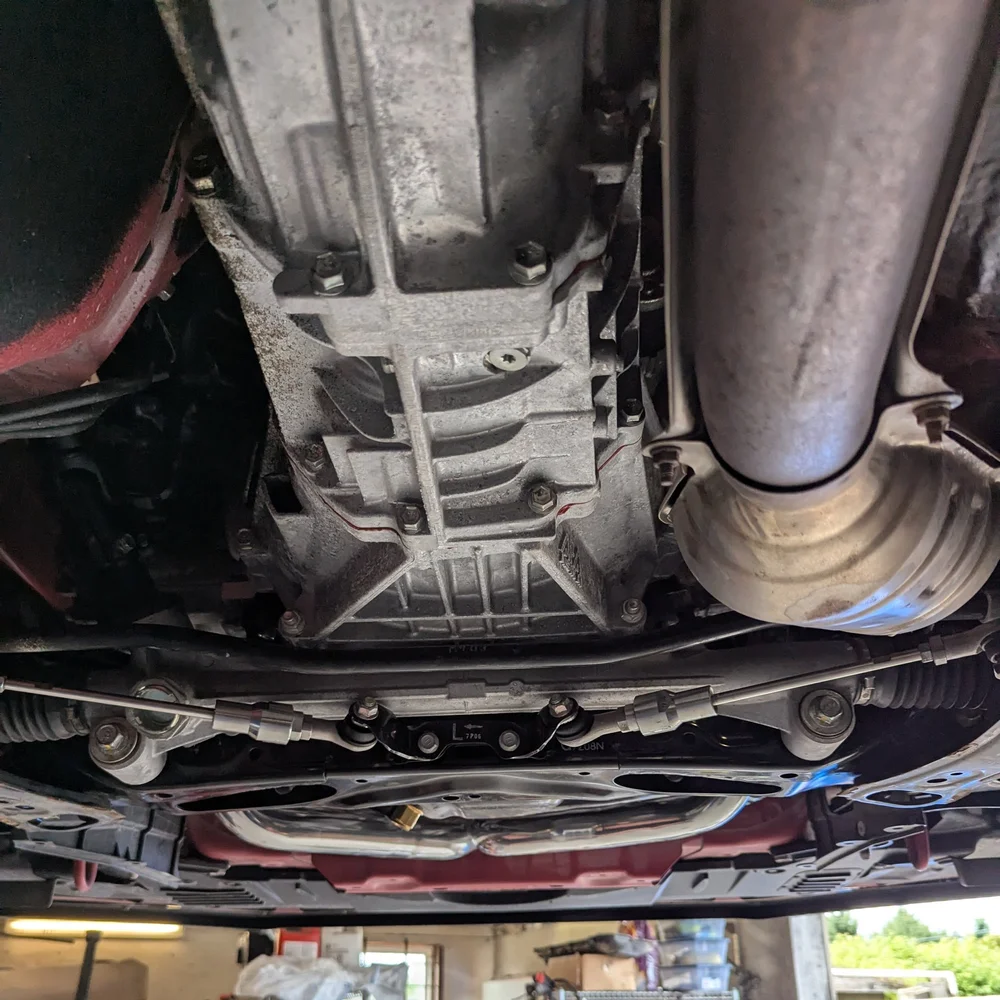

Shot showing everything installed before replacing the underbody panels:




ACE A350 header first impressions

Without having tuning done, I know I'm not getting everything I can out of the header, but my budget won't allow for that yet. I may go back to tinkering with some self-tuning to see if I can dial things in a bit better myself.

That said, first impression is that it sounds and feels smoother overall than with the OEM header, and the power delivery feels a bit more linear. I suspect I'm losing a bit of power at the very bottom end vs. OEM so I'm not feeling the first torque "hump" anymore. Hard to say via butt dyno alone, but it feels like it pulls more consistently through the mid-range.

I will probably see about getting the car back on the dyno for a pull on the stock tune to compare with the pre-header numbers around the end of June.

The reports from folks saying the header with stock front pipe and cat back were as quiet as stock are (thankfully) accurate! There's a bit more of a growl / throatiness to the tone at higher throttle openings under load, but other than that, I don't feel there's much difference in sound at all, which is exactly what I was hoping for.


tS subframe / flexible draw stiffener first impressions

Not really a whole lot to say here because I haven't had the opportunity to push the car hard on any interesting roads (it was just a 90 minute, bumper-to-bumper slog back home after the install), but it did seem to wander a little less on the freeway. That's probably just in my head though.

I don't expect to feel any real difference until I also have the flexible V-bars in, at which point I'm hoping for a bit more turn-in responsiveness along with controlled bump compliance mid-turn. The car is already so good at those things, though, it is surely going to be just a matter of degrees. The main point with these mods for me is simply to put my car in "tS spec" without the big rear wing of the 2018's or the single colour choice of the 2020's.

In any event, I'm looking forward to getting my car out on the twisties soon!


Other notes

The other thing we were looking into while we had the car on the hoist was a light knocking in the suspension I was getting at low speeds over bumps, and that turned out to be the well-known issue with KW-based coilovers of the front swaybar / end links lightly contacting the control arms. I'll be looking into some other end link options (as discussed in this thread) to resolve this issue over the summer.

[Tatsu333]

OK - after a few days driving it around, I think my initial impression that it has lost a little bit of very low end torque (idle - 2,500 rpm or so) but is more linear overall is accurate. It does feel a bit stronger even untuned in the midrange (3,000 - 5,000 rpm), and seems to pull a bit harder at the very top as well. I'll be interested to see the untuned dyno run to see if my butt dyno is correct.

I drove my wife in it for a date night, and she didn't make any comments about it sounding any different / louder, so passed that test - phew!

Cold start is definitely a bit aggressive initially, but it settles down pretty quick, and I can tweak some ECU settings to tame that down further pretty easily. Full throttle can be a little buzzy, but that should hopefully improve when the tuning is done. I don't *think* it's rubbing on the underbody panel (I flattened out the common interference areas before reinstalling it), but I'll pull the underbody panel and double-check it at some point. If anything, highway cruising seems slightly quieter, but it's hard to tell over all the road noise...LOL.

Also, no CEL (yet) despite no cats being present!

Overall, a win, I'd say.

[autoracer86]

Looking forward to hearing how it feels after the tune. Keep us posted

[Tatsu333]

So - a few small updates:

I nearly sold my car this past weekend.

Long story, but for a number of reasons, money has been pretty tight for a while, and I was considering selling the BRZ and buying a 2008-2013 BMW 128i instead, which would have allowed me to come out about $10K ahead. The NA straight-6 siren song was STRONG, but....manual 128i coupes are very few and far between (all the ones for sale in my province were automatic), and I was having a LOT of trouble getting my head around going from my car (which I've owned since new, has just over 20,000 kms on it, and only has six payments left to be paid off) to something with 6-9x the mileage, silky smooth six cylinder or not. Still, I found one locally that was very tempting even though it was an automatic, and I came *this* close to pulling the trigger.

In the end, we worked some stuff out with our financial planners to free up some cash to address our current cashflow issues to carry us through until after my last car payment, which then frees up several hundred dollars per month. So, I decided that keeping my BRZ was the way to go. It is MY car, and I've put so much of my time and energy into it, I'm not ready to move on from it yet.

Current issues:

ACE Header Issues

I don't love the sound with the ACE headers and stock exhaust. Particularly off the line in normal driving and in some off/on throttle transitions, it just sounds...flabby. It's also just a bit thrashy accelerating hard through the 5,000 rpm range. Getting it tuned properly might help that a bit, but I'm not sure, and that's a $1,000 CAD maybe that I don't have money for right now.

I'm thinking about picking up a stock FA24 header and putting that on instead. Gains will be much less than with the ACE header, but getting back a bit more refinement might be worth it.

That might be a moot point right now because the OTHER thing that just happened is my car threw a P2096 code (too lean), which indicates there is a problem upstream of the primary O2 sensor. Usually means either the O2 sensor itself is loose or damaged, it's loose and leaking at one or both of the flanges, or there's a crack somewhere.

I won't have a chance to take things apart to look at it until the end of this month, so for now I'm just going to see if I can snug up the O2 sensor from above, clear the code, and see whether it comes back.

By the time I get a chance to torque check all the header bolts and inspect for cracks, I'm hoping to have the FA24 header on hand so I can swap it on then if I decide to go that way instead.

Bumper Sag

It finally happened - I was rushing into a medical appointment and smacked the bottom of the front lip on a particularly aggressive driveway ramp, popping the clips on the front bumper and causing some sag on the driver's side. I tried just popping it back in but it wouldn't take, so I ordered new clips hoping that would fix it.

When swapping the clips on the driver's side, I discovered that one of the loops on the bumper side was broken.



So, I ordered the repair plates from Australia and gave them a go:



But sadly, it didn't work out well. I cannot for the life of me get the bumper to snap back into the clip. Not sure if I didn't sand off quite enough material to allow for the thickness of the repair plate or what, but no matter what I've tried, I can't get it to go in properly. So now, it looks just as bad as before the attempted repair, if not worse.

I'm thinking about doing the push-button quick release latches, but seeing the release buttons on the outside of the bumper kind of makes me cringe. If it was just one, *maybe* I could convince myself that it looks kind of like a parking distance sensor, but with two placed so close together...it just looks like the band-aid that it is.

I think the first thing I'm going to try is to do the install like this guy did:

...using a quick latch only at the front and relying on the stock bumper/clip system and/or the push-pin at the side marker light to hold the bumper in place further rearward.

If that doesn't do the job well enough, then I might try to find a way to hide the rear-most connection by attaching it differently. What I'm thinking is attaching some kind of bracket inside the bumper just ahead of the side marker to mount the release button to (either riveted to the lip where the loops are or the plastic surround for the side marker, or attached to the side marker A-clip bracket somehow) so that I can reach the button with the side marker out, but it's hidden in normal use. Or, alternatively, using a bracket in the same place to mount the the pin part of the latch system to the bumper side and having the release button accessible behind the fender liner.

Either way, only the front-most quick latch would be visible from the outside when installed, which I think would be much better than having the two buttons per side visible.

If both approaches fail, then I'll have to go with the two visible release buttons per side.

I'm going to buy the latches with the buttons in black. If I don't like the way that looks, then I'll try to paint match the buttons to my bumper instead.

ANYway, that's not going to be a quick project, but I'm hoping to tackle the first method (trying just one quick latch per side with the factory clip for the rear) sometime in the next couple of weekends.

USB Ports Disconnecting Over Bumps and/or When Cornering Hard

This has actually been a problem almost since new. I run Android Auto in my car pretty much all the time, but if I hit any significant bumps (E.G. rough roads due to construction, train tracks, etc.) it nearly always disconnects. This has also happened when cornering hard on some of the canyon roads even without bumps.

This has happened with three different phones, maybe a dozen different USB cables using wired Android Auto, regardless of which USB port my device is connected to. Switching to the AA Wireless Android Auto Adapter has made it a bit less frequent, but it still happens.

The only thing I can conclude is that the back side connection to the ports themselves is flaky, either at the ports or at the head unit or both. I've read somewhere about using some kind of putty to fill and reinforce the connections, and I'm also thinking there may be some way to secure the cable for the USB ports better to prevent this. Since this will require taking my console apart and head unit out, it's not something I'm going to tackle anytime soon, but it is really annoying.


Well, with all that said - at least I still have the car, and I'm not dealing with 12-17 year old car problems...only my OCD and 5 year old car problems...LOL.

[Tatsu333]

...and of course the algorithm is listening, and presents a new option...LOL!

My Facebook feed served up the MAC Lifter bumper alignment kits, which are a similar stainless steel repair plate like I tried previously to fix the bumper fitment / sag issue BUT with another key component - a formed stainless steel replacement for the OEM plastic bumper clips as well!

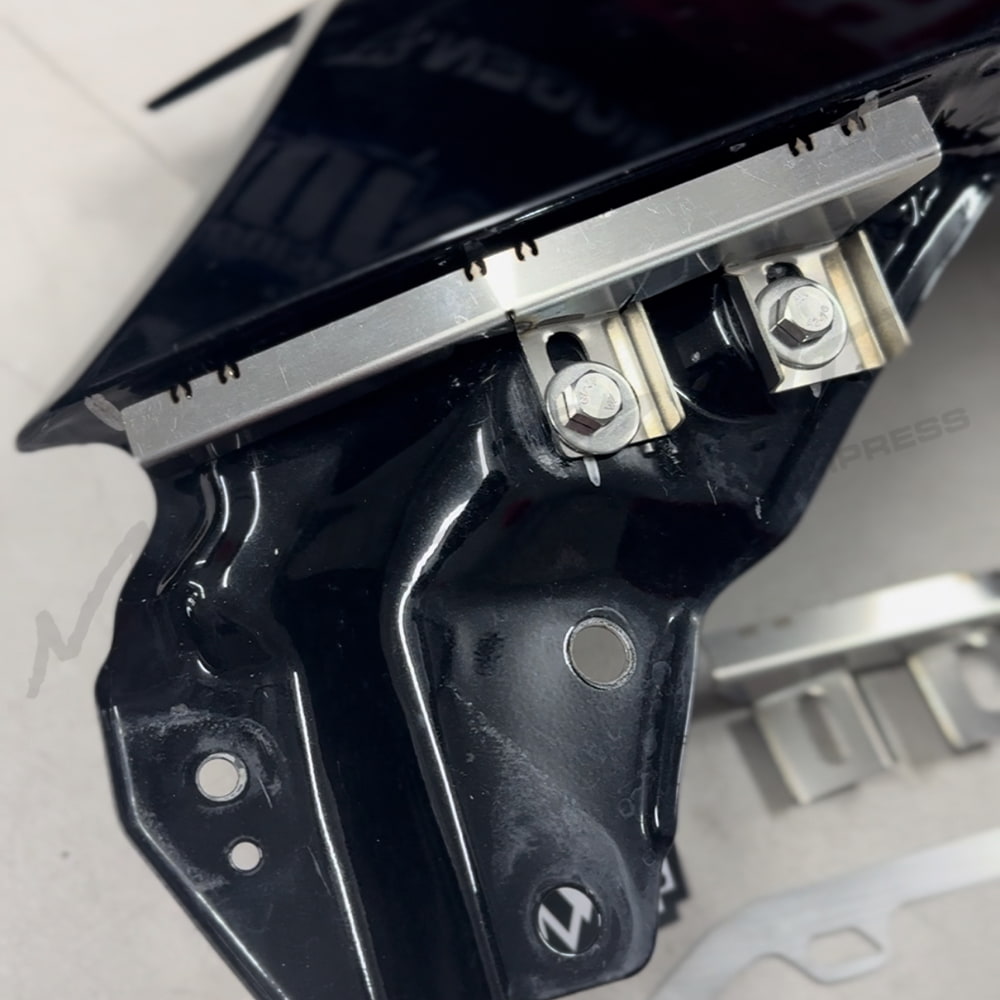

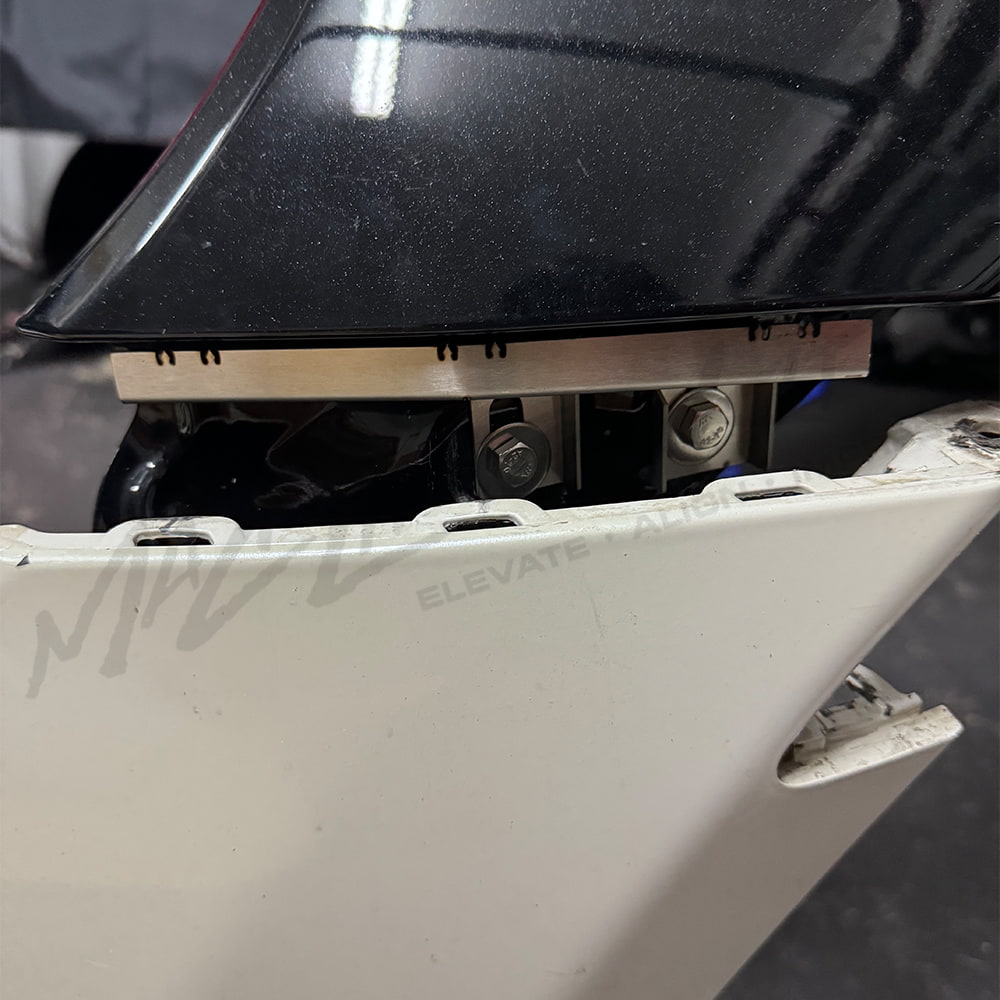

Here are a couple of pics (linked from their website):





Note how the mounts for the brackets are slotted, allowing for some vertical adjustment. While the instructions say that some trimming of the headlight bracket may be required for fitment, this is potentially a much better option (for me) than the quick release buttons. Or, possibly could be used like the OEM bracket in addition to a single quick release button towards the front as I mentioned in my previous post, only with more adjustability.

I will likely try just the body side bracket on my driver's side in conjunction with the already-installed repair plate, since removing that may be difficult now that it's JB Welded in place.

EDIT: Only *slightly* worrying thing is this from the product page: "Middle front tab may not fit later model first generation brz due to bumper style." Might need to be some trimming involved.

Anyway - I've placed the order. Like the other repair plates, these are coming from Australia, so "Good on ya!" to the Aussie GT86/BRZ community for continuing to come up with ideas!

Here's a link to the vendor's main Subaru page again, where you can see the options for ordering the full kit, just the body side brackets, or just the bumper side plates: https://www.maclifterkit.co/collections/subaru

[Tatsu333]

Also - I ended up finding an FA24 stock exhaust manifold locally (off of a crashed 2022 BRZ with only 10,000 kms on it!) for a decent deal, so I jumped on it. Now I just need to find time to swap it in place of the ACE header, and then I can be back to OEM levels of quiet but with a little more power potential...

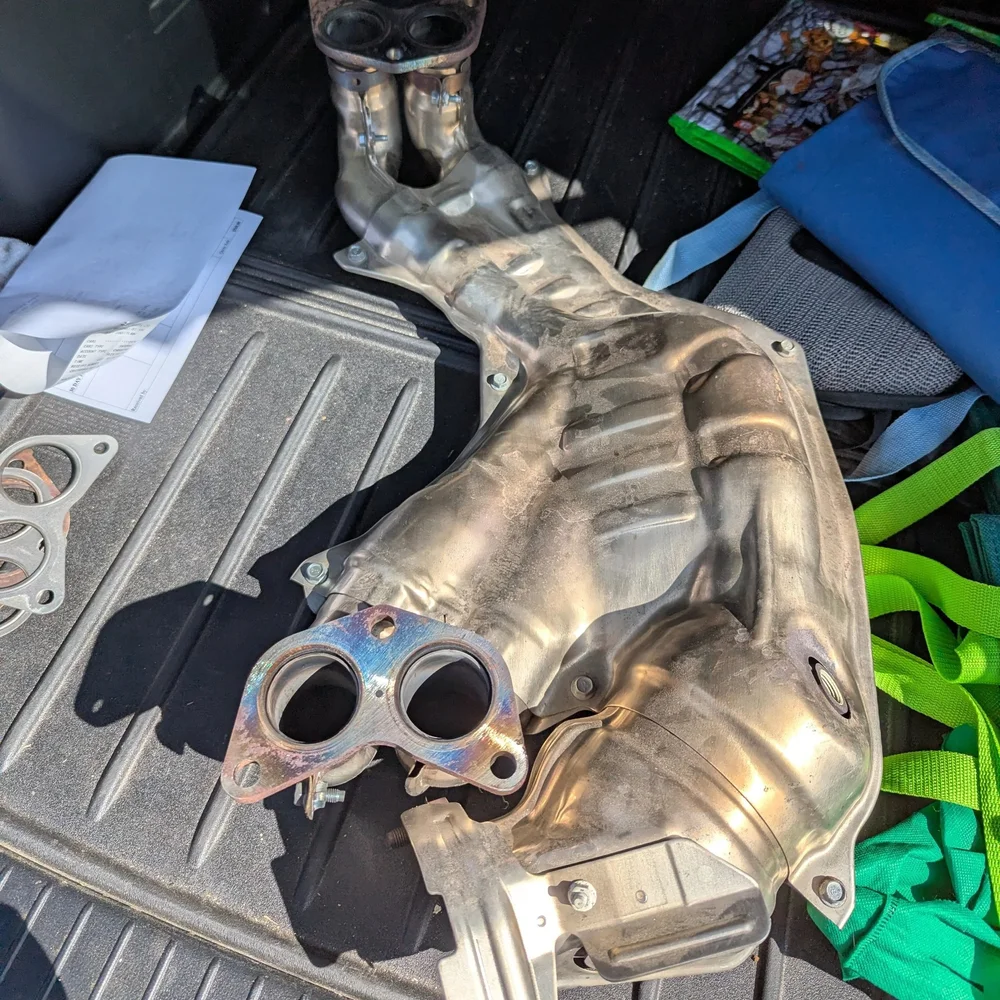

Here are a couple of pics (excuse the mess in the hatch of my wife's vehicle - LOL):





They also included all the gaskets, but I should have gotten them to also include the over pipe.

Anyway, I'll be interested to see what it does with the combination of the Billet Power Blocks and the FA24 header, both pre-tuning and after.

[Tatsu333]

Just came across these in browsing around for BRZ stuff yesterday. Turns out someone's already done what I was thinking of having made - custom aluminum wing risers using the factory 2017+ wing holes and 3D-scanned from OEM mounts to fit a SARD LSR-style wing. The SARD-style wing option has adjustability to change the angle of attack on the wing, and they also went about making it a modular design that can mount the OEM 2017+ wing!

Here are a couple of pics:

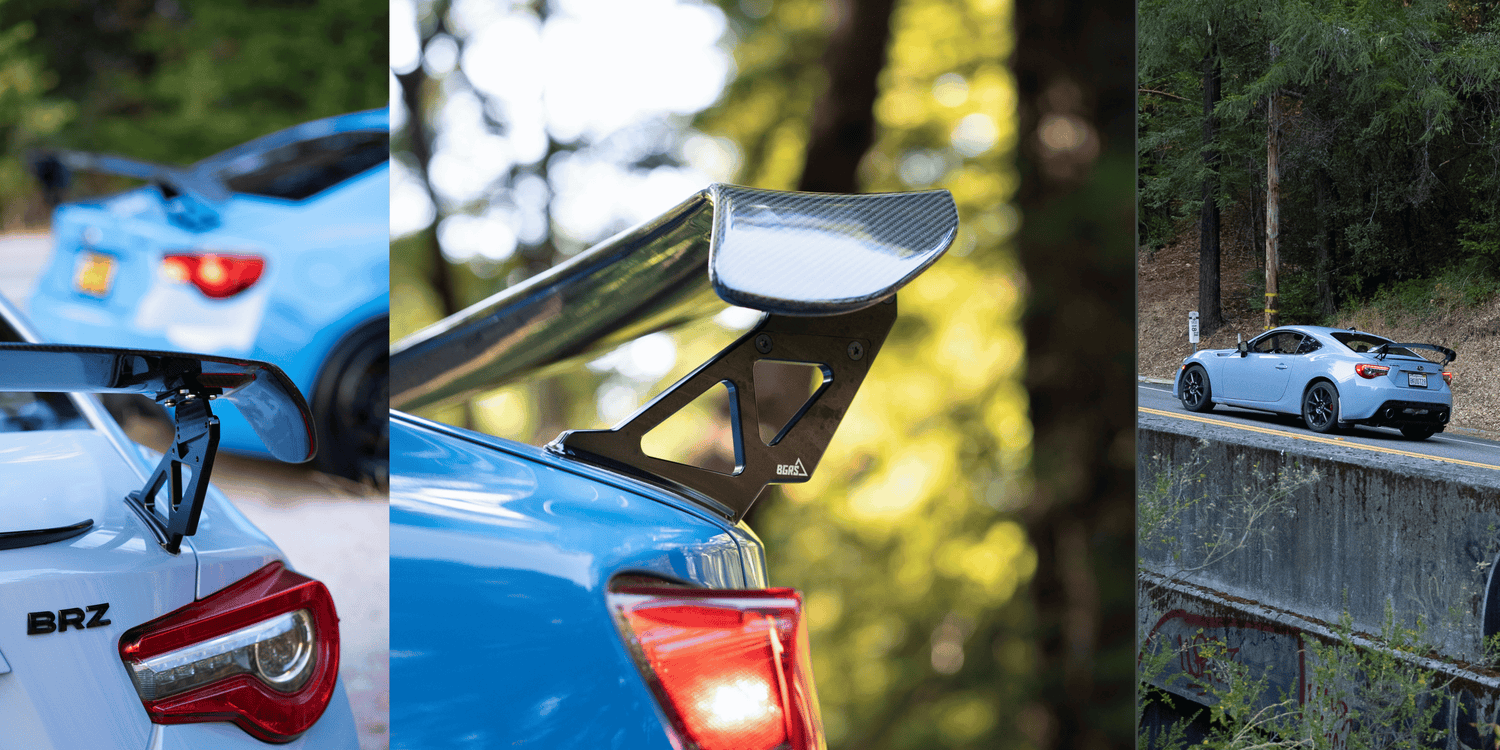

With the SARD LSR style wing:

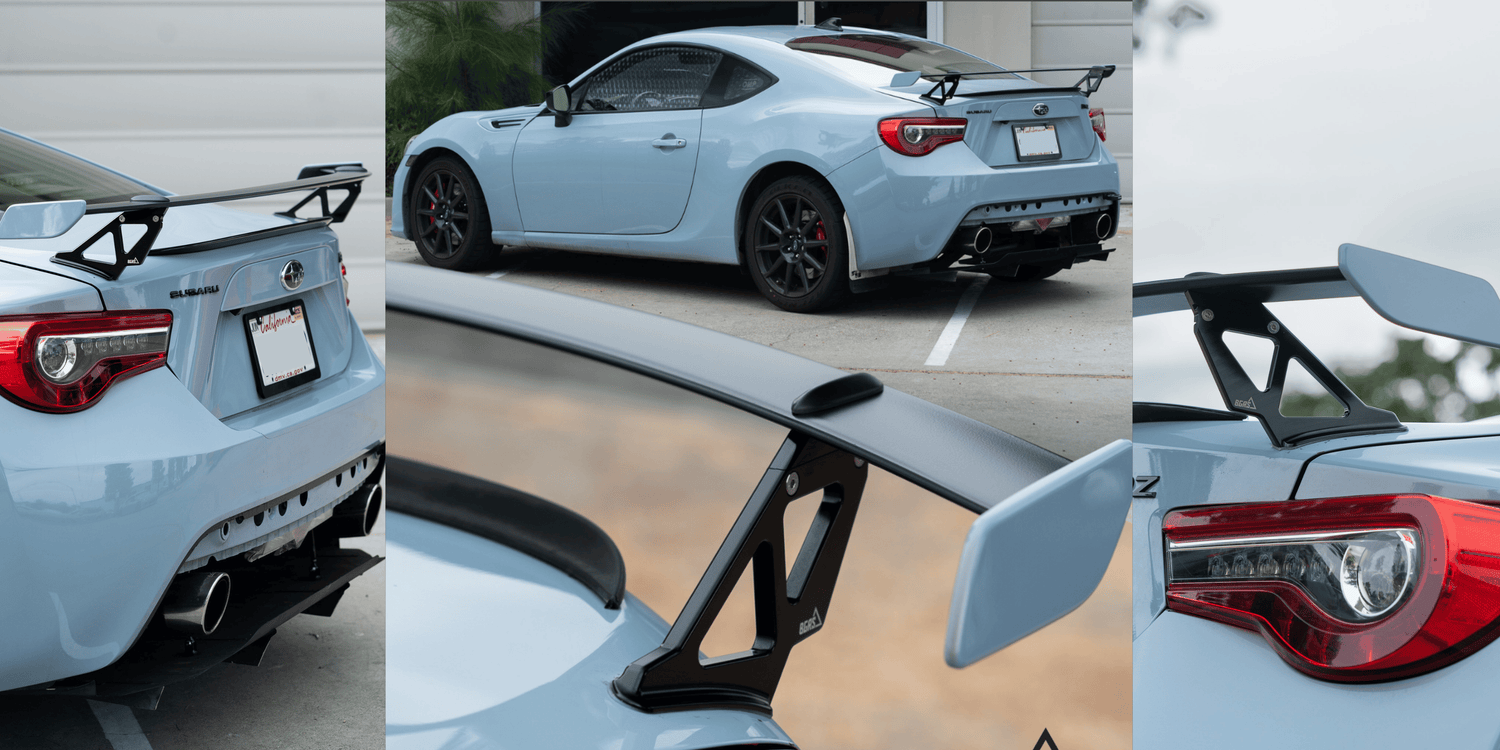

With the 2017+ OEM wing:



Check them out at Battle Garage Racing Services! Here are the links:

For the SARD-style wing kit

and

For the OEM wing kit

They say: "Only interior-side drilling required, maintaining the sleek exterior of your trunk. Light modification to factory holes is required." and that interior-side drilling is for "Steel support plate designed to be bolted to inner structure of trunk to further increase support for added downforce of a carbon wing."

They're certainly not cheap, but these are DEFINITELY on my list now once I have funds.

I'll probably buy the riser kit for the OEM wing first, and then decide if I'll also opt for the SARD-style wing down the road. If I do, I'll buy the full "carbon wing upgrade kit" they list to get both the wing and the adapters, and then I can swap back and forth between the two for road vs. track use.

[autoracer86]

I saw those wings awhile back and they look awesome !!

[Luns]

Originally Posted by Tatsu333

That might be a moot point right now because the OTHER thing that just happened is my car threw a P2096 code (too lean), which indicates there is a problem upstream of the primary O2 sensor. Usually means either the O2 sensor itself is loose or damaged, it's loose and leaking at one or both of the flanges, or there's a crack somewhere.

I would hazard to guess that the problem causing this code isn't of the sensor or a leak, but that you have the new header without an accompanying tune. The whole point of changing the header is increase flow, and if you're flowing more air into the engine but the ECM doesn't know to also provide more fuel to go with it, there's your lean condition. The ECM can trim up to a point, but when it stretches further than it thinks is normal, there's your code.

I'm very interested to see how the FA24 does without a tune, whether it makes much of a difference to the torque dip without exceeding what the ECM can trim without throwing a code.

[Tatsu333]

Originally Posted by autoracer86

I saw those wings awhile back and they look awesome !!

They certainly do! I just fluked into finding them when I was searching the Perrin wing risers - they came up as a picture in my search, and I was like, "WHAAAAT???" LOL

Originally Posted by Luns

I would hazard to guess that the problem causing this code isn't of the sensor or a leak, but that you have the new header without an accompanying tune. The whole point of changing the header is increase flow, and if you're flowing more air into the engine but the ECM doesn't know to also provide more fuel to go with it, there's your lean condition. The ECM can trim up to a point, but when it stretches further than it thinks is normal, there's your code.

I'm very interested to see how the FA24 does without a tune, whether it makes much of a difference to the torque dip without exceeding what the ECM can trim without throwing a code.

I hear what you're saying, and definitely agree that to get the most out of any header change, you should get a tune. However, the ACE header actually ran without any issues, untuned for over 3 months without any codes. Not optimal, but not problematic.

That said, there's DEFINITELY a leak, because the sound has noticeably changed when I've been driving it in the last week as whatever it is has further loosened up (though it hasn't thrown the code again yet). Now that I have the FA24 header to swap to, chasing it down is irrelevant.

The swap should be happening sometime between September 26 - 30, as I'll have my garage free for five days straight. Won't be super fun doing it on jackstands though! There's a *slim* possibility I might be able to get it on my friend's hoist that weekend instead.

[Luns]

Originally Posted by Tatsu333

I hear what you're saying, and definitely agree that to get the most out of any header change, you should get a tune. However, the ACE header actually ran without any issues, untuned for over 3 months without any codes. Not optimal, but not problematic.

That said, there's DEFINITELY a leak, because the sound has noticeably changed when I've been driving it in the last week as whatever it is has further loosened up (though it hasn't thrown the code again yet). Now that I have the FA24 header to swap to, chasing it down is irrelevant.

The swap should be happening sometime between September 26 - 30, as I'll have my garage free for five days straight. Won't be super fun doing it on jackstands though! There's a *slim* possibility I might be able to get it on my friend's hoist that weekend instead.

Oh, my bad, I missed the timing of your posts; thought they were closer together in time, didn't catch that they were months apart. Agree with your assessment then.

Did you find an FA24 overpipe, or are you hoping to match the FA24 header to your FA20 overpipe? ISTR there's a difference in the angle the flange is clocked at, but I don't know if it's slight enough to get away with.

[Tatsu333]

Originally Posted by Luns

Oh, my bad, I missed the timing of your posts; thought they were closer together in time, didn't catch that they were months apart. Agree with your assessment then.

Did you find an FA24 overpipe, or are you hoping to match the FA24 header to your FA20 overpipe? ISTR there's a difference in the angle the flange is clocked at, but I don't know if it's slight enough to get away with.

No worries!

I didn't pick up the over pipe, but am considering it. Kind of kicked myself for not thinking of it ahead of time when I got home with the header. I'm pretty certain the wrecker still has it.

I had initially thought the difference in alignment in the exhaust systems between 1st and 2nd gen was at the header to over pipe connection as well, but then I've also heard it's nearly every other joint...LOL. Most common ones I've heard are header to over pipe and midpipe to axleback. I'll compare my stock header vs. the FA24 to confirm.

Main reasons for me to pick up the over pipe are that it should have a larger diameter to match the FA24's significantly larger outlet diameter after the cat (57.5 mm ID vs 50.5 mm on the FA20 according to one tuner's measurements), and if there is any slight difference in routing to clear the FA24 oil pan, that would be handy to already have in place if I ever do an FA24 swap.

It will still step down in diameter at the front pipe, but I guess I could also look at grabbing the FA24 front pipe too if it's also bigger diameter and the wrecker doesn't want too much for it.

I've sent them a message to see how much they want for just the over pipe or for both the over pipe and front pipe, and we'll see if it's worth making the drive back out to pick them up!

EDIT: they do still have the over pipe and front pipe, and want another $400 CAD for both. $150 for just the over pipe. I'm thinking about it...

[Compelica]

Originally Posted by Tatsu333

No worries!
It will still step down in diameter at the front pipe, but I guess I could also look at grabbing the FA24 front pipe too if it's also bigger diameter and the wrecker doesn't want too much for it.

If it helps - HKS states that the general diameter (?) and part number is the same.

https://www.hks-power.co.jp/en/produ...ch/product/346

edit: messed up - it's referring to the HKS front pipe, not the stock front pipe.

[Tatsu333]

Originally Posted by Compelica

If it helps - HKS states that the general diameter (?) and part number is the same.

https://www.hks-power.co.jp/en/produ...ch/product/346

edit: messed up - it's referring to the HKS front pipe, not the stock front pipe.

Thanks - yeah, there's definitely a difference in the diameter for the OEM parts! Not sure if that also extends to the front pipe or not. I think what I'll do is tell them I'll for sure take the over pipe, but need to measure the front pipe to decide if it's worth the extra $250 or not.

There won't be huge differences in power regardless - it's more a matter of continuity for my OCD than anything else...LOL.

EDIT #1:

Thinking a lot more on it and running some calculations, presuming the core of the secondary catalytic converter is the same between the 1st gen and 2nd gen (which I'd hazard a guess it is) and the only difference is mating it to larger diameter piping before and after (if that's even the case), the 2nd gen front pipe would at best give something like...2-4% higher peak flow. With an NA FA20, I won't even be close to approaching the peak flow limits of either the 1st gen or 2nd gen front pipe, so I think I'm going to pass on the front pipe.

With the over pipe, I'd be a bit more concerned about there being a pronounced step down in diameter at that joint so close to the exit of the primary cat, so I still think that's worth it.

EDIT #2:

OK - I picked up the FA24 over pipe only (to add to the FA24 manifold), which has a 57 mm ID inlet and outlet.

Decided against the the FA24 front pipe. It has a 57 mm ID at the inlet, and the pipe diameter looks consistent up until just before the resonator (which appears to be identical to the FA20's), where it necks down to what I think is the same diameter as the FA20 front pipe, and that smaller diameter is still present at the outlet. Can't remember what the diameter was inside the donut gasket, but it was definitely smaller than 57mm.

All will be swapped out this Friday, along with some other little bits and pieces (refinishing my MCA Traction Mod brackets, raising my ride height all around by 5-10mm, maybe a front camber adjustment as well).

I might see about getting the car on the same dyno as previous to see what the car does with the FA24 header on the stock FA20 tune just as a reference point.
