Tiz22s Raven FR-S Build

[tiz22]

Originally Posted by drewbot

funny how you first blocked out your ontario plates, but then gave up

Hahah yeah honestly forgot 1 or 2 pics and then was like ahh screw it

[tiz22]

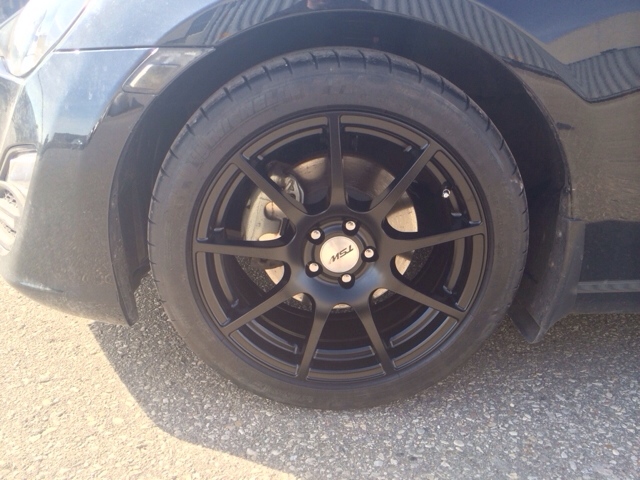

Finally decided on a new of wheels for summer...Went with TSW Interlagos 17x8+35 on the Michelin Super Sports 225/45/17

Ride feels great. Nice quick acceleration and stickier tires mean better handling. Not too many great pics for now but these will do






Sent from my iPhone using Tapatalk

[tiz22]

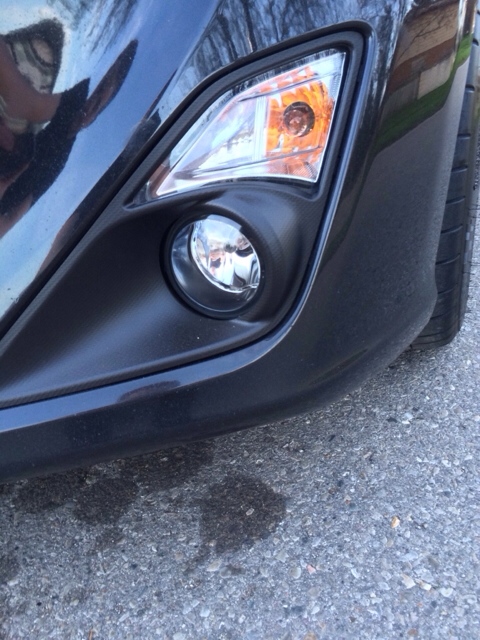

Installed chrome badges (since the Grazio matte black badges chipped like crazy) and fog lights...

DRL led strip looked good but offered 0% functionality so decided to switch it up to get a little more light on the road.






Sent from my iPhone using Tapatalk

[tiz22]

Sent from my iPhone using Tapatalk

[zinzan]

Originally Posted by tiz22

Reverse cam installed

Went with the Rydeen Duo and hooked it up to my AVIC Z150BH

Pics and potentially a DIY coming soon (Very easy DIY once you have a few wiring specifics laid out for you)

Hey Tiz, did you ever put together a DIY for this install? I know you were having some trouble when you installed the Valenti tail lights, but got that sorted.

I have the Rydeen Duo installed with my Subaru OEM Head Unit (Fujitsu Ten), but am considering getting a Pioneer NEX when the CarPlay stuff comes out. Would be interested in a DIY on the Rydeen Duo install into a Pioneer HU, figuring it would likely be similar?

Otherwise, if you don't have a DIY, can you summarize for me? Keep in mind, I already have the camera installed and wires run to the OEM HU. So I guess I just need to know, would the Rydeen Duo RCA cable plug right into the back of the Pioneer HU, and then I just have to figure out how to power it? And how to signal that I'm in reverse, or is that taken care of in the RCA connection?

Thanks,

-Z

[tiz22]

Originally Posted by zinzan

Hey Tiz, did you ever put together a DIY for this install? I know you were having some trouble when you installed the Valenti tail lights, but got that sorted.

I have the Rydeen Duo installed with my Subaru OEM Head Unit (Fujitsu Ten), but am considering getting a Pioneer NEX when the CarPlay stuff comes out. Would be interested in a DIY on the Rydeen Duo install into a Pioneer HU, figuring it would likely be similar?

Otherwise, if you don't have a DIY, can you summarize for me? Keep in mind, I already have the camera installed and wires run to the OEM HU. So I guess I just need to know, would the Rydeen Duo RCA cable plug right into the back of the Pioneer HU, and then I just have to figure out how to power it? And how to signal that I'm in reverse, or is that taken care of in the RCA connection?

Thanks,

-Z

You are correct about how it plugs into the head unit - yellow RCA cable.

To power the camera, I first tapped into my amp power wire (under mat of trunk) - but like you saw...the valenti reverse/3rd brake light must have been too much for the rear of the car or something because it just stopped working. Switched the power source to the 12v connector in the glovebox - works again.

To trigger reverse, there should be a third wire on your reverse cam (mine was purple I think) and that's the trigger wire. You'll need to tap that into a wire under the driver side steering wheel...There's pictures of it on this forum in other reverse cam DIYs but let me know if you can't find it and I'll take a pic for you

[tiz22]

Added a few more TRD goodies

- TRD shoulder pads
- TRD oil cap
- TRD rad cap
- TRD oil filter
- TRD aero stabilizing cover















Also installed Winjet headlights w/ black housing. Paired them with some Morimoto XB35 H7 bulbs

[tiz22]
