Wheel Directory: ESM 004 17x9.0 +38 - Toyota GR86, 86, FR-S and Subaru BRZ Forum & Owners Community

Scott · 02-16-2013, 11:45 AM

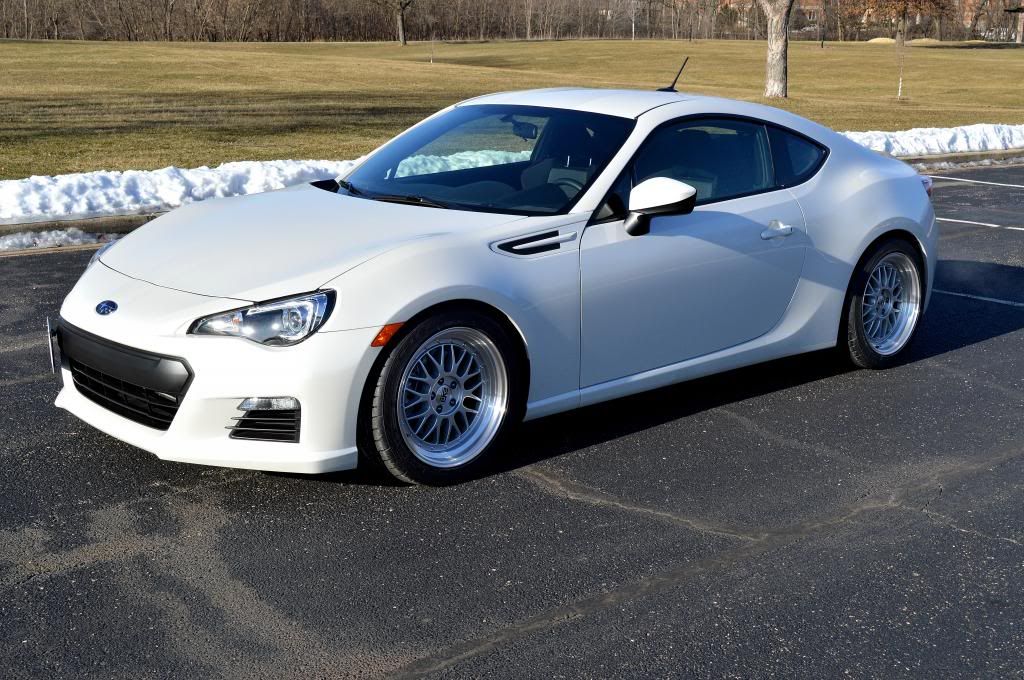

Kumho Ecsta XS 245/40/17 all around on Fortune coilovers. A liitle on the heavy side at 22lbs each but I dont notice any difference in seat of the pants performance. Happy with these for now.

Scott.

Z3D · 02-17-2013, 11:10 AM

Looks nice. Very clean. Any rubbing at all?

Scott · 02-17-2013, 11:49 AM

None what so ever! Thanks.

Scott.

swift996 · 02-18-2013, 10:18 AM

When you get a chance, I'd love to see some more photos of these. As in a few different angles if you have them.

Delacruzmd · 02-18-2013, 11:50 AM

How's the ride with fortunes?

turbos86 · 02-18-2013, 02:24 PM

Nice setup!
Are you also using ESM's Aluminum Hub Centric Rings?

Scott · 02-18-2013, 02:41 PM

Yes, 1mm rings. Dont forget to put antiseize on the hub unless you never want to get em off!

Scott.

swift996 · 02-18-2013, 03:38 PM

Quote:

Originally Posted by turbos86

Nice setup!
Are you also using ESM's Aluminum Hub Centric Rings?

How do these work? I have the same set coming (in 18" staggered form).

turbos86 · 02-18-2013, 11:26 PM

Quote:

Originally Posted by Scott

Yes, 1mm rings. Dont forget to put antiseize on the hub unless you never want to get em off!

Scott.

Thanks for the advice!

Quote:

Originally Posted by swift996

How do these work? I have the same set coming (in 18" staggered form).

The twins have a hub bore of 56.1. Depending on which rim you order, you'll need to get rings that are from a bigger diameter into 56.1

In the case of ESM-004, it's listed on their site: http://esmwheels.com/access/esm-004-sl-18-p-98.html

enjoyminutemaid · 03-02-2013, 01:37 PM

Quote:

Originally Posted by Scott

None what so ever! Thanks.

Scott.

What camber are you running in front and back? I'm surprised that with 245 width tires the upper part isn't closer to the fender.

Skurj · 03-02-2013, 10:20 PM

These wheels keep dragging me back, love the look.. and to think you can get a staggered set 18x8.5 fr and 18x9.5 rr for under $700...

DarrenDriven · 03-13-2013, 01:18 PM

Added to the Wheel Directory
http://tinyurl.com/86wheels

SunkenFRS · 04-08-2013, 07:26 PM

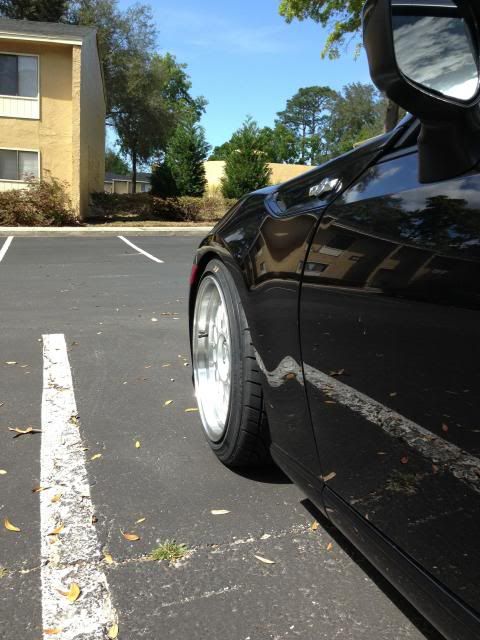

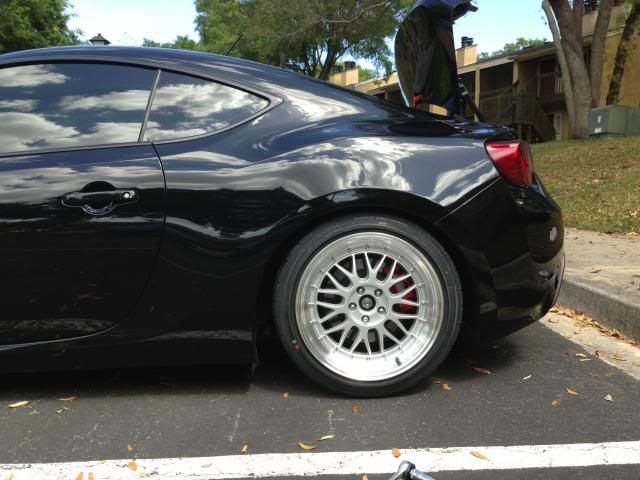

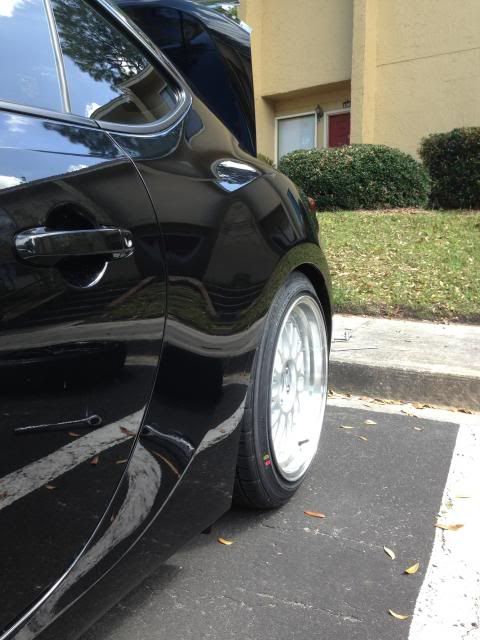

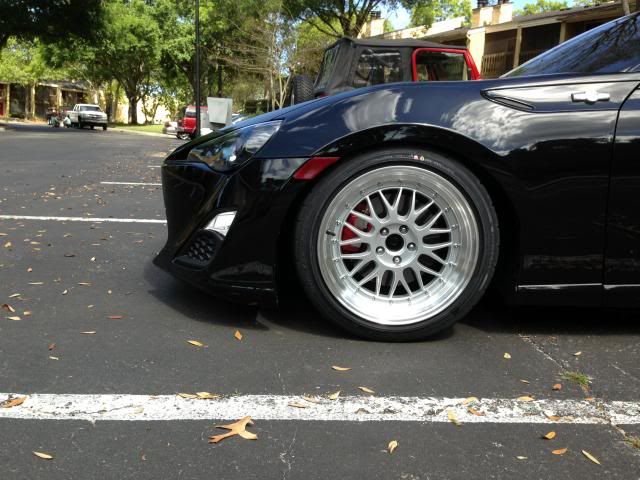

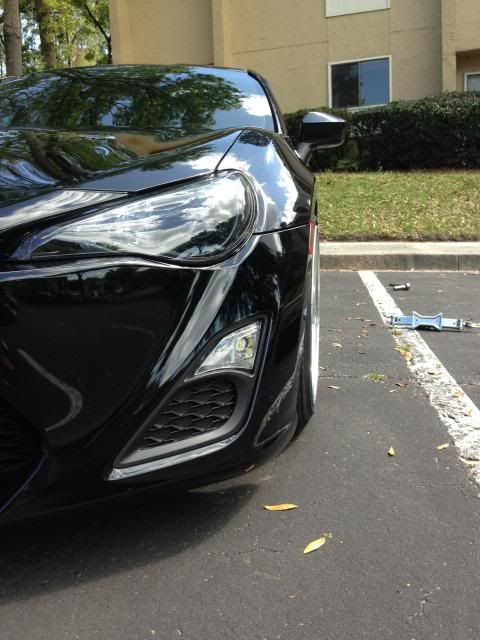

Got my ESM wheels installed so I thought I'd post a few pictures. The specs are 17x9 +38 on Dunlop dz101s 215/45r17 and I'm lowered on fortune auto coilovers. -1 Front/ -2 Rear

Hawk77FT · 04-08-2013, 07:56 PM

Quote:

Originally Posted by SunkenFRS

Got my ESM wheels installed so I thought I'd post a few pictures. The specs are 17x9 +38 on Dunlop dz101s 215/45r17 and I'm lowered on fortune auto coilovers. -1 Front/ -2 Rear

Looks awesome mate. I like the set up! Lowered on what?

How much did they set you back?

02-16-2013, 11:45 AM	#1
Scott Member Join Date: Jul 2012 Drives: 1971 Datsun 510 Location: Chicago Posts: 20 Thanks: 1 Thanked 7 Times in 2 Posts Mentioned: 2 Post(s) Tagged: 0 Thread(s)	Wheel Directory: ESM 004 17x9.0 +38 Kumho Ecsta XS 245/40/17 all around on Fortune coilovers. A liitle on the heavy side at 22lbs each but I dont notice any difference in seat of the pants performance. Happy with these for now. Scott. Last edited by DarrenDriven; 03-17-2014 at 02:12 PM.

02-18-2013, 10:18 AM	#4
swift996 Senior Member Join Date: Nov 2011 Drives: Subaru BRZ Limited 6MT Location: Winston-Salem, NC Posts: 2,432 Thanks: 712 Thanked 955 Times in 545 Posts Mentioned: 47 Post(s) Tagged: 0 Thread(s)	When you get a chance, I'd love to see some more photos of these. As in a few different angles if you have them. __________________ Innovate Supercharged Black Limited BRZ 6-Speed MT(Build Thread) 2010 Cadillac CTS-V Sedan M6 w/550whp (Build Thread)

03-02-2013, 10:20 PM	#11
Skurj Senior Member Join Date: Nov 2012 Drives: SOLD... Location: GTA Ontario Posts: 955 Thanks: 56 Thanked 192 Times in 155 Posts Mentioned: 7 Post(s) Tagged: 0 Thread(s)	These wheels keep dragging me back, love the look.. and to think you can get a staggered set 18x8.5 fr and 18x9.5 rr for under $700... __________________ WRB MT BRZ Sport Tech Delivered March 21 2013 Its mine now!! Paid for Mar 2018 and its gone... Sept '18 tho I am sure I will miss it Replaced with 18 50th edition ND

04-08-2013, 07:26 PM	#13
SunkenFRS Sideways & Smiling Join Date: Aug 2012 Drives: 2013 Raven FRS Location: Florida Posts: 74 Thanks: 11 Thanked 39 Times in 22 Posts Mentioned: 2 Post(s) Tagged: 0 Thread(s)	ESM 004 Pictures Got my ESM wheels installed so I thought I'd post a few pictures. The specs are 17x9 +38 on Dunlop dz101s 215/45r17 and I'm lowered on fortune auto coilovers. -1 Front/ -2 Rear __________________ 2013 Raven FR-S Flossy - Fortune Auto - ESM - Project Kics - Borla - Berk - TRD - HT Auto - Winjet - P3 - Koyo - CarolinaDyno - Mocal - FIC - FBM Last edited by SunkenFRS; 04-08-2013 at 07:50 PM.
