daiheadjai · 04-24-2014, 11:42 PM

Here's what mine looks like.
Basically, each clip uses 2 screws:

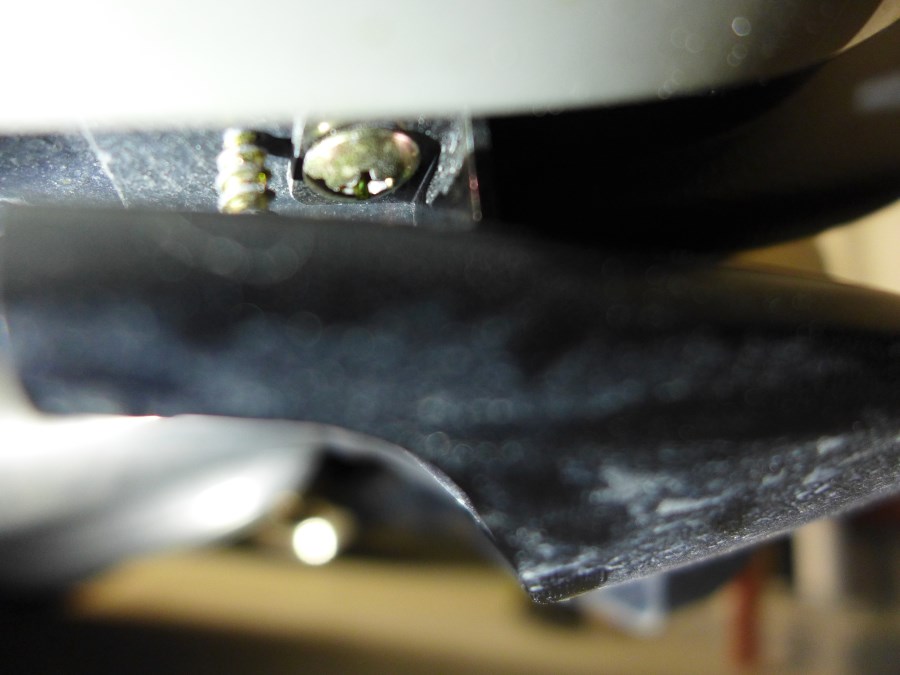

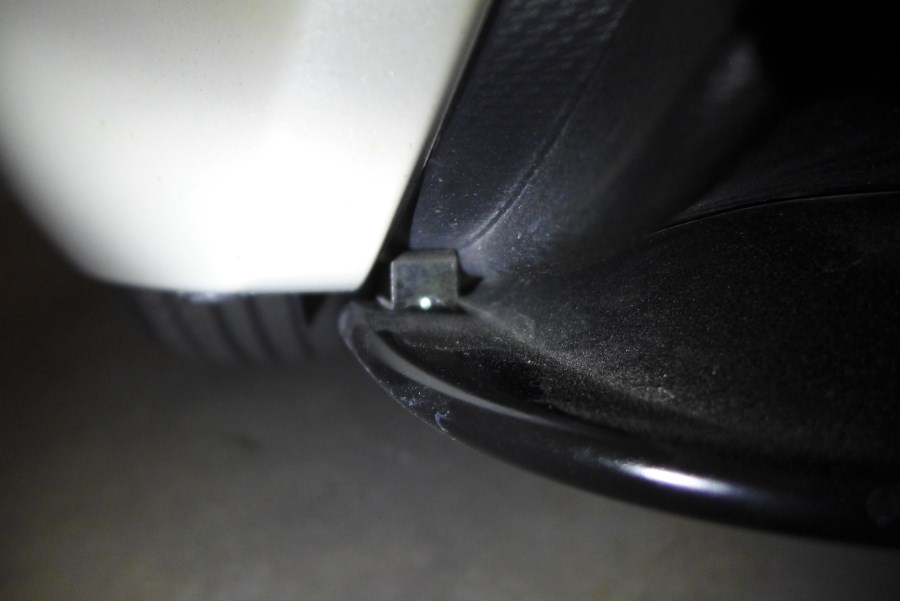

Image 1 & 2:
The first screw holds the clip on your bumper (you can use a screwdriver to drive it in, but be careful of the placement), and passes the big hole through to the small hole (which is the side that will actually hold the clip to the bumper)

In the first 2 pics, you can see the back of the clip (which faces the rear of the car), where it is screwed into the soft black plastic of the rear bumper.

Name: rP1020035.jpg
Views: 870
Size: 55.1 KB

Name: rP1020035.jpg
Views: 870
Size: 55.1 KB

Name: rP1020037.jpg
Views: 869
Size: 63.2 KB

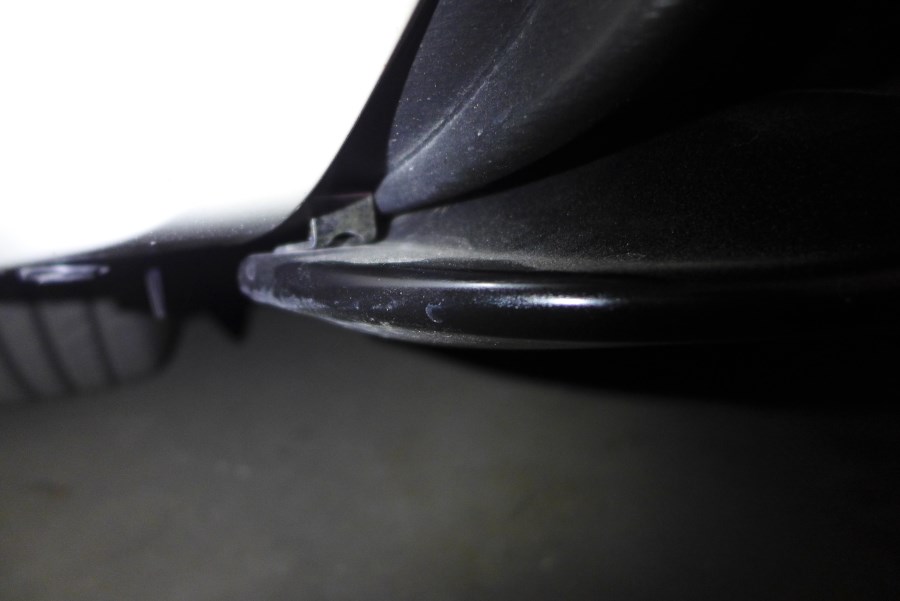

Image 3
The second screw is put in after you pull the diffuser edge over the long end of the clip (the diffuser tip has a little ridge that should slide right over the bracket/clip)

Name: rP1020045.jpg
Views: 865
Size: 88.6 KB

Name: rP1020045.jpg
Views: 865
Size: 88.6 KB

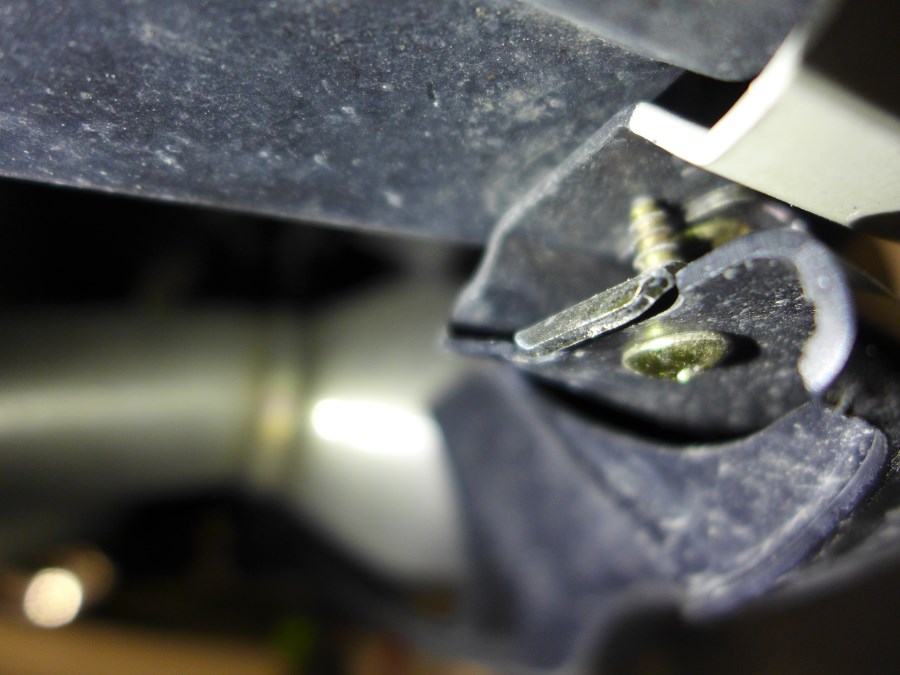

Image 4 & 5
These 2 pics give you and idea of the locations of the 2 screws

Name: rP1020046.jpg
Views: 870
Size: 79.0 KB

Name: rP1020048.jpg
Views: 902
Size: 97.4 KB

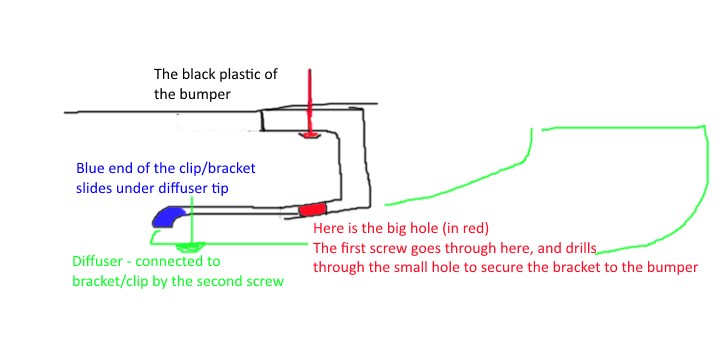

It should look something like this (pardon the crappy MS paint):
Name: paintjob.jpg
Views: 850
Size: 33.2 KB
