Alcantara/Leather Heated seats Swap into FRS Base


Hi guys!
Today I want to share my experience with Swapping heated Alcantara seats from Limited BRZ into FRS Base or Premium BRZ and how to connect them.

First of all I strongly recommend, all wiring jobs were done by professional electrician. (My Friend, who helped me, is a professional electrician, he helped me with all wiring and soldering work, I did wrapping, cleaning, removal and installation work)
ACHTUNG! Everything you do is YOUR own Risk and decision!

Parts you need:
Attachment 124049Attachment 124051
Attachment 124052Attachment 124053

- Heated Alcantara/Leather seats
- Limited BRZ / FRS RS1.0 console Look #1 (Part Number: 92113CA130 MSRP $51.97 Online Price $39.58)
- Seat heat switch Right Look #21 (Part Number: 83075FA001 MSRP $50.12 Online Price $38.17)
- Seat heat switch Left Look #21 (Part Number: 83075FA011 MSRP $62.97 Online Price $47.95)
- Wires from seats with connectors (which connects to the seats)
- Wires from Buttons #21 with connectors.
- Two wires around 2m length with Subaru pins.
- 3...4 meters of wire tube and tape
- Vacuum cleaner


Direction:

1) Disconnect battery

2) Remove old seats

3) Remove old console Attachment 124054

4) Remove Switch bezel #13 and side covers #16,17 Attachment 124056

Attachment 124060
Attachment 124061

5) Connect two wires about 2m length with Subaru pins to appropriate contacts in harness connector of INTEG UNIT AY USS (part number 88281CA300).

Attachment 124058Attachment 124059

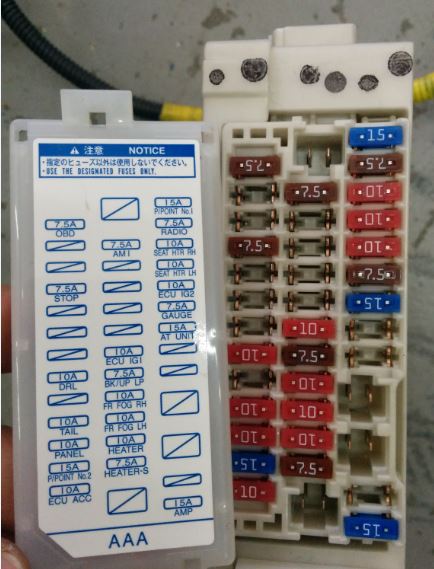

As you can see from pics, even if Base trim doesn't have a heated seats, there are power contacts with fuses from the factory for heated seats needs. We need just connect our power wires with pins to proper contacts in harness connector and we will have proper, designed from the factory power supply for new seats.
look wiring diagrams Attachment 124057 It's can be much easier when you remove module.

Attachment 124062

6) Stretch out those wires under the dash panel to place under the console where located control buttons and solder them to the wires with connectors for buttons.

7) As you can see from the wiring diagrams, you also have to solder ground cable (my Friend connect it to the car frame).

8) Next step is to connect wires with connectors from the seats to the buttons, wrap them into wire tube and stretch out under carpet to the seats place.

9) Wrap into wire tube all rest of wires and neatly arrange them near other stock wire harness which placed from the factory in FRS Base with MT on the right from transmission.

10) Clean all mess after yourself with vacuum cleaner.

11) Install new console Attachment 124055

12) Install Switch bezel #13 and side covers #16,17

13) Install new seats and connect properly all connectors.

14) Connect battery

Enjoy every single minute during the cold time your swap:)

Attachment 124063Attachment 124064

@RWDfun thank you for your thread!

Do you have any suggestion if I only need to swap seat to base FRS but do not need the heating funciton?

Iv heard that the BRZ limited seats are not direct fit. There will be sensor issue?

How did you deal with the air bag lights?

What do you mean? It's exactly the same connectors on both seats (in my case i put 2012 BRZ seats into 2015 Base FRS) and it was simply plug and play, with no any airbag lights.

Reviving this slightly old thread.

While I’m here, I have the OEM brz switches but not the wiring connectors for them, anyone know the part numbers for those?
