BRZ Custom SQ Audio Install

[GaDgeT]

Hey guys

Just picked my ride up from the installers and have finally finished up my audio build.

Kit list as follows:


Headunit
Pioneer App Radio 2

Inputs
Kiwi PLx OBD2 wifi link
GPS, Bluetooth
Iphone via dock
Reverse cam
ebrake bypass

Processor
Alpine PXA H100 with RUX controller

Amps
Eclipse XA1000
Eclipse XA2000
Arc Audio Mni KS 125.4

Speakers
Front - Active 3 way Hybrid Audio drivers
L1 Pro

*L3SE
http://store.12velectronics.com/prod...eaker-Set.html

L61-2
Sub
Boston Acoustics G3

Massive props to Phatt, who have done nothing but epic install and got all the go louds bits to work.

Build request was pretty simple, stealth install of speakers and amps into factory locations, keep the tools, lose the spare tyre, quick release sub box and minimal sound deadening to keep it light for track days.

As a daily, I wanted to retain as much space as possible for snowboard, clubs, bodies and large quantaties of cash / drugs.. this car is so versitile ;p

The car will be doing the rounds on the audio comp scene in the coming months, will see if the $$ + SQs ;p

Install pics from go to whoah!!

Final boot install


With stealthy cover


Factory vs Hybrid tweeter upgrade


Grills needed to be ground back, and hex trim removed


Acrylic rings made up for the mids


Glued into place to prevent audio leakage and installed back into the factory spots


Off with the doors and plastics


Sound deadening strategically applied to the inner and outer door skins


Custom fiberglass sub box being constructed in the boot well. Had to be removable without having to unscrew the driver for quick weight shedding


Layering up..


The pros use foil and wax as as base coat, new box pops out with no residue left behind


Building the base


And the new top fascia piece to be trimmed in factory carpet


Built strong enough to accommodate some load


Custom rings made up for the 6.5" door speakers and extra clearance depth


Mids going in

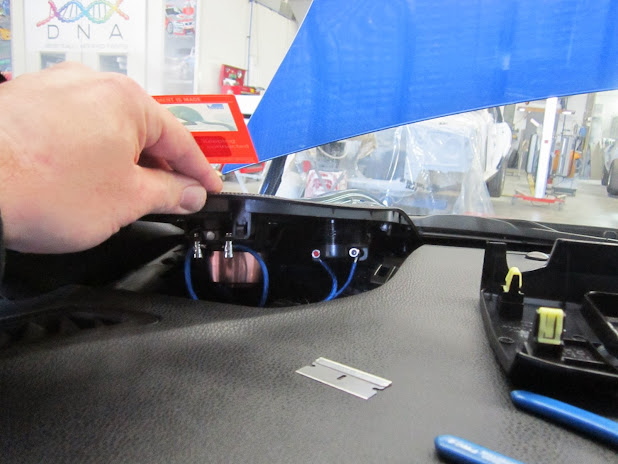

Dash speakers going in


All neatly tucked away


Well thats the fun part over with.. now gotta spend 200+ hrs breaking in the new drivers and endless tuning fun ive got with the DSP.

Will post up thoughts / reviews once Ive had a chance to listen to it all in a bit of depth, but so far so good
