NEO Motorsport Big Brake Kit


Hello Members,

We are from Toronto and we would love to share our products with you
Attachment 90696

Attachment 90697
photo from scion.ca

NEO BRAKE SYSTEM HIGHLIGHTS

• Forged 6061 alloy aluminum construction
• Increased Performance and Improved Balance
• Improved Brake Torque and Modulation
• Quick change pad design
• 2 Piece Rotor Design (Lighter, Cooler, Cost Efficient)
• Complete, Ready to Install kits

NEO BRAKE CALIPER

Attachment 90702

All NEO calipers are made from ultra-high strength forged 6061 alloy aluminum, the same material used in today NASCAR racecars. The ultra-light weight construction decreases unsprung mass while the increased rigidity allows both higher clamping force and incredibly consistent pedal response. It features differential bore pistons to optimize car control during heavy braking. External hydraulic pipe design keeps the brake fluid temperature low by utilizing air-flow technology to increase the efficiency in heat dissipation. The result is a significantly lowered operating temperature of the caliper and a more balanced brake pressure to ensure vehicle stability. NEO Brake Systems are designed to meet your heavy duty braking needs in both road and track applications. At NEO, we test our products thoroughly on the road and on the track to bring you the confidence you need in your everyday road driving.

Two Piece Fixed Rotor Design

Attachment 90701

• Lower rotational mass. Two-piece rotor design is generally 12-16% lighter than one piece design
• Cooler Disc Surface. Ventilation holes between the hat and the disc to air cool the disc surface
• Full Sliding Design. Prevents warping or cracking from high heat and high stress.
• Rotor Disc can expand and contract freely while the hat remains stress free

• Fully changeable rotor ring to reduce running cost in high demand racing application
• Moon-Cut fixed two-piece rotors for serious braking needs

NEO BRAKE PADS

NEO has developed a high performance pad to match the upgraded performance of the brake system. Our brake ceramic pads are made from organic materials that are environmentally friendly. The SILVER pads are designed for everyday use without the need to change your brake pads for weekend track use. Our GOLD race pads are full carbon ceramic. It provides aggressive braking power with low brake noise and dust level. Our friction material is a special composite that is designed for NEO’s specific purpose. Under the Japanese Industrial Standard testing, our silver and gold pads both achieve consistent 0.51mu; and 0.60mu; in operating temperature range up to 662 degree F. It is capable of sustaining a high coefficient of friction over a wide temperature range for all kinds of high performance road and track applications.

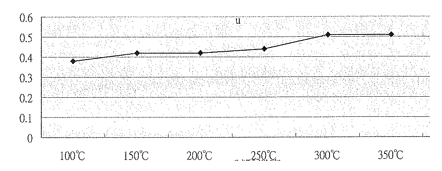

Street Performance Pad Dyno Result
Attachment 90698

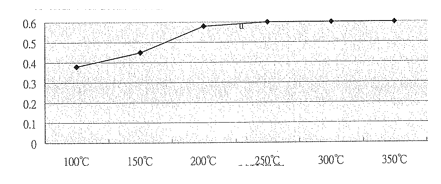

Race Pad Dyno Result
Attachment 90699

Product is used to compete in 2014 Canadian Touring Car Championship Series
Attachment 90693

4 Pistons - F301 Caliper with 304x28(mm) Rotor
MSRP: $1899.00 USD Sale Price: $1500.00 USD
6 Pistons - F303 Caliper with 304x28(mm) Rotor
MSRP: $1999.00 USD Sale Price: $1600.00 USD
Recommended For: Club Racing / Cup Racing

4 Pistons - F401 Caliper with 330x32(mm) Rotor
MSRP: $2199.00 USD Sale Price: $1760.00 USD
6 Pistons - F401 Caliper with 330x32(mm) Rotor
MSRP: $2299.00 USD Sale Price: $1840.00 USD
Recommended For: Time Attack Car/Touring Car
**Shipping is extra

4 Piston VS 6 Piston:

• 4 piston setup provides better initial brake bite from the equal size pistons
• 6 piston caliper which is more modular due to staggered piston positioning

bump

Do you have fronts & rear? What comes with the kit?
