JDis3 09-05-2014 08:29 PM
BRZ headlight swap to Monogram Series *UPDATE:10/12/14 w/ Pics*

Update: After taking the time to play guess and check, I managed to install the BRZ headlights on my Monogram FRS.

Special Thanks to @civicdrivr for providing me the pictures of his BRZ headlight harness.

http://i418.photobucket.com/albums/p...ps08bedb06.png
http://i418.photobucket.com/albums/p...pse9721408.png

http://i418.photobucket.com/albums/p...ps59f231e5.png

k.houan 09-05-2014 08:33 PM
Quote:
Originally Posted by JDis3 (Post 1933834)
Anyone know if the BRZ headlights would need any modifications to work with the Monogram Series? I know they are both 8 pin but i haven't seen any monogram owners with brz headlights. Repinning would be great. Would love some clarification.
Are you planning on swapping your monogram lights for Brz lights?

Sent from my LG-D851 using Tapatalk

JDis3 09-05-2014 08:37 PM
Quote:
Originally Posted by k.houan (Post 1933843)
Are you planning on swapping your monogram lights for Brz lights?

Sent from my LG-D851 using Tapatalk
Yeah that's the plan.

husker741 09-05-2014 08:38 PM
Quote:
Originally Posted by JDis3 (Post 1933846)
Yeah that's the plan.
I'll take your Monogram headlights :)

JDis3 09-05-2014 08:41 PM
Lol if anyone wants them, know that my car has less than 200 miles so price of them wouldn't be cheap

k.houan 09-05-2014 08:47 PM
Quote:
Originally Posted by JDis3 (Post 1933853)
Lol if anyone wants them, know that my car has less than 200 miles so price of them wouldn't be cheap
Im down for a trade!

JDis3 09-05-2014 08:58 PM
Quote:
Originally Posted by k.houan (Post 1933870)
Im down for a trade!
pics of your headlights?

k.houan 09-05-2014 09:20 PM
1 Attachment(s)

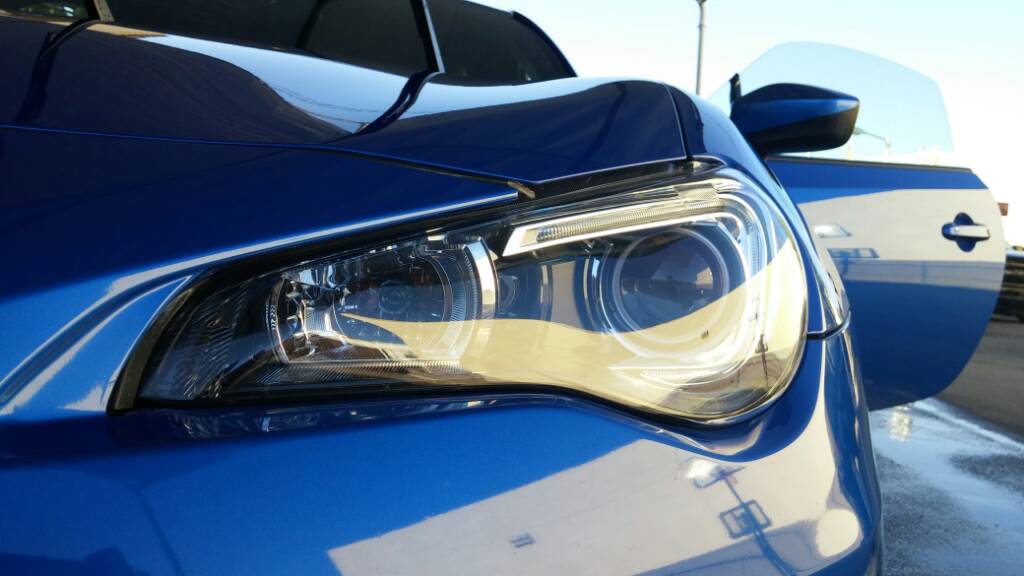

Attachment 90008

Best one i have of the lights right now. I'll get one close up in about an hour.

Sent from my LG-D851 using Tapatalk

k.houan 09-05-2014 09:55 PM
1 Attachment(s)

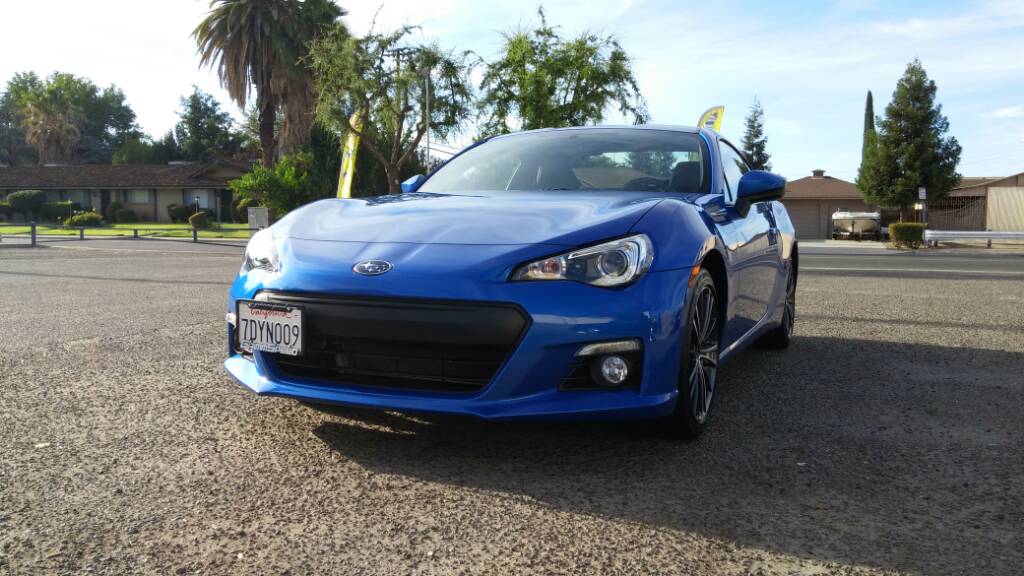

Attachment 90009

Thoughts? Pics of yours if your interested.

Sent from my LG-D851 using Tapatalk

BeRZed 09-05-2014 10:06 PM
The BRZ won't have turn signals if swapped with the monogram.

JDis3 09-05-2014 10:08 PM
Although my original question has not been address, here are my headlights.

http://i418.photobucket.com/albums/p...scad7b63d.jpeg

http://i418.photobucket.com/albums/p...s216ca55c.jpeg

Bach415 09-06-2014 02:03 AM
Edit: Nvm. They are 8 pinned but you may need to re-pin the connector.

JDis3 09-06-2014 02:06 AM
Quote:
Originally Posted by Bach415 (Post 1934255)
Please correct me if I'm wrong, but I think the monogram series headlights(or any of the USDM FRS headlights) are 6 pinned. It's just the monogram,10 series, and rs1.0 don't got the DRL resistor that the base model has. You are going to need to repin it I believe.
Can someone chime in with a confirmation on this? Im currently at the last stages of possibly picking up a pair of brz headlights, so this info would be great

JDis3 09-06-2014 02:11 AM
Quote:
Originally Posted by Bach415 (Post 1934255)
Edit: Nvm. They are 8 pinned but you may need to re-pin the connector.

Refining shouldn't be an issue if I could get ahold of both wiring diagrams


Sent from my iPad using Tapatalk
