Quote:

Originally Posted by hmong337 (Post 1558246)

Thanks for the manifold pics! Did you manage to crack any off of the avcs units?

I didn't remove the actual assembles from the cam shafts them selves that is one of the only parts still assembled at this time. They are sitting on top of the heads right now. I have been sick for the last week so I never got around to taking any photos of anything =x

You gonna track this when it's done? Seeking playmate

Quote:

Originally Posted by kiichiro (Post 1563424)

You gonna track this when it's done? Seeking playmate

I was going to track before. However due to my tune making me uncomfortable I wasn't comfortable ever leaving city limits and WHP was closed down for construction. However I don't think we will bump into eachother, as my friends all track at nasa events and I plan on joining them. :(

I'm coming to nasa

See u there

Quote:

Originally Posted by nelsmar (Post 1530180)

As many if you know I had suffered engine failure many months ago. I have finally managed to take the time to do a full engine tear down. Every last bolt has been removed, tagged, and bagged. I figured as crawford was the only one to do this previously and they were directly told not to post any further due to not paying for sponsor status I would forward the offer to take any photos that anyone may want to see of any components before I re-assemble over the coming weeks!

I will be taking a few standard pictures of the damaged components in my engine but if there is anything that anyone is just curious about I can attempt to arrange to take quality photos of them. I shoot professionally and will be setting up a small setup for snapping some pictures of things. I'll try to get as many requests as possible but I am also fairly busy over the coming weeks.

I will attempt to take pictures over the weekend / early next week. So please post any requests you may want in this thread!

P.S. full build thread coming soon! :)

Good times talking about this build with you. Can't wait to see the results, it's going to be a beast!! Good luck with everything :)

Quote:

Originally Posted by Jason@DSG (Post 1565274)

Good times talking about this build with you. Can't wait to see the results, it's going to be a beast!! Good luck with everything :)

Thanks! Should have it assembled soon. :) Just waiting on some OEM parts to show up! Thanks again for all the time you spent helping a hand!

Quote:

Originally Posted by nelsmar (Post 1565289)

Thanks! Should have it assembled soon. :) Just waiting on some OEM parts to show up! Thanks for all the time you spent helping a hand!

I'm a huge advocate of built engine and turbo for this car, I'm really glad to see you going this route. Your internals and pretty damn bulletproof at this point. A good tune with a big turbo and you'll be :D all day

Looking forward to all the updates, have a good week-end :cheers:

Quote:

Originally Posted by Jason@DSG (Post 1565297)

I need to get off my ass and actually post a build thread this weekend =x but I haven't taken the time to take photos of anything. Hell I don't even know if i have a photo of my own car lol.

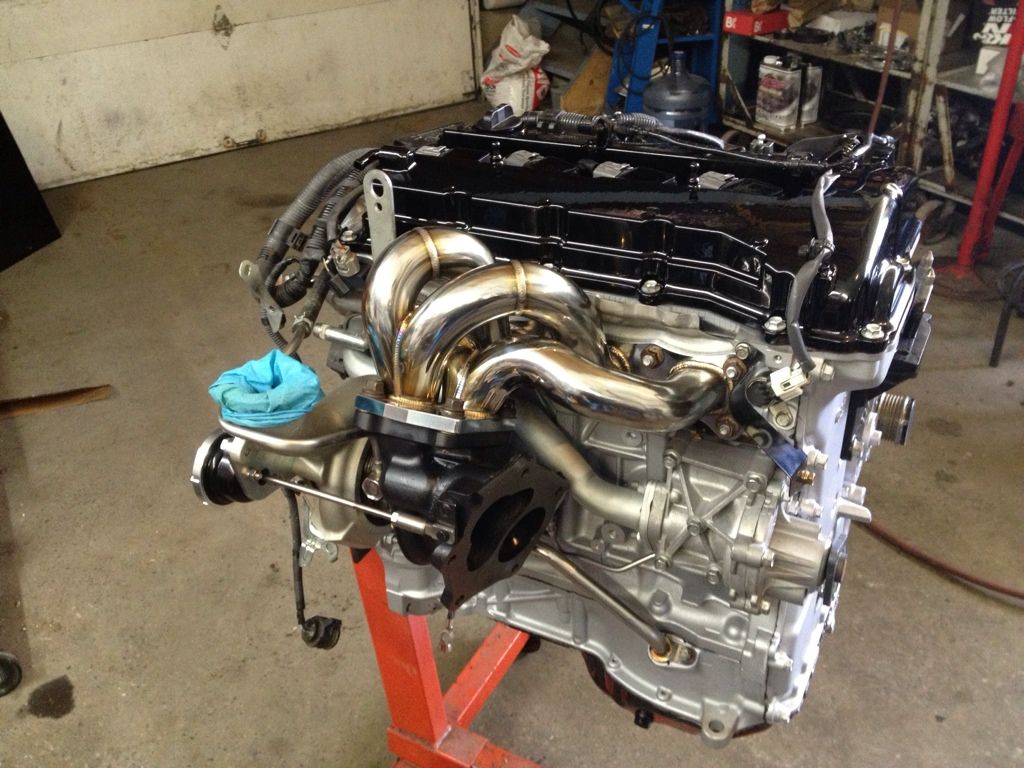

Don't feel bad, I did a $20,000 engine/turbo/transmission build on my car and this is the only pic I have hahaha (I asked my builder to snap at least 1 before it went in the car):

http://i1171.photobucket.com/albums/...ps8eb9eed0.jpg

lol... thats a lot like me...

I shoot professionally and i have a single photo of my car that I can recall and it was the front end and 100% stock. SMH

Pretty.... :wub:

Quote:

Originally Posted by Jason@DSG (Post 1565359)

Quote:

Originally Posted by nelsmar (Post 1565368)

lol... thats a lot like me...

I shoot professionally and i have a single photo of my car that I can recall and it was the front end and 100% stock. SMH

bahaha!!! Yeah your pics are very nice though, really great job. Well take this as a sign to get going on some proper pics once it's done!! We need to seeeee meow
