Heya guys ~ here's a couple of pics of the installation. We were able to wrap this up without any issue and the hardest thing on the install was to bleed the SC system.

Currently, it's an easy 7 hour job, with setup time for bumper removal and prep, so depending on who's doing this, +/- an hour. Everything fits really, really well. There's nothing here looks like it's out of place, and the kit seems well thought out.

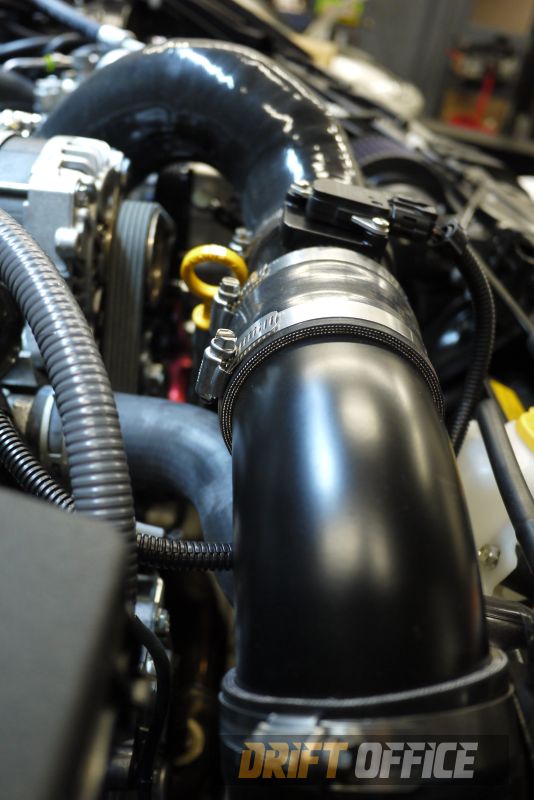

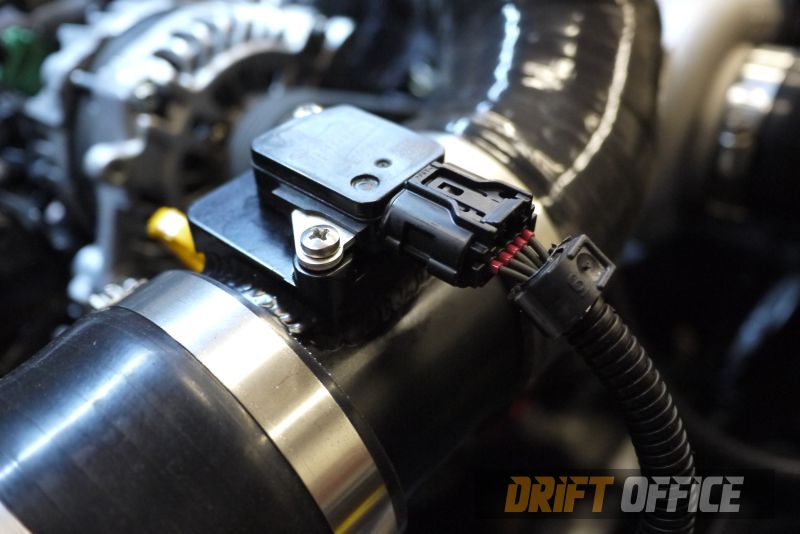

Only thing I can see that's possibly going to be an issue is that silicone inlet but I'm sure that it's been thoroughly tested so it shouldn't be a problem. Anyway, most of you are into pics so I'll just fill this up with some gratuitous shots... Enjoy! :)

Bob @ Drift-Office, LLC


Attachment 59268

Attachment 59269

Attachment 59270

Attachment 59271

Attachment 59272

Attachment 59273

Attachment 59274

Attachment 59275

Attachment 59276

Attachment 59277

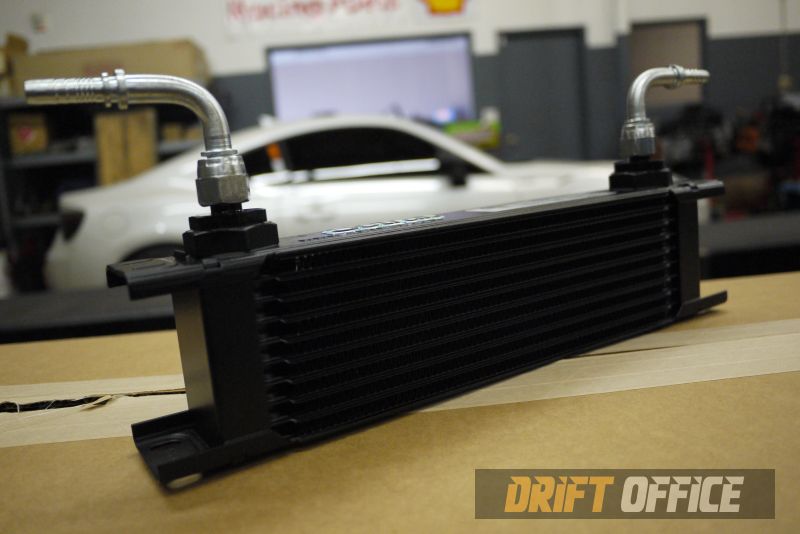

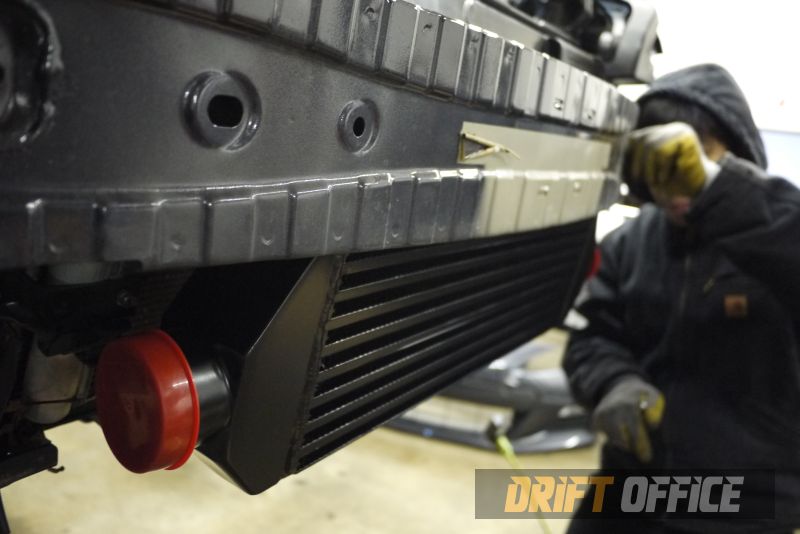

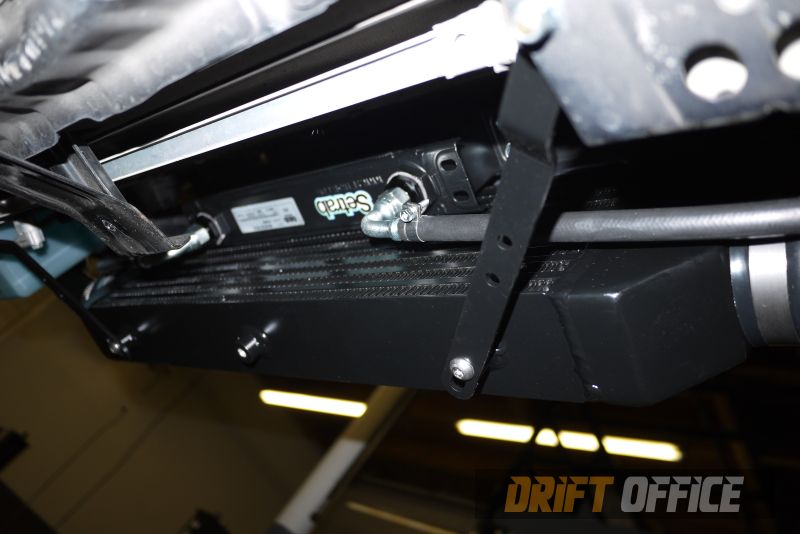

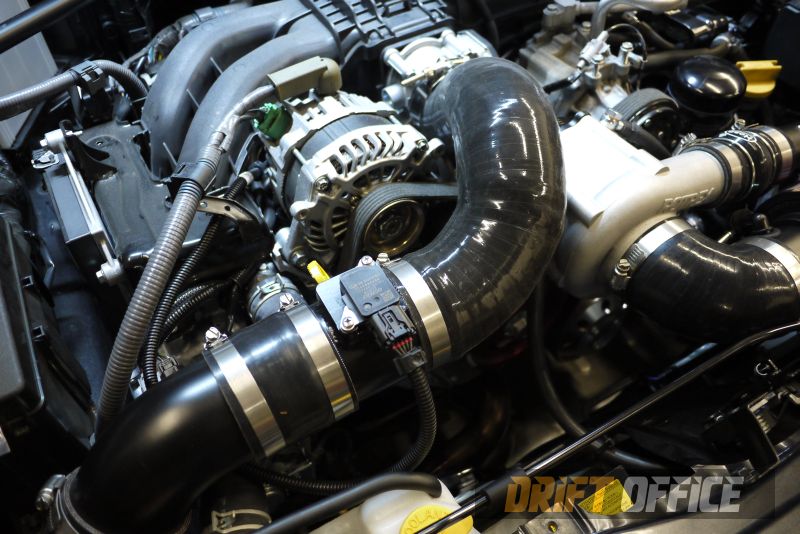

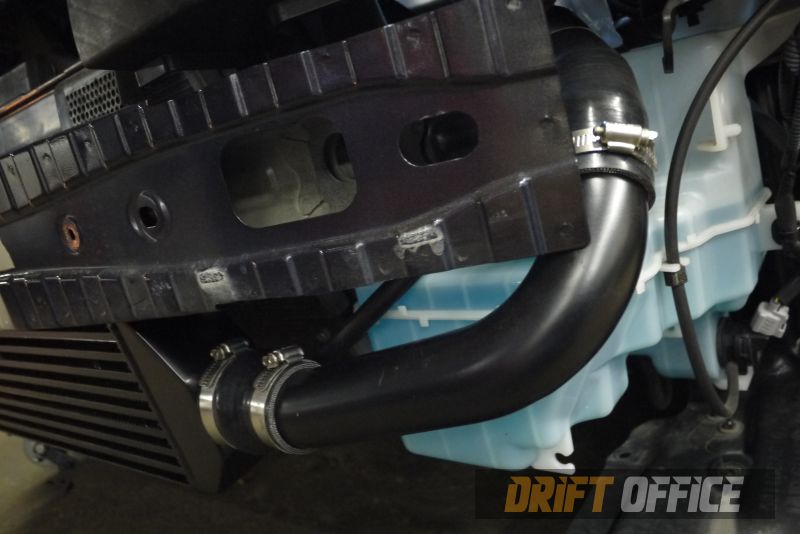

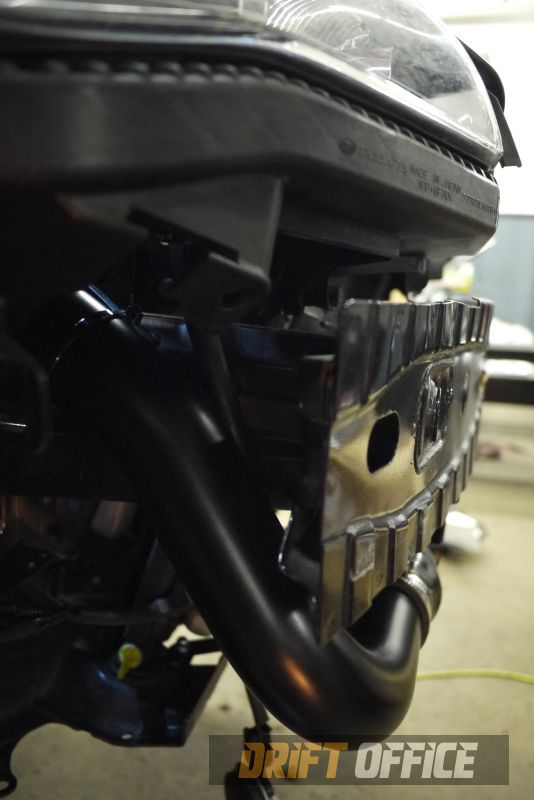

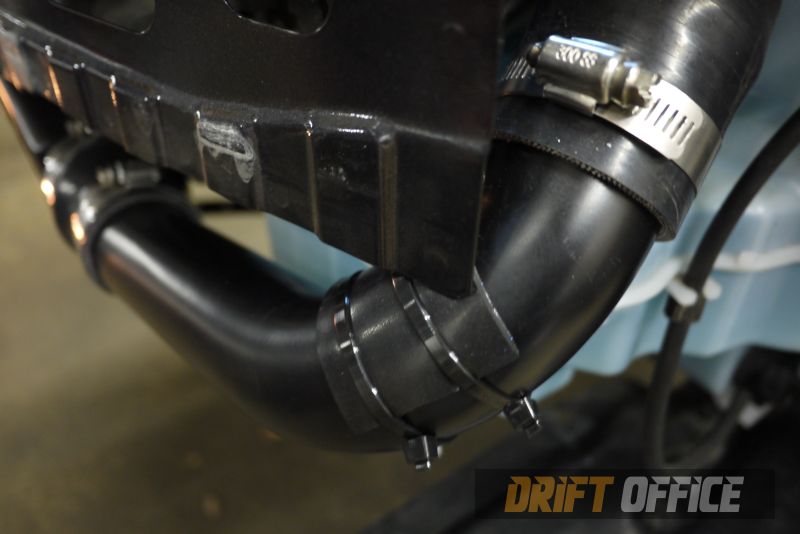

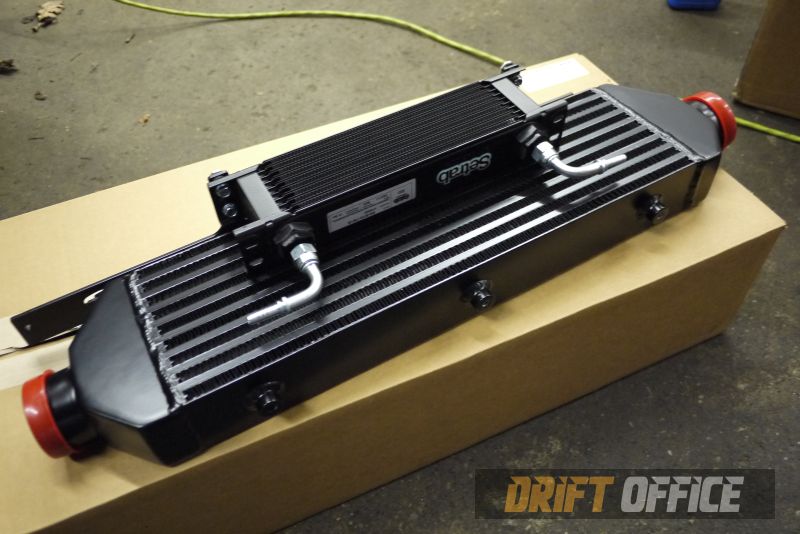

Of particular interest to some, is the intercooler setup as well as where the SC cooler's location is... and as you can see, there's plenty of room here!

Attachment 59278
^^^ Here's a shot of Bill (and I) freezing our nuts off in the bay installing this...


Attachment 59279

Attachment 59280

Attachment 59281

Attachment 59282

Attachment 59283

Attachment 59284

Attachment 59285

Attachment 59286

Attachment 59287

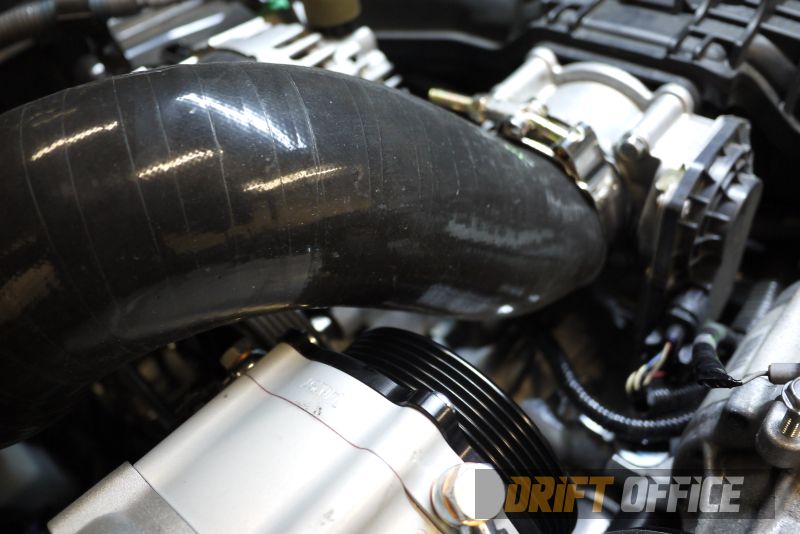

Aren't you concerned about the way the intake bends at such angle ?

It doesn't look as acute as it appears in the pic... :)

Lastly, just about the biggest / hardest thing to do was to prime the SC system to make sure the oil was in there, and that was a bit of fun when we sent a spray of synthetic oil onto one of our other guy's face... Not fun. :)

Attachment 59291

Attachment 59292

Attachment 59293

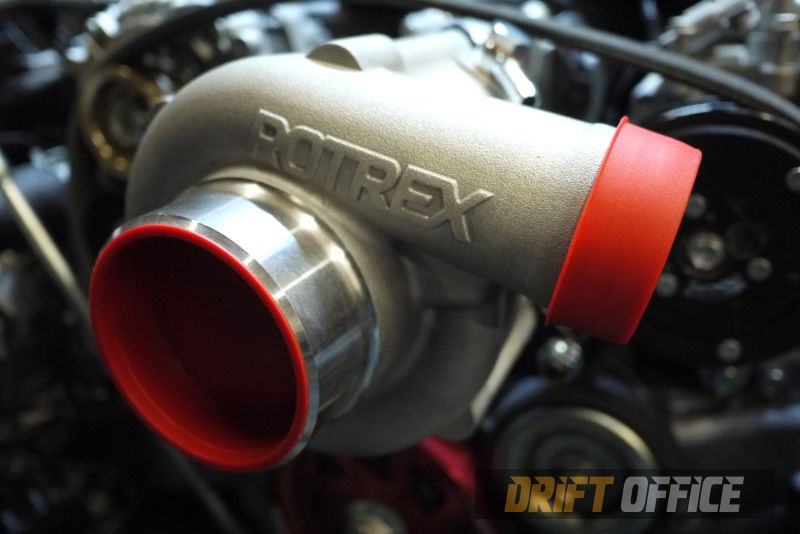

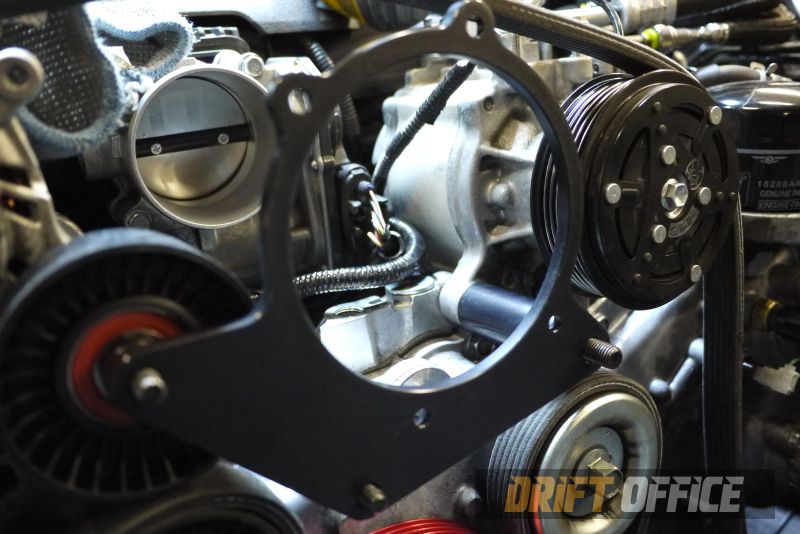

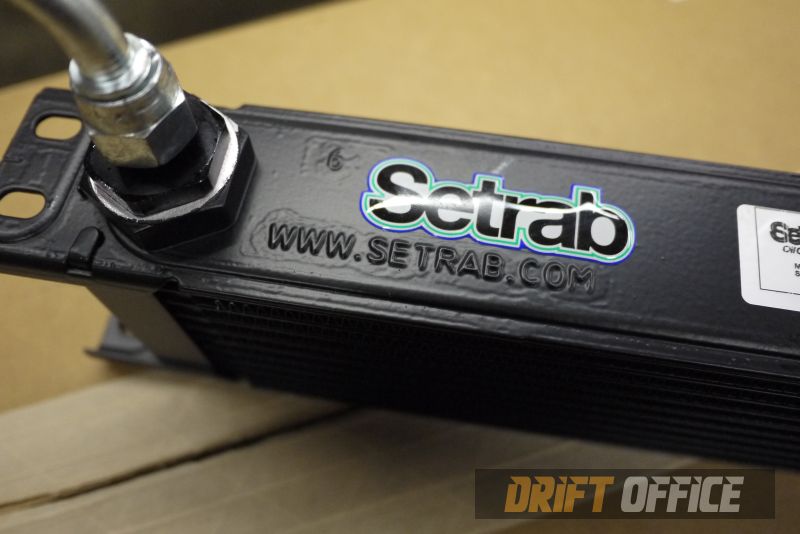

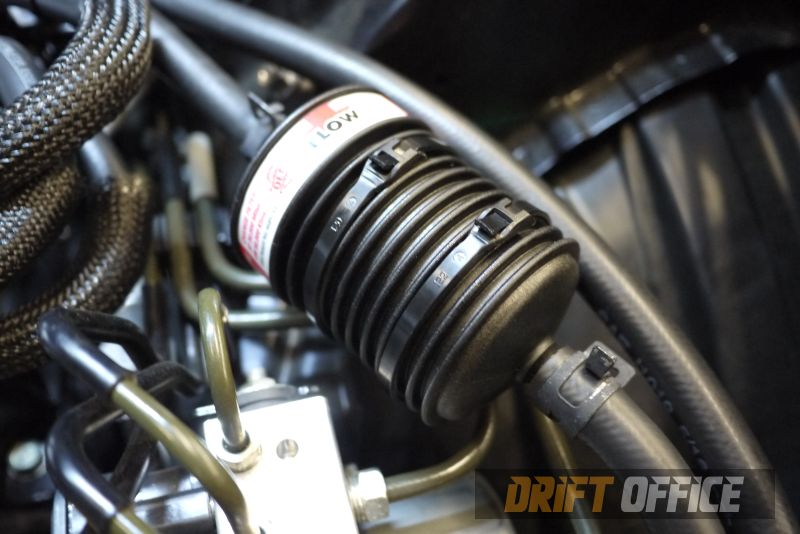

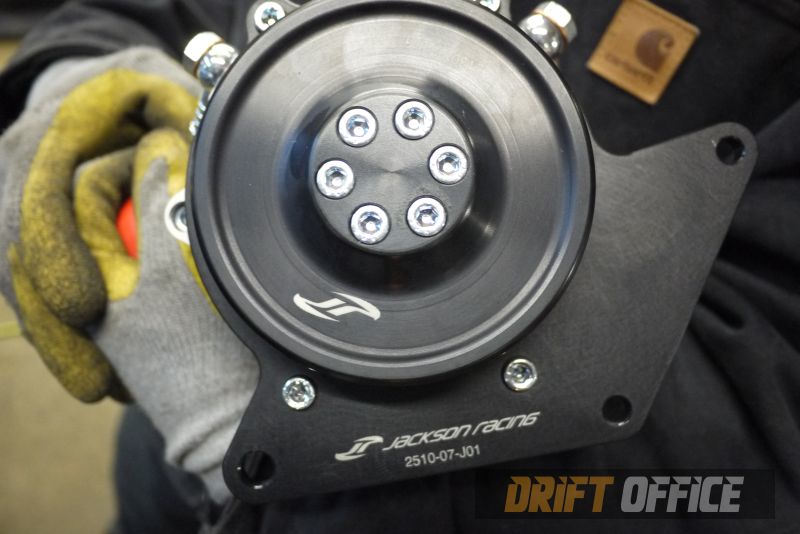

Some other random pics of the parts...

Attachment 59296

Attachment 59297

Attachment 59298


Finally, we'll have to see what this does on the dyno! :)


Bob @ Drift-Office, LLC

Great pics! Can't wait to see the comparisons :)

Don't worry, most silicone tubing can be very strong depending on the manufacturing. Talking like 200+ psi. Maybe even higher depending on the wall thickness.

Looking goooood!

Awesome so far looks like everything fits pretty good!

looks to me like he was referring to how close it is to the pulley

That's a wide chasm if you think that's close, compared to Vortech's that is.

Ref : http://www.ft86club.com/forums/showthread.php?t=43053

http://www.ft86club.com/forums/attac...4&d=1375249513

Cheers!


Bob @ Drift-Office, LLC

Wil you tune on pump or e85 ?

Strictly 92 Octane Pump... Not a big fan of E85 sorry!

Cheers!


Bob @ Drift-Office, LLC

I think hes talking about the abrupt change just before the throttle body.
http://www.ft86club.com/forums/attac...6&d=1386385301

I'm going to put my two cents in about this. I think you guys did an amazing job on installation and not going to down on you guys.
That being said I feel like litchfield did a better job with the rotrex setup.
http://www.evo.co.uk/images/front_pi..._584236_25.jpg

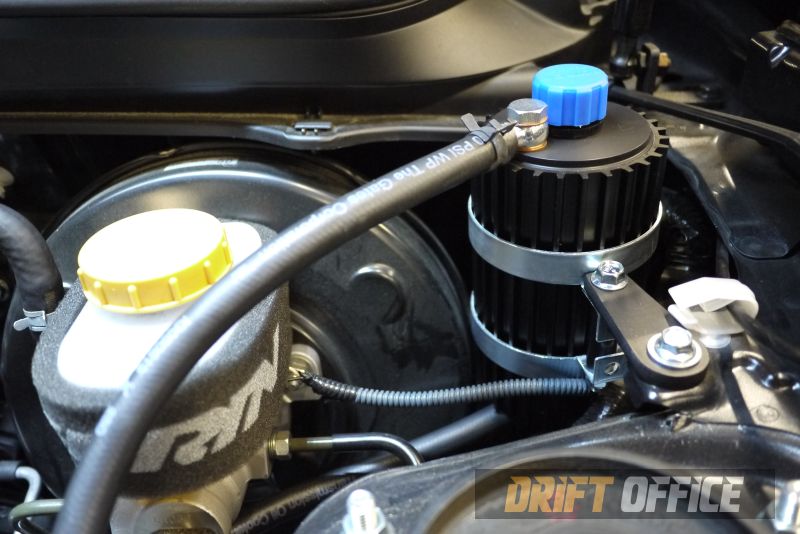

Thanks for the pics! The JR kit is my favorite SC for this platform now, everything except the silicone inlet looks really nice. I especially like the location of MAF, oil bottle and air filter (maintenance-friendly). And the stock washer bottle is kept - my number one priority for any FI kit :)
