NLM - Full Blown turbo kit with a twist


So after a few months of waiting for parts, ceramic coating, powdercoating, and just general scheduling problems, yesterday was finally the day to start installing the turbo kit on our BRZ.

After much deliberation we decided that the Full Blown turbo kit was going to be the best "fit" for our needs. What attracted me to the kit was that it used standard turbo components, excellent turbo placement, and no need to use an oil scavenge pump for the turbo oil drain. However we wanted to be a little different than the normal off the shelf kit, so instead of using the standard Garrett GT28, we decided to use the new Precision 55/58 CEA V-band ball bearing turbo. Going with that option meant that we have to make our own down pipe, and possibly make some revisions to the intake and intercooler piping. To make matters as "bolt on" as possible we are using off the shelf MXP catback exhaust and front pipe, with the beautifully constructed MotivConcepts overpipe. (if you haven't bought an overpipe or catless front pipe yet Motiv Concepts is absolutely the way to go) I was originally planning on doing a 3" custom overpipe/front pipe but spacial clearances between the engine and subframe were to prohibitive, and the effort to make it work vs. the gains netted at our power level did not seem worth it. In the near future we plan on running E85, so we had the guys at Fuel Injector Clinic set us up with their 1100cc injectors high impedance injectors. We have used these on WRX/STI builds in the past with great sucesss, and expect the same result with the BRZ.

Knowing that with this setup we plan on making AT LEAST 350whp, a clutch/flywheel, upgraded radiator, and a custom oil cooler were going to be must haves, so this was also the time to do this.

OK so we have a lot of work to do... I headed over to our "unofficial" install facility JMR Garage in Deer Park NY. Two of my best friends Junior Mahabir (owner) and Vito (mechanic) were going to assist me with install. Plus combined they have about 50k in Snap On tools + Miller welders which certainly makes things easier.

Parts list to be installed over the next couple days
------------------
TURBO KIT
Full Blown premium V-band manifold
Full Blown intercooler kit
Full Blown intake
Full blown oil lines
Precision 55/58 CEA ball bearing V-band turbo charger
JMR Garage custom downpipe
JMR Garage custom catch can
Tial Q BOV
Tial 44 MVR wastegate
Fuel Injector Clinic 1100cc injectors
DW 65C fuel pump
Motiv Concepts overpipe

ELECTRONICS
Ecutek tuned by Visconti
Electronic boost control solenoid
Stack LTD boost gauge + DCW gauge pod
Omnipower 3 BAR MAP sensor

DRIVELINE
ACT Streetlite flywheel + street clutch (SS disc)
Whiteline transmission mount insert
Whiteline rear end bushings

COOLING
Koyo Racing radiator
Venair coolant hose kit
Custom oil cooler kit using Mocal 19 row core, sandwich plate, and 10AN lines

http://i.imgur.com/RqWINAT.jpg

nice cant wait to see dyno chart with the precision turbo

OK so first thing we decided to tackle the ACT clutch, flywheel, and the Whiteline suspension bushings. We wanted to do this install, than drive the car to make sure everything was right, before going any further with the turbo kit install

On the lift, working on getting the transmission down. This clutch job turned out to be SUPER easy, due to the fact that all the bolts are very easy to get to, plus it is a "push" style clutch which means you can drop the transmission which the release bearing attached to the clutch fork. I wish Evo's and WRX/STI were like this.

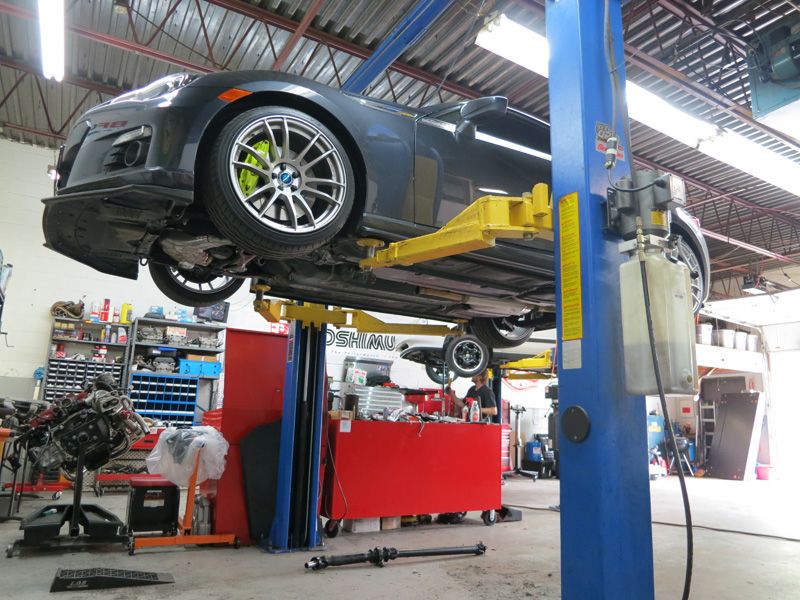

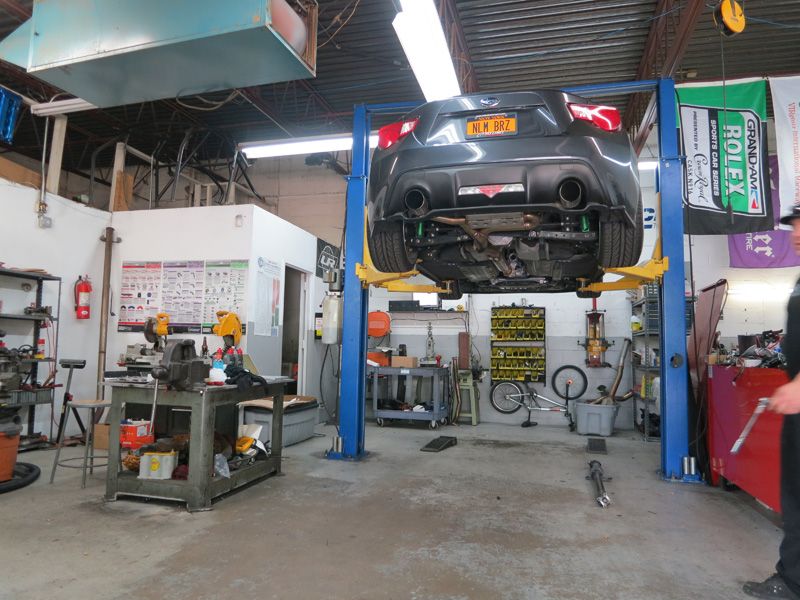

Car up on the lift
http://i819.photobucket.com/albums/z...ps601cbc6e.jpg

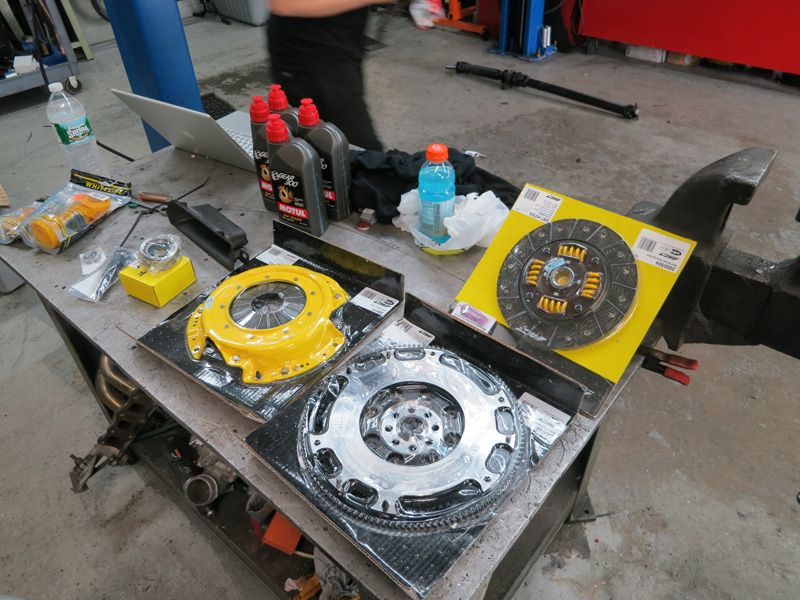

The goods

http://i819.photobucket.com/albums/z...ps4dc9cc8f.jpg

http://i819.photobucket.com/albums/z...ps1f005108.jpg

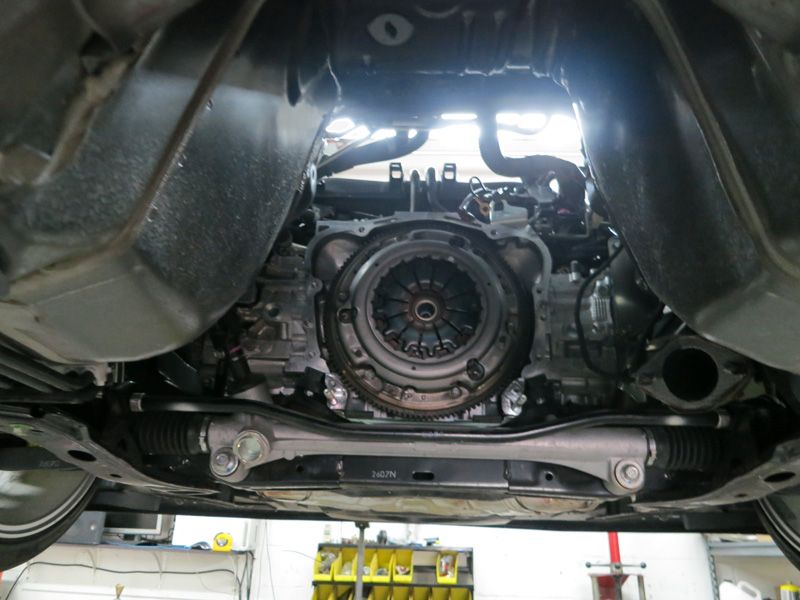

Transmission down, our first look at the stock clutch/flywheel

http://i819.photobucket.com/albums/z...ps06a629b2.jpg

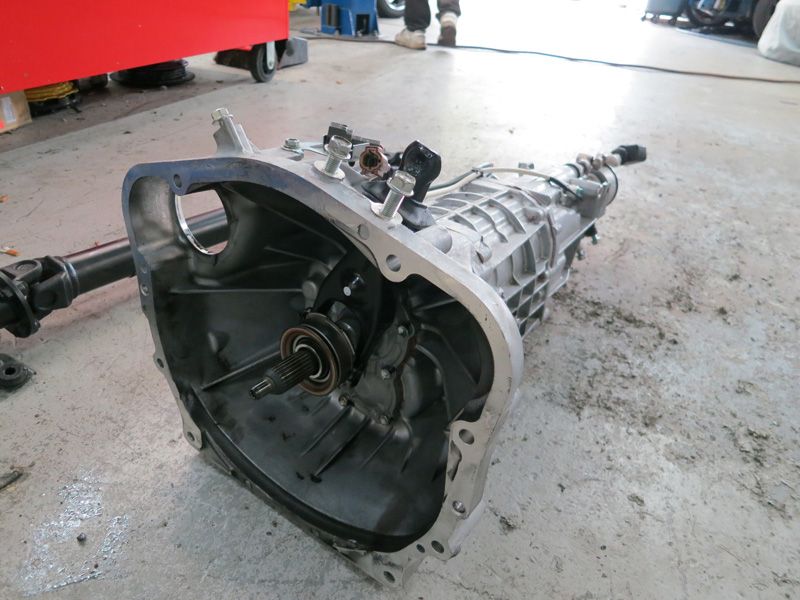

Here is the transmission, notice the release bearing still attached.

http://i819.photobucket.com/albums/z...ps6aa48003.jpg

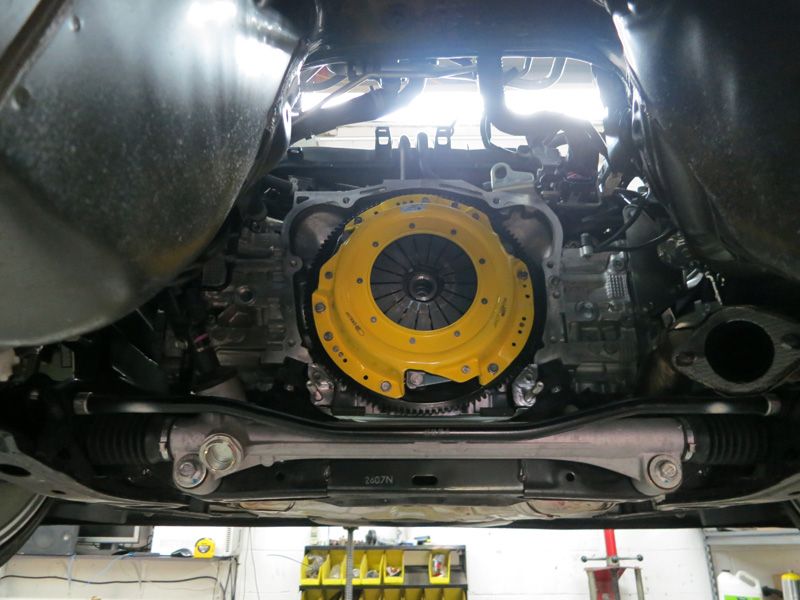

ACT clutch/flywheel bolted up

http://i819.photobucket.com/albums/z...psbf81cc66.jpg

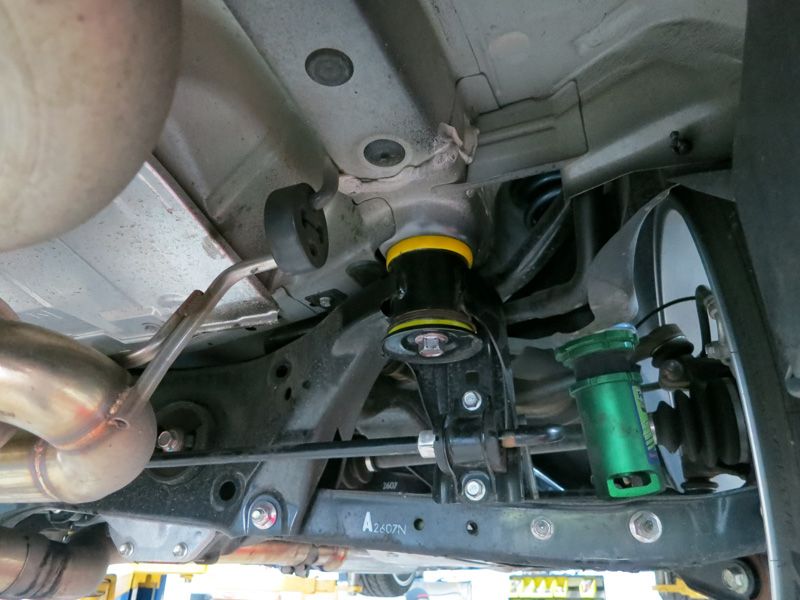

Next up was the Whiteline subframe bushings. Also easy job on the lift. For future installers, do both left side bushings together, than the right side. If you tighten everything down as you do each bushing there will not be enough clearance to fit the others

http://i819.photobucket.com/albums/z...ps3b2bcfa4.jpg

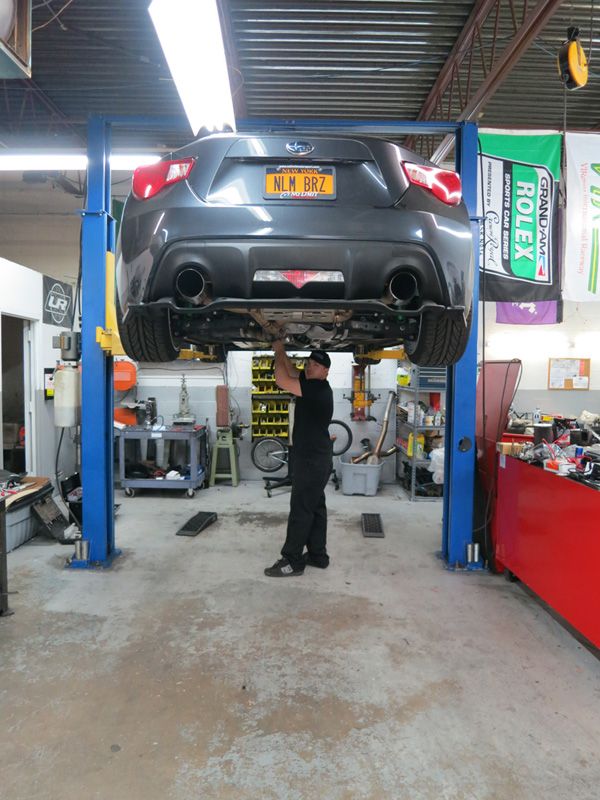

Here is a picture of Vito buttoning up the transmission. Last thing to do was fill it back up with some Motul Gear 300

http://i819.photobucket.com/albums/z...ps62f07352.jpg

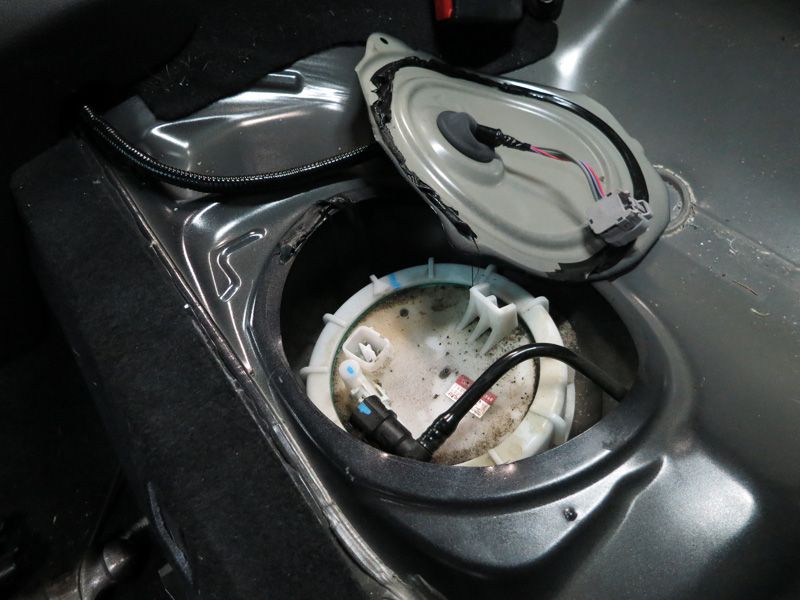

Next up was the DW fuel pump. Getting the stock pump out was easy. Remove drive side rear seat bottom, remove this panel that is attached which this sticky black goo, than spin the white collar off to remove fuel pump assembly. Unfortunately I didn't take anymore pictures of this.

The install instructions on the DW fuel pump are kind of poor, but with the help of this forum I was able to figure out what we needed to do. The way this thing mounts in there is kinda sketchy but I am confident we got it right, and we knew we did when it fired up first try after install.

http://i819.photobucket.com/albums/z...psfb8f966f.jpg

Here is the turbo, blow off valve and some other parts laid out. We had the turbo and blow off valve powder coated to match our brake calipers. We also had the manifold and turbo exhaust housing ceramic coated.

http://i819.photobucket.com/albums/z...ps18338fb3.jpg

http://i819.photobucket.com/albums/z...pse3528a72.jpg

Next up was removing the stock intake box and other associated parts

Here is some stuff taken off

http://i819.photobucket.com/albums/z...psc3a00f61.jpg

At this point we decided it would be best to get the radiator, and hoses done so we pulled all the stuff needed to do the radiator, plus drain the coolant. Notice the radiator support taken off

http://i819.photobucket.com/albums/z...ps43ce8e47.jpg

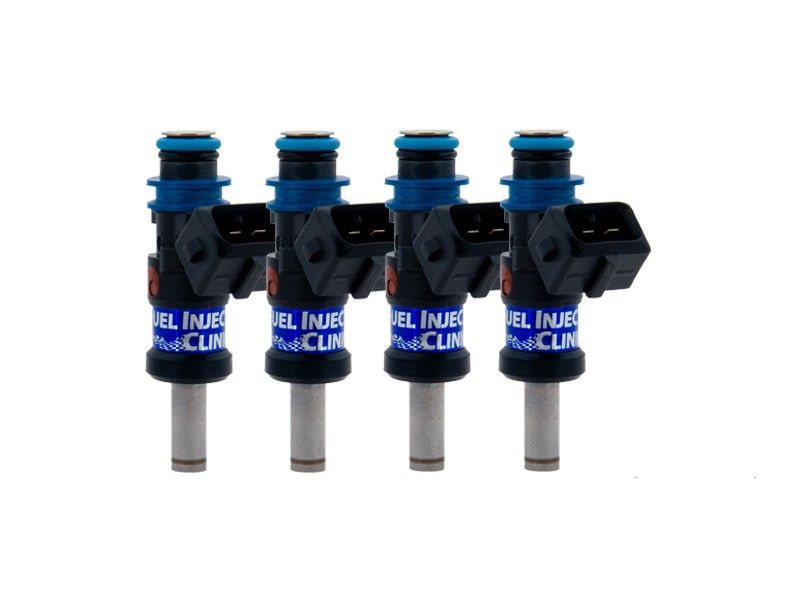

Once we got that out, somehow we got distracted and decided to do the fuel injectors. I think it was the fact that we could literally stand in the engine bay to work that made us do this. Unfortunately I didnt take a picture of our specific injectors but here is a picture of what they look like. They are direct drop in, and come with plug-n-play adapters so no cutting or splicing involved

http://i819.photobucket.com/albums/z...ps67980762.jpg

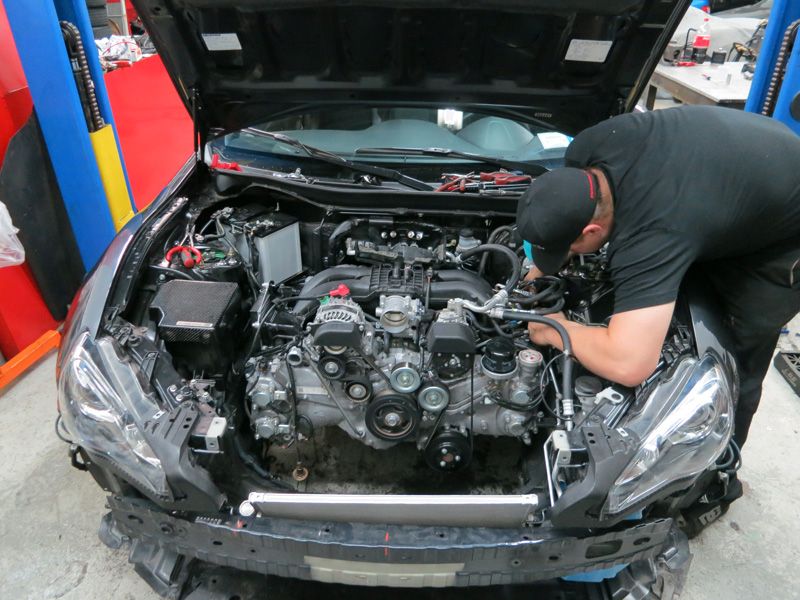

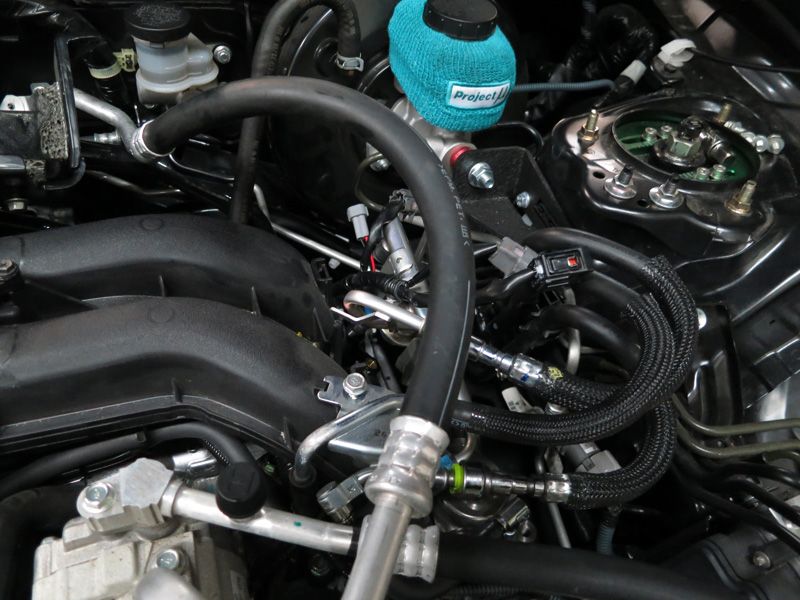

To install them you need to remove these heavy metal covers that go over the injectors. All in all the injectors only took around 30 minutes to install. We pressurized the fuel system, and presto no leaks!

http://i819.photobucket.com/albums/z...pse42a7bbd.jpg

http://i819.photobucket.com/albums/z...psd969a79d.jpg

http://i819.photobucket.com/albums/z...ps71e6d6b1.jpg

Next up was to install the Full Blown slim fans onto the Koyo radiator. I didn't take any pictures of this. Just required using the included fan mount kits, and attaching a couple connectors to the fan wires.

The stock radiator is pathetically slim. Once you see it out of the car you realize how inefficient it will be with a turbocharger. Next time I am at the garage I will take a picture of it, but the core can't be more than .5 inches-ish thick. The Koyo isn't huge either, however it is considerably larger than the factory. To me this is "must have" item.

https://sphotos-a.xx.fbcdn.net/hphot...30538000_n.jpg

Once that was done we did the intercooler core which required removing the bumper beam and slotting some holes.

http://i819.photobucket.com/albums/z...pscee79320.jpg

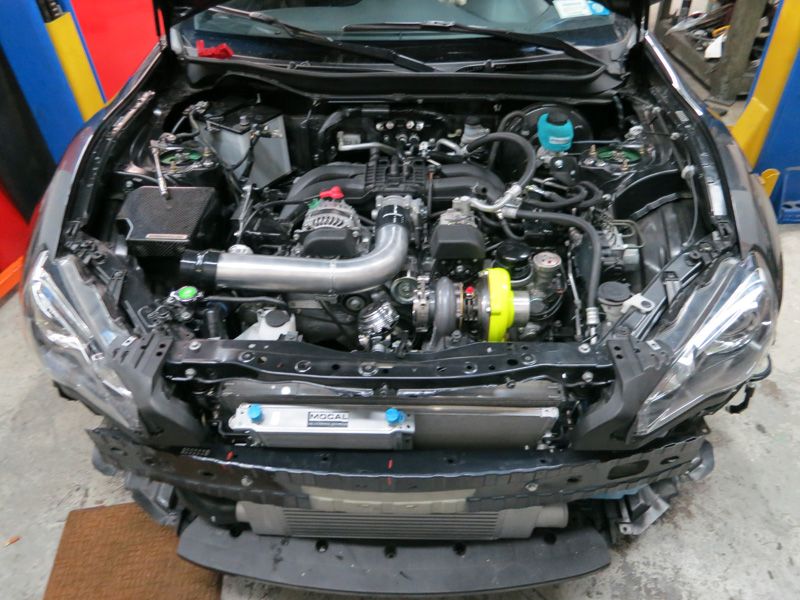

Now it was time to decide where to mount the oil cooler. On the BRZ there are not many good places for it to go unless you want to remove the fog lights and make a custom bracket. Even with that I could see intercooler pipe clearance issues. We decided to mount it in the void in the bumper where the air filter goes. I know this isn't ideal but I think the radiating effect alone of the cooler will be sufficient.

http://i819.photobucket.com/albums/z...ps07d0cca3.jpg

http://i819.photobucket.com/albums/z...psbe0dfc7b.jpg

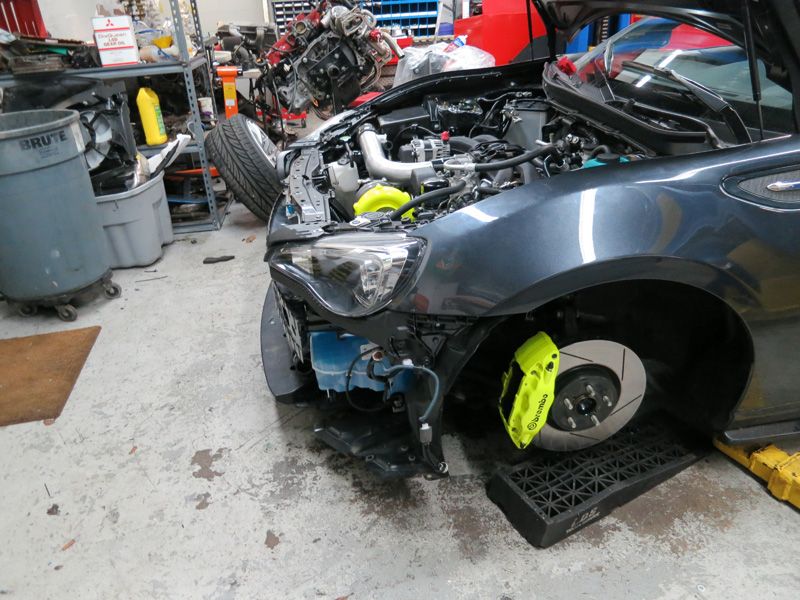

We also wanted to test fit the kit so we loosely bolted everything up.

http://i819.photobucket.com/albums/z...ps9454e3a6.jpg

http://i819.photobucket.com/albums/z...pscb91e5ea.jpg

http://i819.photobucket.com/albums/z...ps35a56cfb.jpg

So that was it for yesterday. I think we accomplished a lot for one day.

On Monday we will try and finish up the mechanic end... what we still need to do

Weld oil return flange to oil pain
Custom make downpipe with wastegate recirculation
Modify intercooler piping/intake?
Custom make a catch can with a vent on top
Install turbo oil feed line
Install boost gauge
Install electronic boost solenoid
Make oil cooler lines


Than I can head over to MR Performance in Mineola NY so I can have Mr Visconti custom tune it on Ecutek.

looks good so far!!!

Good stuff - what are you using for engine management?

Ecutek. Since Visconti is local to us, having him custom tune it, is the best option.

Right on. I'll be scheduling some time with him over at MR Perf as soon as I can line up some time as well. When do you plan on doing yours? Would love to see the dynos.

In a perfect world, sometime this week. It depends on how fast Junior from JMR can make the catch can, and downpipe, and on Visconti's schedule

We need to have the car done and ready for the Wicked Big Meet, June 9th http://www.wickedbigmeet.com/ in CT since we have a lot invested into it.

Totally stopping by at some point to see this bad boy
