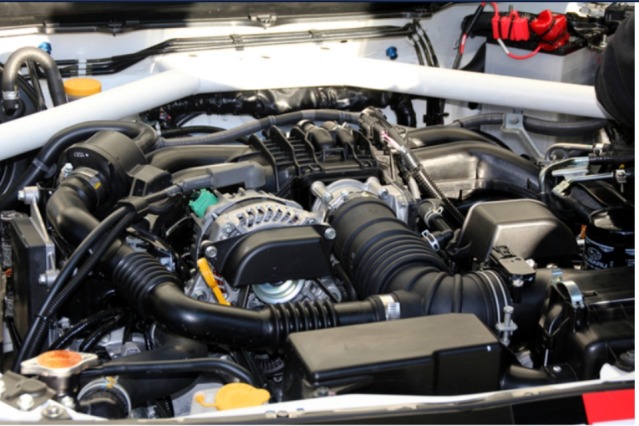

Pic of FT-86 / FR-S engine leaked out?


Don't know if it was posted found it at motos facebook page

Attachment 2367

I like the chassis reinforcement...wonder if that'll be standard?

Repost

http://www.ft86club.com/forums/showp...&postcount=253

Is it really? Interesting to see the subaru marking whatever that is, im noob to boxer engines so i can't make out what it is. First guess was oil filter but thats an odd place o.o.

That is the oil filter.

I wonder why the radiator is mounted almost on the side and the size of it?

I'm guessing it's mounted under the core support and it's just that the cap is put over there for room?

http://www.tyandriel.de/smile/megalol.gif who unsharpened the pic!?!? look at the original...

Q: what is motos? i´m not on facebook. but would be nice if somebody could make a statement there about the origin of the pic... that´s no leak, a normal person made this at the Nurburgring.

Is it just me or the air injection tubing really big?

Looks like a sound induction tube to me.

Does anyone have a link to Moto's Facebook page?

Looks cramped to me. Anyone think you can still fit a SC/turbo in there? I guess it is difficult to tell from just one pic without seeing it in person.

I guess there will be some space to put in a turbo in back of the engine.

Not sure about intercooler.

For me, a small ball bering turbo that can gives it 75-100 bhp gain will be great!

On boxer engines the radiator cap is remotely mounted from the radiator itself. The radiator is in the usual place under the core, and cap/fill point is closer to the intake manifold.
