We took our employee’s 2013 BRZ out to the shop to install the Whiteline Front Roll Center Adjustment Kit for the 2013-2014 Scion FR-S and Subaru BRZ. So we looked online to find the installation instructions and decided we would make a fairly comprehensive write-up for you!

Going into this, pressing the ball joint out and back in seemed a little difficult, but once we got started, they pressed right out, and right back in. Guess that’s the beauty of having a new car to work on  . Before we get started let’s see what Whiteline has to say about this product:

Roll Center Kit incorporates 2 steering arm tie rod ends and 2 ball joints and is designed to raise front roll-center geometry after lowering the vehicle and also improve on the original bump-steer geometry. Changing front suspension geometry by raising roll-center, results in substantial increase to roll resistance and significant reduction of suspension compression of outside front wheel during cornering through improved weight transfer distribution. Whilst bump steer correction via extended tie rods aids in minimizing steering angle input during suspension articulation.
So we looked around the shop and found that the only thing we didn’t have was the press kit to press the ball joints out. So every other tool we needed was just laying around to make it easy on us. Here’s what we ended up using.

Keep in mind; you will have to get your car off the ground, securely on jack stands and front tires/wheels off the car to do this installation.

1) ½ in drive ratchet
2) Extensions
3) 17mm, 19mm sockets
4) Vice grips (for that pesky cotter pin removal)
5) Needle nosed pliers
6) Flat tip screw driver (small)
7) Drill with 10mm driver and 12mm driver (for removal of under tray)
8) Pickle fork
9) Hammer
10) Impact (not necessary, but makes things easier)
Here’s a picture of most of the tools we used. We didn’t use the pry bar, but it made it into the picture somehow.

http://rallysportdirect.smugmug.com/...O/IMG_0154.jpg

Ok, now we’re getting somewhere. Since we didn’t have the press toll required to press out the bushings, we ran down to Autozone and grabbed one of these, it worked great!

http://rallysportdirect.smugmug.com/...IMG_0122-L.jpg
http://rallysportdirect.smugmug.com/...O/IMG_0123.jpg

Now that we have all of the necessary tools, let’s get started. First thing we need to take off is the under tray of the car to gain access to the bolts to take the lower control arm off. It’s simply 8 12mm bolts, 4 10mm bolts and 6 plastic clips and it comes right off. Be careful as it might just fall off when you get the last bolt loose.

http://rallysportdirect.smugmug.com/...O/IMG_0093.jpg
To get the clips off, simply slide a small flat tip screwdriver in the head and pop it out and it should slide right out.

http://rallysportdirect.smugmug.com/...O/IMG_0100.jpg
There are five nuts/bolts that need to come off to get the lower control arm out. Some are 19mm and some are 17mm you see which is which once you get started. Here’s a shot of the control arm from below that shows you roughly where they are.

http://rallysportdirect.smugmug.com/...O/IMG_0096.jpg

Bend the cotter pin as such that it slides out from the hole.
http://rallysportdirect.smugmug.com/...O/IMG_0102.jpg
Now take the castle nut off.
http://rallysportdirect.smugmug.com/...O/IMG_0104.jpg

Now that the nut is loose, just tap the top of the ball joint being careful not to damage the threads, and it should pop right out.

http://rallysportdirect.smugmug.com/...O/IMG_0105.jpg

Now we can move to the front of the car and undo the bolt and nut that holds the front/lower control arm bushing in place.

http://rallysportdirect.smugmug.com/...O/IMG_0109.jpg
http://rallysportdirect.smugmug.com/...O/IMG_0110.jpg

Pull the pin out of the ball joint that connects to the hub spindle.

http://rallysportdirect.smugmug.com/...O/IMG_0112.jpg
Then, simply break the nut loose and thread it off.

http://rallysportdirect.smugmug.com/...O/IMG_0113.jpg

Now take your pickle fork and spread the ball joint loose. This shouldn’t take a whole lot of effort.

http://rallysportdirect.smugmug.com/...O/IMG_0115.jpg

Now we can move on to the rear bolt/nut. Just get a ratchet on one end and wrench on the other and it should come right out.

http://rallysportdirect.smugmug.com/...O/IMG_0114.jpg

We loosened the tie rod end locking nut while it was still installed because it will be a lot easier to to it on the car, than trying to hold it while doing it off the car

http://rallysportdirect.smugmug.com/...O/IMG_0097.jpg

http://rallysportdirect.smugmug.com/...IMG_0098-L.jpg

We took our sharpie to mark the threads on the tie rod to make sure we got as close as we could to factory specifications when reinstalling the new tie rod ends.

http://rallysportdirect.smugmug.com/...IMG_0103-L.jpg

Now that we have it loose, let’s go ahead and pull it out. The whole assembly is now ready to come out of the car.

http://rallysportdirect.smugmug.com/...O/IMG_0116.jpg

Just wiggle it a little bit and it will come right out.

http://rallysportdirect.smugmug.com/...O/IMG_0117.jpg

Then we threaded the tie rod ends off and grabbed out new Whiteline replacements! Man, they look good. You can definitely see the height difference from stock to these replacements. That’s what it’s all about!

http://rallysportdirect.smugmug.com/...O/IMG_0106.jpg

http://rallysportdirect.smugmug.com/...O/IMG_0107.jpg

Installation of these is extremely simple, just thread them back on the tie rod in place of the stockers keeping in mind the marks you made on your threads to line them up as close to factory specs as possible.

http://rallysportdirect.smugmug.com/...O/IMG_0108.jpg
Phew, now the fun part begins

http://rallysportdirect.smugmug.com/...O/IMG_0118.jpg

First thing you need to do before removing the factory ball joints is getting the dust boot off. Just take a flat tip screw driver and work your way around the boot prying upward and it will come off. There will be quite a bit of grease when you get it off, just wipe it off with a rag.

http://rallysportdirect.smugmug.com/...O/IMG_0121.jpg

After that’s done, we can take the ball joint tool out of our press kit and press the old one out, we had the #2 sleeve on the bottom with the ball joint tool and the #3 sleeve on the top to press it out. It worked pretty slick. It seemed like it wasn’t going to work at first, but it slowly worked right out. Be patient here.

http://rallysportdirect.smugmug.com/...O/IMG_0131.jpg

Now that we have the old one out of the way, let’s press the new one in. this is VERY simple; pull it through from the bottom like this

http://rallysportdirect.smugmug.com/...O/IMG_0132.jpg

Now put the #2 sleeve on the bolt side and press it in straight on the ball joint itself. Be sure to press it all the way in, there shouldn’t be any gap

http://rallysportdirect.smugmug.com/...O/IMG_0134.jpg

Here we are placing the assembly back onto the car. It seemed to be easiest to slide the forward most bushing in place first, and then slide the rear one in, then work on the ball joint into the spindle.

http://rallysportdirect.smugmug.com/...O/IMG_0144.jpg

Line up the hole in the rear of the control arm and slide the bolt in and thread the nut. Don’t tighten it down just yet.

http://rallysportdirect.smugmug.com/...O/IMG_0145.jpg

Take your front bolt/nut/plate and replace them in the front position, keep these loose as well (for now)

http://rallysportdirect.smugmug.com/...O/IMG_0146.jpg

Then slide the ball joint into the hub assembly might be slightly tricky, but it will slide in.

http://rallysportdirect.smugmug.com/...O/IMG_0147.jpg

Place the tie rod end in the rear of the spindle.

http://rallysportdirect.smugmug.com/...O/IMG_0148.jpg

Thread on all respective nuts and tighten them to factory specifications.

http://rallysportdirect.smugmug.com/...O/IMG_0150.jpg

http://rallysportdirect.smugmug.com/...O/IMG_0152.jpg

You can replace the under tray and you’re ready to go! That wasn’t so bad, was it? Now you can enjoy the benefits of having the Front Roll Center Adjustment Kit installed! Get your car on the track and experience the difference this product makes in handling!


For more information on the Whiteline Roll Center Kit, please click here!
http://www.rallysportdirect.com/cata...ca435_1_sd.jpg

Originally Posted by *KID* (Post 1269389) sweet. Awaiting for review.

Originally Posted by rainmonkey (Post 1297010) this might be a silly question but when you lower the car, it changes the roll center. This kit raises the roll center right? But how do you adjust to make it 'correct'? I mean it can't just be a one size fits all can it? I don't know much about suspension stuff and I'm trying to learn, but this really confuses me. Just installing the kit - how does it 'know' what level to go to? Thanks!

Originally Posted by rainmonkey (Post 1297984) In that case, if you didn't lower the car TOO much, don't you run the risk of making the roll center HIGHER than it originally was (pre-lower)?

Originally Posted by Deathkaos (Post 1455828) Hello Will I need a wheel alignment after installation by any chance? Sorry if this is a stupid question. Thanks

Originally Posted by RallySport Direct (Post 1298725) Ideally you would only want to use these if the car is lowered

Originally Posted by BRZTimeTrials (Post 1455995) What if the car is only lowered by 20mm?

Originally Posted by Andreas83 (Post 1556015) Will clearance between wheel barrel and tie rod be smaller or larger with this kit installed? Some people are having issues with rubbing when combining wide wheels with high offset. I am considering 17x9et45 rpf1 on my brz, I know that they will rub slightly on the tie rods.

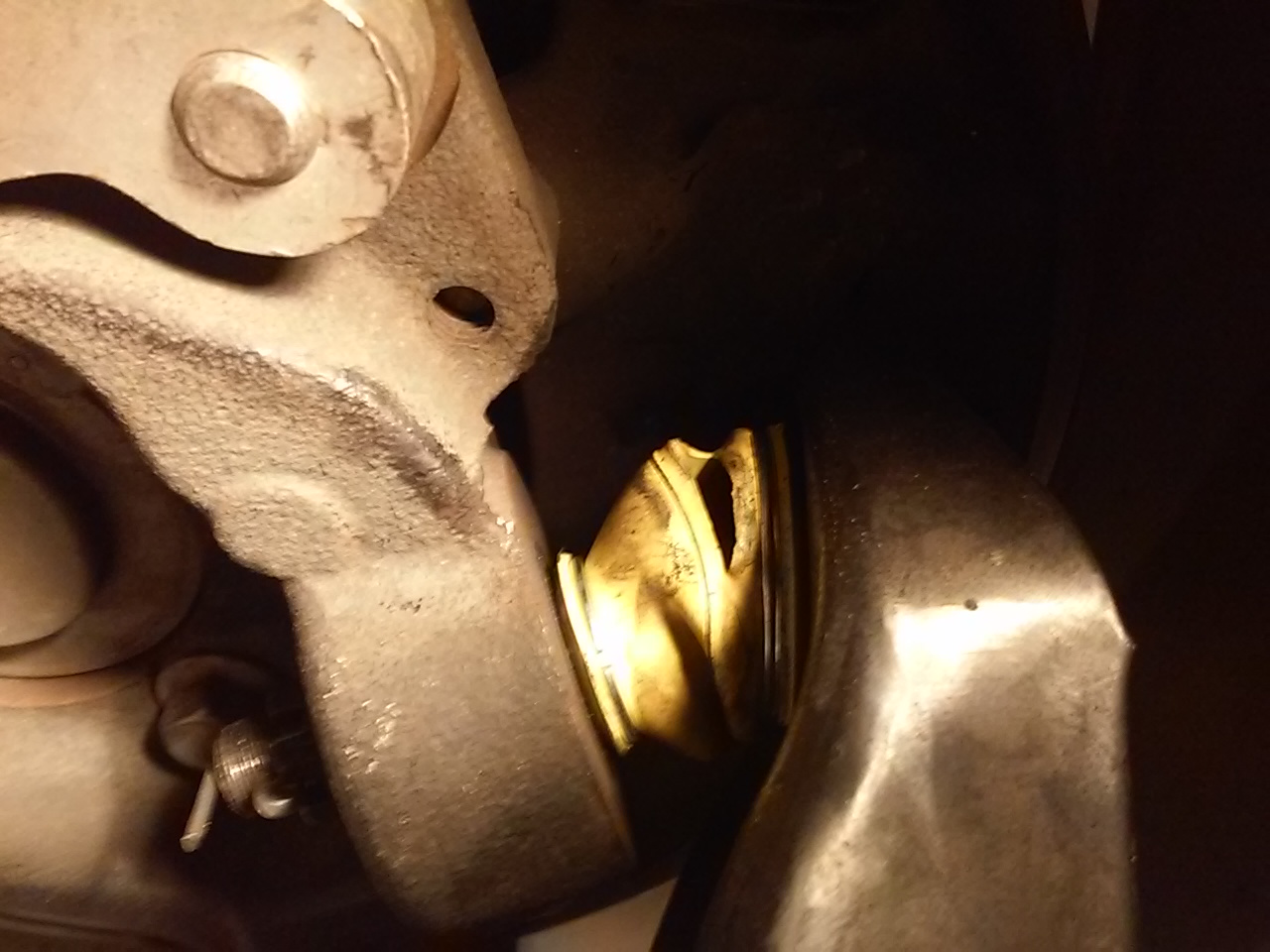

Originally Posted by twag4 (Post 2768840) If anyone is interested: I know whiteline discontinued these, but there are still some available. I had the same problem with my kit. After being installed for around 6 months, one of the ball joint boots was torn, and the other, as well as the two tie rod ends were about to tear. In Oder to get them replaced, or get my money back, I was going to have to pull them all off, send them back, wait for a determination, and then get a replacement set or a credit. Meanwhile, put stock stuff back on and pay for re-alignment. No thanks. I found this website http://dustboots.eu/catalogs/ball-jo...boots-size.htm. When I measured the stock boots from my Oem parts, then found the closest fit on that website, it took me to an eBay vendor. I ordered these two: http://www.ebay.com/itm/161717483491...%3AMEBIDX%3AIT, and http://www.ebay.com/itm/161802538801...%3AMEBIDX%3AIT. I have them on now, they are polyurethane, and much tougher than the whiteline dustboots. They are slightly larger, which is what I believe was the problem with whiteline ball joint boots- too small. There was zero contamination in the one with the torn boot, as I believe I caught it in time. Anyway, buys me some time to get some better roll center ball joints. BTW, I love the whole of all my suspension mods. These fixed the vagueness I felt in the steering when I lowered my car.

Originally Posted by twag4 (Post 2768986) The bigger one I used on the ball joint, smaller on the tie rod. I ordered several sizes, but these worked. They don't have the exact sizes that I measured. I even reused the metal retainers on the new boots. The top one on the ball joint I had to spread a little using needle nose pliers. I placed the metal ring on the outside of the pliers jaws, then spread it open. Once installed, I crushed it back on with channel locks.

Originally Posted by TRAKRAVN (Post 3185367) Have these other dust boots been holding up well? I have a set of these and I’m most likely going to change the boots before installing them in the first place.

Originally Posted by Zach3794 (Post 1556146) What I wanna know is how much these raise the roll center by exactly. For those of us that may have coilovers and care, but don't want to shell out cash for completely custom arms, we can adjust our height to compliment these roll center adjusters perfectly :)

Originally Posted by Exrald (Post 3335280) I'm wondering about this too... Sent from my SM-G965U using Tapatalk

Originally Posted by NoHaveMSG (Post 3335305) It looks like it was around 4-6mm, I didn't measure. I am sure they would tell you if you contacted them and asked.
