DIY: APR Door Mirror Install

http://rallysportdirect.smugmug.com/...IMG_0016-L.jpg
http://www.rallysportdirect.com/cata...8032b_1_lg.jpg
http://www.rallysportdirect.com/cata...8032b_8_lg.jpg

First things first, always inspect the products to make sure you have everything and it is in good condition before you start any install. We did and they look awesome!

I see a few people asking how to remove the mirror itself, so let’s start with that even though we started with the door card first.

Just below the mirror, you should see a black plastic cover, and we will pop that off to access the 3 bolts holding the mirror to the door. Fold the mirror all the way back to gain access to the plastic cover pry point.

See that little gap, yep, that is where we will start to pop the cover off.
http://rallysportdirect.smugmug.com/...IMG_0049-L.jpg

Once you get it cracked open, work your way down one side or the other.
http://rallysportdirect.smugmug.com/...IMG_0195-L.jpg

Once one side is fully popped off the clips, the other side should pop right out.
http://rallysportdirect.smugmug.com/...IMG_0196-L.jpg

Now with the mirror cover removed, lets jump back to the door card.
http://rallysportdirect.smugmug.com/...IMG_0176-L.jpg

To remove the door card, we will remove the 1 screw and 1 plastic clip that you can see here.
http://rallysportdirect.smugmug.com/...IMG_0162-L.jpg
http://rallysportdirect.smugmug.com/...IMG_0177-L.jpg
http://rallysportdirect.smugmug.com/...IMG_0158-L.jpg

Once these are out, you can pop the door card off. I started on the front inner portion as there is a place you can get your hand behind the door card. Use a bit of force to get the door card to pop off, but it should go without too much fuss.
http://rallysportdirect.smugmug.com/...IMG_0183-L.jpg

Once the door card is free from the clips, simply slide it up and you will now have access to the wiring harness and the door handle.
http://rallysportdirect.smugmug.com/...IMG_0184-L.jpg

The door handle comes off easily with 2 screws, just make sure to keep those along with the small black plastic retainer.
http://rallysportdirect.smugmug.com/...IMG_0186-L.jpg
http://rallysportdirect.smugmug.com/...IMG_0188-L.jpg

Next, unplug the door's wiring harness. The driver side will have 2 plugs,the passenger side will have 1 plug. These gave a bit of resistance coming out, but just make sure you depress the release all the way and they should slide out.
http://rallysportdirect.smugmug.com/...IMG_0189-L.jpg
http://rallysportdirect.smugmug.com/...IMG_0190-L.jpg

Passenger Side
http://rallysportdirect.smugmug.com/...IMG_0046-L.jpg
http://rallysportdirect.smugmug.com/...IMG_0047-L.jpg

Set the door cards and hardware off to the side, and move onto the wiring harness for the side mirror motors. This harness plug should slide right out.
http://rallysportdirect.smugmug.com/...IMG_0059-L.jpg
http://rallysportdirect.smugmug.com/...IMG_0060-L.jpg

Take note that up behind the insulation, there is a small white plastic “guide” that holds the harness in place, make sure you remove the harness from the guide to avoid frustration and broken parts.
http://rallysportdirect.smugmug.com/...IMG_0058-L.jpg
http://rallysportdirect.smugmug.com/...IMG_0061-L.jpg

The mirror is ready to come off! Grab your 12mm socket and remove the 3 bolts that hold the mirror to the door.
http://rallysportdirect.smugmug.com/...IMG_0197-L.jpg
http://rallysportdirect.smugmug.com/...IMG_0198-L.jpg

With the mirror free, have a buddy help you fish the harness plug up through the door frame. The passenger side came out with ease, where our driver side took a bit more patience, but eventually came out without a problem.
http://rallysportdirect.smugmug.com/...IMG_0202-L.jpg
http://rallysportdirect.smugmug.com/...IMG_0203-L.jpg

I wanted to re-use the rubber mirror grommet, so I had to cut a small portion of the rubber to get the harness plug through it. I re-installed the grommet on the new mirrors and they fit great.
http://rallysportdirect.smugmug.com/...IMG_0204-L.jpg
http://rallysportdirect.smugmug.com/...IMG_0128-L.jpg

I like to pre-assemble the APR mirrors before they go on the car, but you do not have to, as it can be done later.

Use the included hardware to secure the new APR mirror to the door, making sure the grommet and mirror are fully seated and lined up with the door.
http://rallysportdirect.smugmug.com/...IMG_0205-L.jpg
http://rallysportdirect.smugmug.com/...IMG_0134-L.jpg

Have your buddy help you adjust the mirrors, keeping all of the adjustment points finger tight, but loose enough to move freely.
http://rallysportdirect.smugmug.com/...IMG_0148-L.jpg

Once the desired position is found, tighten down the adjustments on the mirror and check for any movement or free play. The mirror should be secure with no movement.
Double check the mirror is in the correct position for yourself and adjust as needed. This is not something you really want to be doing while driving ;)

Time to put that door card back on!
Connect the door/window wire harnesses.
http://rallysportdirect.smugmug.com/...IMG_0191-L.jpg

Screw the door handle back onto the door card using the 2 screws and the plastic retainer.
http://rallysportdirect.smugmug.com/...IMG_0187-L.jpg

Slide the door card back on, make sure it is in the correct location and pop it back into place.
http://rallysportdirect.smugmug.com/...IMG_0154-L.jpg

Screw in the single screw and the plastic clip.
http://rallysportdirect.smugmug.com/...IMG_0181-L.jpg
http://rallysportdirect.smugmug.com/...IMG_0180-L.jpg

You are all done! Well.. not quite, repeat the same process for the other side, and enjoy these beautiful, lightweight mirrors!

http://rallysportdirect.smugmug.com/...980media-L.jpg
http://rallysportdirect.smugmug.com/...917media-L.jpg
http://rallysportdirect.smugmug.com/...035media-L.jpg
http://rallysportdirect.smugmug.com/...971media-L.jpg
http://rallysportdirect.smugmug.com/...99media-XL.jpg

For more info on APR Mirrors click the images below:
http://www.rallysportdirect.com/cata...8032b_1_sd.jpg http://www.rallysportdirect.com/cata...8032b_8_sd.jpg

Thanks,
Rick

All that work and no "installed" shots?! haha Nice writeup though.

Quote:

Originally Posted by NemeGuero (Post 838431)

All that work and no "installed" shots?! haha Nice writeup though.

HAHA I knew this was coming. We will get some proper shots up shortly. I Also installed some other parts on the car, which I will post up soon:)

Thanks,
Rick

Talk about blue balls. ;)

Quote:

Originally Posted by NemeGuero (Post 838567)

Talk about blue balls. ;)

:laughabove: Teasing sure is fun though! Should not have to wait too much longer for an update, and it will be worth it. :)

Thanks,
Rick

That BRZ has really yellow eyes looks like it has liver disease.

Love the mirror though.

Quote:

Originally Posted by chenshuo (Post 838969)

That BRZ has really yellow eyes looks like it has liver disease.

Love the mirror though.

HAHA never thought about that before, in that light it does appear that way. In the right light, the yellow covers are just gorgeous.

Thanks! :)
Rick

How much weight does the mirror swap save? :D

Hmm... Personally I like the stock side view mirrors more, though these actually look better than I thought but If I saw more pictures of the final install...

Nice write up. Very thorough, I could have really used it a couple weeks ago.:thumbsup:

Quote:

Originally Posted by DriftEightSix (Post 839745)

How much weight does the mirror swap save? :D

I will see if I can weigh them for you, give me a bit of time on this one though :)

Quote:

Originally Posted by NorseLegend (Post 839791)

Hmm... Personally I like the stock side view mirrors more, though these actually look better than I thought but If I saw more pictures of the final install...

Yeah, still waiting on my Photographer to get me some proper pictures from his Photoshoot, but they should be up soon.

Quote:

Originally Posted by Lawnik (Post 839863)

Nice write up. Very thorough, I could have really used it a couple weeks ago.:thumbsup:

HAHA I actually rushed to get this up, as I saw a bunch of people asking how to take off the stock mirrors. Wish I had this up sooner though! :)

Thanks,
Rick

Man, I never like removing the door panel. It just doesn't go back on as tight as the first time.

Quote:

Originally Posted by NemeGuero (Post 845039)

Man, I never like removing the door panel. It just doesn't go back on as tight as the first time.

That :(

The mirrors look great though :) If there is real weight to be saved there, I might look into it :)

Got the pictures up of the car on the first post with the APR mirrors, APR front lip and some other goodies installed. Thanks again guys! :)

Edit, car looks too good not to post it here as well!

http://rallysportdirect.smugmug.com/...980media-L.jpg
http://rallysportdirect.smugmug.com/...917media-L.jpg
http://rallysportdirect.smugmug.com/...99media-XL.jpg
http://rallysportdirect.smugmug.com/...035media-L.jpg
http://rallysportdirect.smugmug.com/...971media-L.jpg

Rick

Why did you replace the mirrors? These look off to me, maybe because they are so small.

Thanks for the DIY Rally. Do you know what the weight is for the OEM mirror?

beat me to it I did my install last weekend just haven't got around to doing a write up

Quote:

Originally Posted by BrianJC (Post 861790)

Thanks for the DIY Rally. Do you know what the weight is for the OEM mirror?

I will try to weigh them when I go back out to the shop, but give me a few days on this :)

Quote:

Originally Posted by GC GTS Aero Kit (Post 864348)

beat me to it I did my install last weekend just haven't got around to doing a write up

Nice! How do you like them so far? Took my a bit to get used to the size, but now that we have put some miles on them, I don't really notice it anymore, but I certainly notice how good they look on the car! :thumbsup:

Thanks,
Rick

Quote:

Originally Posted by RallySport Direct (Post 870197)

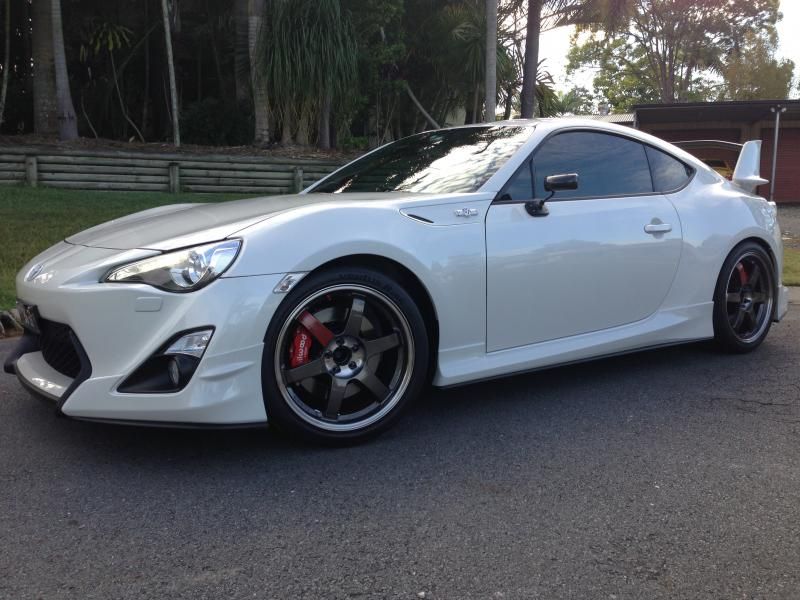

Rick yeah I like them the look especially....The only drama was adjusting the passenger mirror to be just right it was a fiddly process. Worth it now tho

http://img.photobucket.com/albums/v7...0/IMG_4003.jpg

@GC GTS Aero Kit your car is stunning. :clap:

Thanks,
Rick

Quote:

Originally Posted by RallySport Direct (Post 870197)

I like the idea of a lighter and race inspired look achieved by the mirrors. But are there other mirrors out there for our FRS or BRZ with slightly larger mirrors? I really liked the size and looks of the Craft Square carbon mirrors (used in the Evasive FRS and TRD Griffon), but it is not compatible with our cars... In the TRD Griffon it seems they have a custom bracket to make it work, but man do those mirror look badass.

Quote:

Originally Posted by BrianJC (Post 871319)

Not that I have seen, although I am sure there is something out there, or one coming out shortly that will have a larger mirror to it. I will keep my eye out for one :)

Thanks,
Rick

Does larger bumps on the road jar and throw off the mirror position?.. My GTR friend has Craft Squares and his, even after being fully tighten, would still move out of alignment.

Quote:

Originally Posted by GC GTS Aero Kit (Post 870284)

Rick yeah I like them the look especially....The only drama was adjusting the passenger mirror to be just right it was a fiddly process. Worth it now tho

wow talk about perfectly upgrading your twin.. that is amazing. maybe one of my favorites so far. not over the top but not missing anything. beauty.. haha :w00t:

Quote:

Originally Posted by BrianJC (Post 871319)

TRD Griffon use Craft Square mirrors from Japan ($700-$800) uber expensive and I think they would be a custom version or prototype.

Quote:

Originally Posted by GC GTS Aero Kit (Post 878709)

TRD Griffon use Craft Square mirrors from Japan ($700-$800) uber expensive and I think they would be a custom version or prototype.

I've talked to Bulletproof and Evasive (both sells Craft Square mirrors). It seems both cars (TRD Griffon and Evasive FRS build) uses the universal mirror type, the problem is the screws doesn't seem to fit the FRS. So in the case of the TRD if you look carefully at the pics and video, they have a custom bracket that connects the mirror to the door (I've attached one below). Evasive on the other hand doesn't; I've emailed them, didn't fully understand their reply, but it seems they custom welded/mounted it on. Overall it seems you have to do some fancy handy work to make it work. I don't know the first thing about custom bodywork, so I didn't order them.. and yea, they are close to $900.

Quote:

Originally Posted by GC GTS Aero Kit (Post 870284)

Huh, coming back to this thread now and looking at the updated pictures, these don't look to bad. Especially on yours GC GTS.

Quote:

Originally Posted by phatpanda (Post 876966)

Does larger bumps on the road jar and throw off the mirror position?.. My GTR friend has Craft Squares and his, even after being fully tighten, would still move out of alignment.

Not that I have seen, and I have driven it on some pretty rough roads. So far they seem to mount very securely. :)

Quote:

Originally Posted by sweeney208 (Post 878673)

wow talk about perfectly upgrading your twin.. that is amazing. maybe one of my favorites so far. not over the top but not missing anything. beauty.. haha :w00t:

Thanks! :)

Rick

Attachment 36546

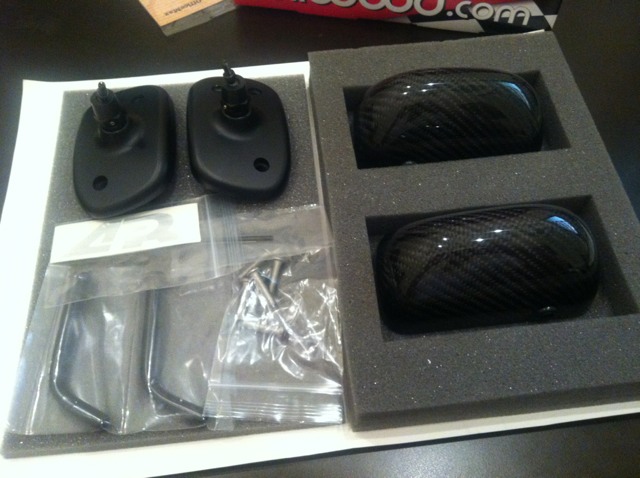

Got mine! Great quality carbon fiber, clean edges, very nicely made base specific for the chassis, perfect fitment all around.
