DIY- Scion Frs Fog lights


Installed these on my Frs a few days back and posted them on here. My indox has been blowing up since then with people asking for part # and a DIY. I put these videos together from videos taken on different days hope they help. Any questions feel free to ask.

Videos:
https://www.youtube.com/watch?v=p5xm...e_gdata_player
https://www.youtube.com/watch?v=C4bF...e_gdata_player

Parts needed:
-H11 harness of your choice
-2 Outback Fog lights Part #84501AJ00A
http://www.subarupartsforyou.com/cp_...p?partid=19073
-JDM Fog light bezel
-4 screws with locking bolt (will go to Home Depot to take pics of what I used)

Reselts!

http://i1102.photobucket.com/albums/...125_162821.jpg
http://i1102.photobucket.com/albums/...125_162825.jpg
http://i1102.photobucket.com/albums/...125_162834.jpg

No lights at all:
http://i1102.photobucket.com/albums/...126_203645.jpg
Fogs on:
http://i1102.photobucket.com/albums/...126_203649.jpg
Fogs + HiD bulbs:
http://i1102.photobucket.com/albums/...126_203658.jpg

HID's only against wall:
http://i1102.photobucket.com/albums/...126_204035.jpg
Fogs only:
http://i1102.photobucket.com/albums/...126_203849.jpg
HID's + fogs:
http://i1102.photobucket.com/albums/...126_204118.jpg[/QUOTE]

good work here!

May i ask what you did with the switch?

Dang, way cheap! I like it :)

great work. strongly considering this for another spring project.

Looks sick good job

NICE! Siked to see someone finally do this.


Did you ever consider wiring it to the fuse box? I feel a bit uncomfortable wiring it straight to the battery.

im doing this! nicely done!

It has a switch so it wouldn't drain the battery. Its wired to only draw power if your parking lights are on. I did a similar install on m friends 06 Si. Gonna do the same on my frs after my parts come in. hehe. Also, IIRC, these lights need a constant source of power. thats why its connected to the battery.

About how much time did this take for you?

Juanito08, sorry but I am confused. What is the purpose of wiring the green wire to the side maker light? Also with the wire you ran through the firewall into the interior what did you connect it to make the fog lights to be controlled by the light stalk? Did you install a new light stalk?

Do your fog lights turn on every time the parking/headlights are turned on? Did you not use a toggle switch to be able to turn the fog lights on and off independently?

Thanks

The green wire is like a remote wire. I tapped into the parking light so that it can come on with the parking light switch. I didn't put in a switch as of yet trying to see where I might mount it first. So as far as right now the switch wires are hard wired to one another

Just a thought I've been tossing around, you might have some luck getting a JDM power folding mirror switch and use that for the fogs.

went to the dealer and got me a pair of fogs for $104.13 taxed.. now, time to wait for the bezels.. can't wait!!

Have any pictures of it? Might see if I can find a part #

What size of bolts do we need?

Order my stuff :)
Cant wait

I can't find anything good right now, there was a thread long ago that showed everything you'd need to turn a USDM FRS into a JDM 86 and that had a better picture if I recall correctly.


You can kind of make it out here. It's next to the mirror adjustment knob.

http://static.autoexpress.co.uk/site...t-86-trd-3.jpg

Nooo why you have to go and do this!

My sister is in Europe right now and I was goin to get here to mass buy me fog lught bezels so I can makekits and sell them. Damn you!

Good job tho haha

id buy a pair from you if the price is reasonable enough.

Pretty well put together. Just curious where I would get the harness at.

Nigel jdm parts

@Juanito08 any luck getting a photos for the bolts that u used for the foglight housing?

so I live in WA and im attempting to order those bezels through the link provided. Is Amayama a legit website?

yes it is, itll take like 2-3 weeks for them to come in

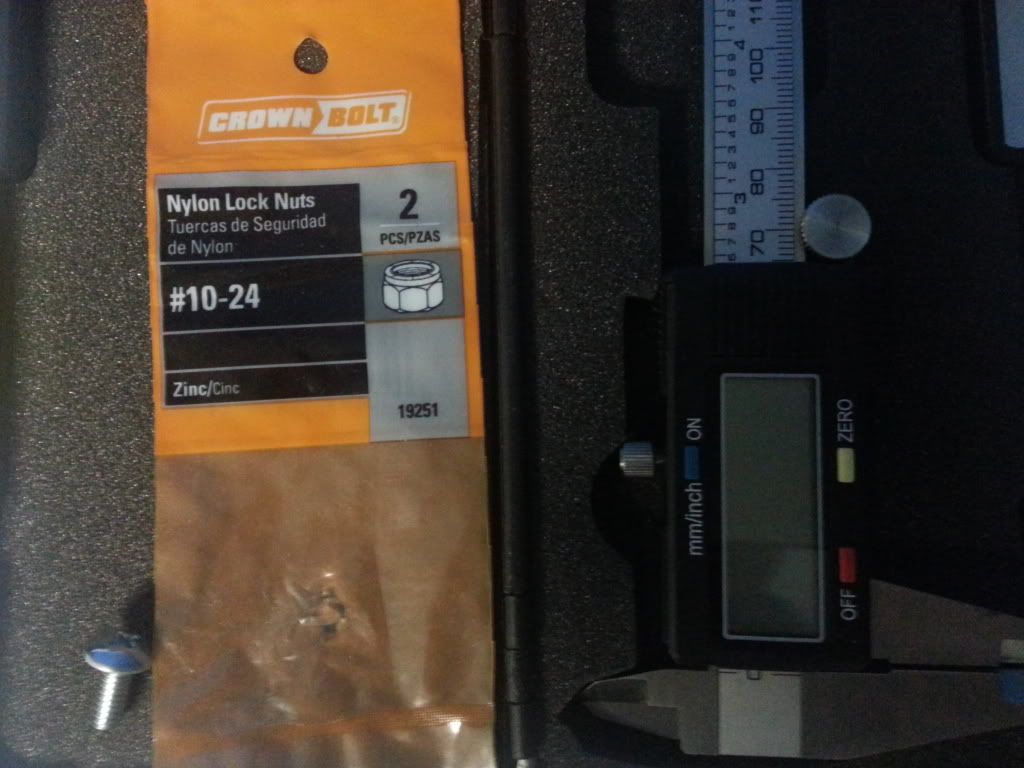

Couldn't find the bag for the screw, got it at homedepot. They also sell a bag that comes with the locking nut and screw

http://i1102.photobucket.com/albums/...207_073758.jpg

http://i.ebayimg.com/00/s/MzYyWDM0NQ..._id=8800005007

I'm using 3 and 2

I know sounds crazy but right after I signed up for amayama website my email account got hacked. Are there anyone else that can confirm the website as well as being legit. Also yahoo just got hit for 400 mil account hacked maybe I was luckily one of them when I signed up for amayama

I haven't had any problems yet, and I signed up a week ago. I ordered the bezels a few days ago, and got confirmation of my order yesterday, so I paid. Good so far (fingers crossed).

No problems with them at all, great customer service

hey Juanito, is this how you wired yours?

http://www.ft86club.com/forums/attac...1&d=1360263301

Yes sir,I ran a ground to the battery(goes to relay) and only the left hand side fog has a ground.

Edit, if you made this yourself you wouldn't even need to go into the fire wall. Fyi but I'm sure you already knew that ;)

@Juanito08 do you happen to have a wiring diagram?

Thanks again for the DIY. Just installed the fog lights today but haven't had time to wire them up yet. I have a bit of a gap between the light housing and bezel and was wondering if anyone else's is like this. There's a gap on both sides. Took me a bit to get all the clips into place correctly but they're in securely
http://www.ft86club.com/forums/pictu...pictureid=3669

Other then the gap I'm happy with the look and will be happier when I finish wiring it all up.

http://www.ft86club.com/forums/pictu...pictureid=3670

Terrible phone pics ftw!

KlafKoon, what lights did you use? The Subbie Outback ones?

Same here, I'm curious if I just didn't push the bezel in far enough or this is just how it is. I'm using the Subaru outback lights that almost everyone else doing this mod for the FRS is using. Can someone else please chime in?

yes thats normal. i have the same gap. i guess the gap is for adjustment or alignment purpose idk.

is it the photos? or did u just installed the foglights upside down lol?

Thanks for confirming the existence of that gap. It's not too big of a deal as someone can easily seal it off with a circle of weather strip or something similar.

They are probably upside down, I didn't pay too much attention to the orientation and just temporarily put them in to see how it'd look, but good eye :)

where can I order the
Fog Light
Harness
Bezel

THANKS.
