Old 12-31-2018, 10:56 AM   #1
Juzzotec
Member

Juzzotec's Avatar

Join Date: Oct 2017
Drives: Toyota 86 GTS
Location: Sydney
Posts: 70
Thanks: 18
Thanked 35 Times in 23 Posts
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)

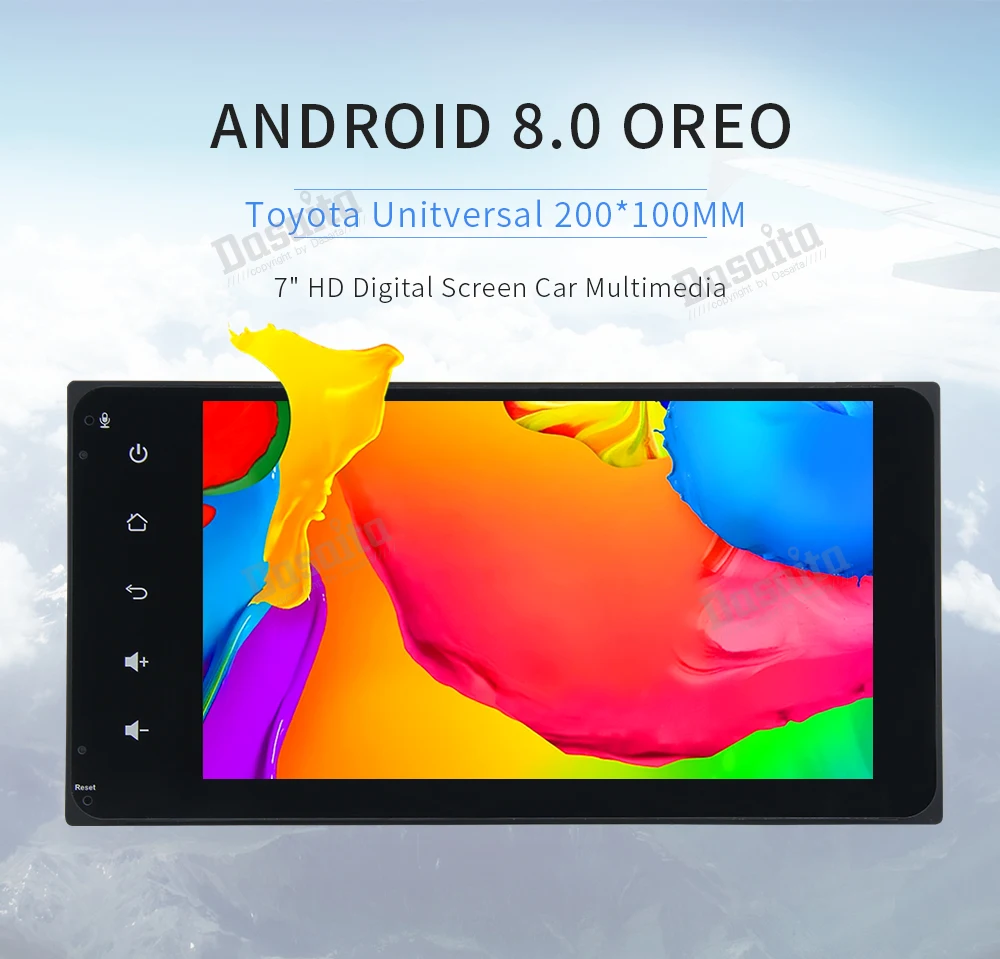

Dasaita 7" Oreo 8.0 4GB+32GB PX5 Octa-core 200x100 Head Unit

Hi Guys

I just placed an order for this head unit, fits our 200x100 Toyota dash.
Currently using the Pioneer AVH-ZL5150 which is also a great unit but very limited in terms of functionality. It does support Carplay & Android Auto and it does have excellent sound but I wanted a Torque interface to monitor oil temperature for track days along with all my current features. These Android units are popular these days and have come a long way in terms of processing power and reliability.
They also support Carplay with the purchase of an additional dongle.

Has anyone used this exact head unit?

Model # HA2135-v840
Specs
CPU: Rockchip PX5 Octa-Core ,64-Bit Coretex A53

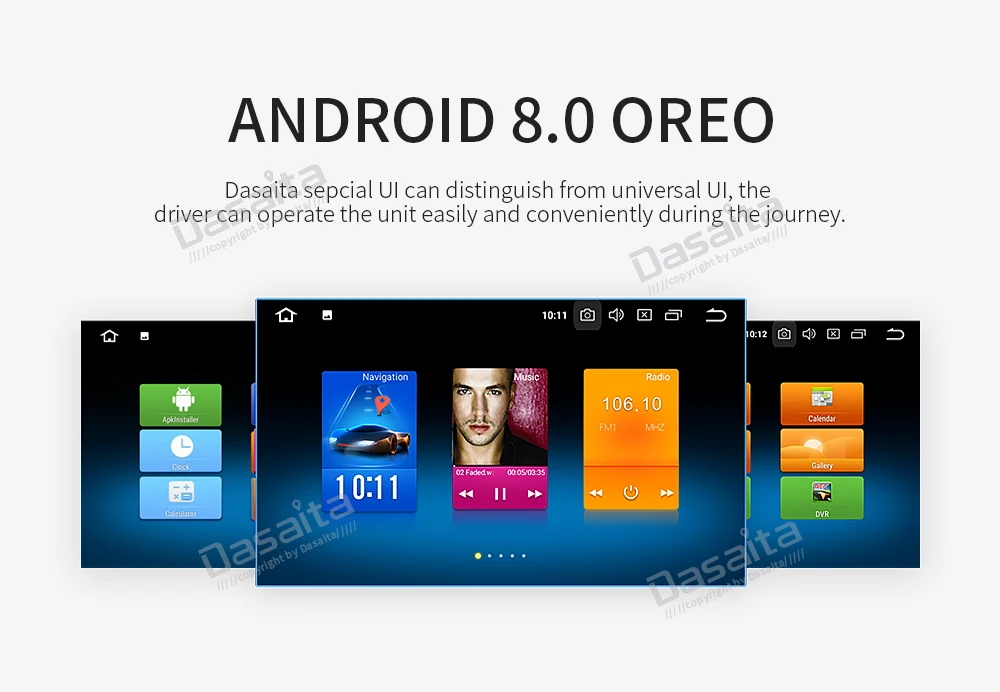

OS: Latest android 8.0 oreo
RAM: DDR3 4GB, ROM: 32GB
Superior amplifier Chip: TDA7850 (4*50W Max)

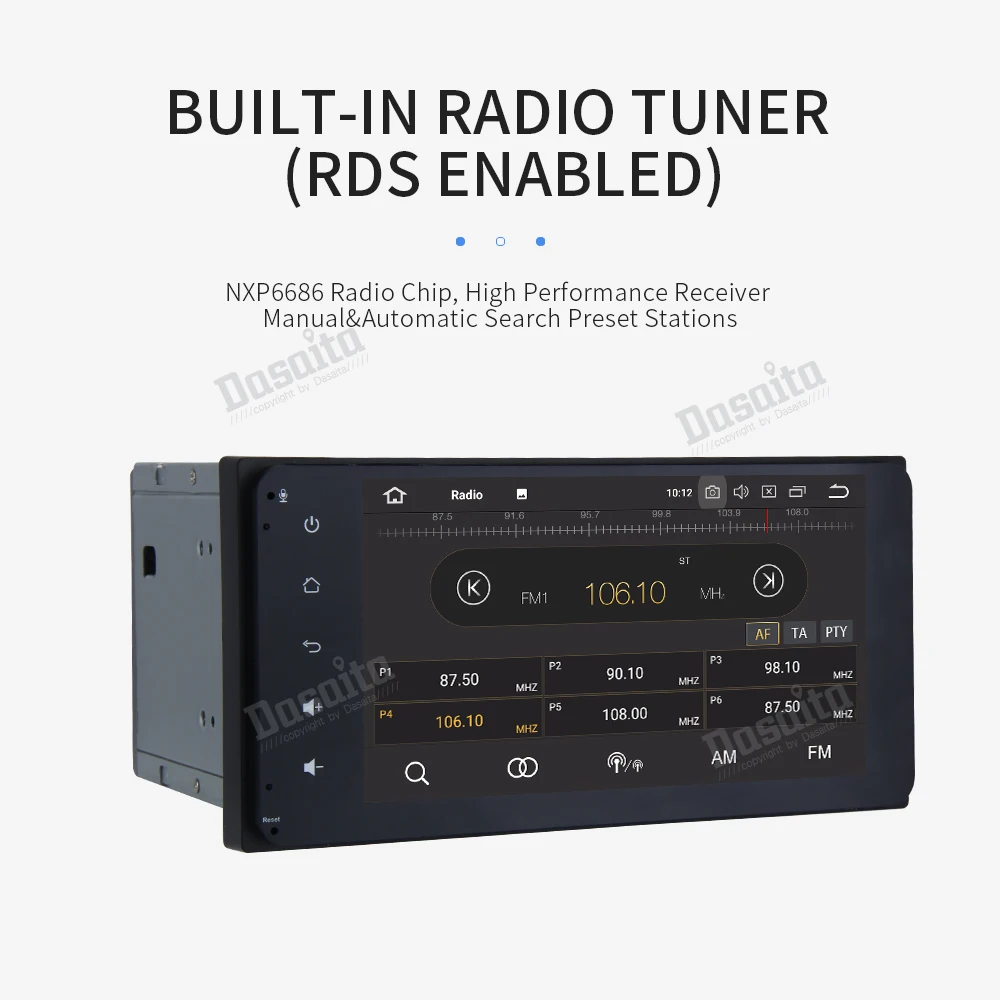

Radio Chip: NXP 6686, Low IF Tuner , High Performance
Screen: Resolution 1024*600 (Capacitive Screen)
Bluetooth: Hands-Free Profile / Audio Profile (A2DP) ; Free 1.5m Microphone
WIFI/GPS
Variable Key Illumination , all RGB colors
Fast Boot time(2nd time): about 3s ;Cold Boot time: about 20-25s






https://youtu.be/VRyLSCDIDe8
https://youtu.be/yfAiwS-PCUg

Links
Aliexpress
eBay

I'll post up a few photos once installed but really interested to hear from anyone who has installed this exact unit.

Juzzotec is offline   Reply With Quote
The Following User Says Thank You to Juzzotec For This Useful Post:
kevaughan (01-14-2019)
Old 12-31-2018, 11:43 AM   #2
redhalo
Member

Join Date: May 2017
Drives: MY17 Raven Toyota 86
Location: Jacksonville, FL
Posts: 54
Thanks: 6
Thanked 27 Times in 19 Posts
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
I have this unit. I like it a lot. It will do Android Auto, but i haven't been able to download it on the play store as it doesn't recognize the device, so getting it on there is up to you. Also, depending on what year your car is, the reverse camera and steering wheel buttons wire up in a few different ways requiring a bit of custom work. I don't recall my exact steps, but I managed to piece it together from posts around here. A good stereo shop should be able to figure it out if nothing else, with the exception of Best Buy. And for god sake, make your fist action be to change the launcher.

I wanted torque as well, but I have an internet hot spot device that plugs into my OBD2 and I havent found a way to chain two devices off of the OBD2 without torque losing it's shit. So it's either internet or torque.
redhalo is online now   Reply With Quote
Old 12-31-2018, 05:55 PM   #3
ST185RC
Senior Member

Join Date: Jul 2012
Drives: White Out FR-S
Location: Canada
Posts: 672
Thanks: 31
Thanked 509 Times in 241 Posts
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
the specs got me. the design is not my taste. i gotta ask, how does the controls feel without tactile buttons?

The bezels really bother me, especially when the top bezel is thinner than the bottom.
ST185RC is offline   Reply With Quote
Old 12-31-2018, 08:07 PM   #4
Juzzotec
Member

Juzzotec's Avatar

Join Date: Oct 2017
Drives: Toyota 86 GTS
Location: Sydney
Posts: 70
Thanks: 18
Thanked 35 Times in 23 Posts
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quote:
Originally Posted by redhalo View Post
I have this unit. I like it a lot. It will do Android Auto, but i haven't been able to download it on the play store as it doesn't recognize the device, so getting it on there is up to you. Also, depending on what year your car is, the reverse camera and steering wheel buttons wire up in a few different ways requiring a bit of custom work. I don't recall my exact steps, but I managed to piece it together from posts around here. A good stereo shop should be able to figure it out if nothing else, with the exception of Best Buy. And for god sake, make your fist action be to change the launcher.

I wanted torque as well, but I have an internet hot spot device that plugs into my OBD2 and I havent found a way to chain two devices off of the OBD2 without torque losing it's shit. So it's either internet or torque.


Awesome, I knew I would find someone who has this unit in the 86/BRZ. Any pics mate?

Maybe as a thought, download the android auto apk from an alternate source.

The reverse camera shouldnít be a big issue since Iím using an aftermarket camera, no need for 6v to 12v adapter. I also donít have steering wheel controls.

Why donít you hotspot your phone? Tbh I mainly bought this unit for torque and dashcommand. Iím also interested in making a custom interface for it in my spare time.

Howís the screen quality and reliability overall?

Appreciate your feedback


Sent from my iPhone using Tapatalk
Juzzotec is offline   Reply With Quote
Old 12-31-2018, 08:10 PM   #5
Juzzotec
Member

Juzzotec's Avatar

Join Date: Oct 2017
Drives: Toyota 86 GTS
Location: Sydney
Posts: 70
Thanks: 18
Thanked 35 Times in 23 Posts
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quote:
Originally Posted by ST185RC View Post
the specs got me. the design is not my taste. i gotta ask, how does the controls feel without tactile buttons?

The bezels really bother me, especially when the top bezel is thinner than the bottom.


Itís a capacitive screen so it would feel similar to a new phone... Iím actually happy not to have tactile buttons.

I actually donít mind the bezel but I get what you mean about the bottom being thicker than the top. Small gripe I guess.


Sent from my iPhone using Tapatalk
Juzzotec is offline   Reply With Quote
The Following User Says Thank You to Juzzotec For This Useful Post:
ST185RC (01-02-2019)
Old 12-31-2018, 10:55 PM   #6
ir1064
Member

Join Date: Jan 2013
Drives: 6MT, C7P
Location: Bayside, NY
Posts: 69
Thanks: 1
Thanked 17 Times in 13 Posts
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
this is another option, but i have no idea how to get it from China.

https://item.taobao.com/item.htm?spm...ucket=8#detail
ir1064 is offline   Reply With Quote
Old 12-31-2018, 11:05 PM   #7
Juzzotec
Member

Juzzotec's Avatar

Join Date: Oct 2017
Drives: Toyota 86 GTS
Location: Sydney
Posts: 70
Thanks: 18
Thanked 35 Times in 23 Posts
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Dasaita 7" Oreo 8.0 4GB+32GB PX5 Octa-core 200x100 Head Unit

Quote:
Originally Posted by ir1064 View Post
this is another option, but i have no idea how to get it from China.



https://item.taobao.com/item.htm?spm...ucket=8#detail


Interesting but Iíd rather stick to the known brands, Joying, Dasaita and Seicane.

I couldnít really get much info since the page is in Chinese.

Sent from my iPhone using Tapatalk
Juzzotec is offline   Reply With Quote
Old 01-11-2019, 05:42 PM   #8
ka-titties
Member

Join Date: Nov 2016
Drives: 2013 BRZ Limited 6MT
Location: Nashville, TN
Posts: 86
Thanks: 20
Thanked 41 Times in 27 Posts
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Any updates?
ka-titties is offline   Reply With Quote
Old 01-11-2019, 08:00 PM   #9
Juzzotec
Member

Juzzotec's Avatar

Join Date: Oct 2017
Drives: Toyota 86 GTS
Location: Sydney
Posts: 70
Thanks: 18
Thanked 35 Times in 23 Posts
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Installed 2 days ago and I am very happy with it.

Iíve always wanted to create a custom display and the Dasaita HA2135-v840-8 is incredibly fast and customisable, android head units seem to have come a long way.

This unit is a perfect fit for the 200mm DIN size of our cars and I paired it up perfectly to OBDLink MX Bluetooth OBDII dongle. The OBDLink MX is the fastest unit available and itís exceptional for all intent and purposes.

Carwebguru was installed and I began customising the premium curve theme. Currently testing both Torque Pro and Dashcommand and the results are both fast and clear. Take a look at the interface below, its a work in progress but I would recommend this setup highly.

Tell me what you think



Juzzotec is offline   Reply With Quote
The Following 4 Users Say Thank You to Juzzotec For This Useful Post:
EdBoy (01-12-2019), jflogerzi (01-12-2019), kevaughan (01-14-2019), Victorscp (01-12-2019)
Old 01-11-2019, 09:17 PM   #10
T0rt0r0
Member

Join Date: Jun 2017
Drives: European gt86
Location: France
Posts: 71
Thanks: 11
Thanked 15 Times in 8 Posts
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Did everything was plug'n'play ? (Wiring, reverse camera...)

Thanks !
T0rt0r0 is offline   Reply With Quote
Old 01-11-2019, 09:20 PM   #11
Juzzotec
Member

Juzzotec's Avatar

Join Date: Oct 2017
Drives: Toyota 86 GTS
Location: Sydney
Posts: 70
Thanks: 18
Thanked 35 Times in 23 Posts
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quote:
Originally Posted by T0rt0r0 View Post
Did everything was plug'n'play ? (Wiring, reverse camera...)

Thanks !


Yes for all the standard equipment, itís plug and play Toyota harness. I had to wire mine differently because I upgraded to a 12v reverse camera.


Sent from my iPhone using Tapatalk
Juzzotec is offline   Reply With Quote
The Following User Says Thank You to Juzzotec For This Useful Post:
T0rt0r0 (01-12-2019)
Old 01-12-2019, 06:16 PM   #12
Victorscp
Member

Join Date: Oct 2018
Drives: 2018 BRZ premium
Location: CA
Posts: 99
Thanks: 64
Thanked 39 Times in 24 Posts
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
dude that looks awesome!!! you think it would be hard to do on a 2018 brz?
Victorscp is offline   Reply With Quote
The Following User Says Thank You to Victorscp For This Useful Post:
Juzzotec (01-12-2019)
Old 01-12-2019, 11:22 PM   #13
jflogerzi
Senior Member

jflogerzi's Avatar

Join Date: May 2012
Drives: 2013 Series 10 6MT FR-S
Location: Moreno Valley, CA
Posts: 3,200
Thanks: 1,069
Thanked 965 Times in 748 Posts
Mentioned: 60 Post(s)
Tagged: 0 Thread(s)
Garage
Looks good. Wish I would have seen this prior to getting my new head unit but oh well.

Sent from my ONEPLUS A5010 using Tapatalk
__________________
2013 Series 10 FRS #553
Tomei UEL with Stock FP and MXP SP CB
Upgraded Brake Pads Stock Rotors with Motul 600 Fluid
Koing Hypergram 17x8 ET40 FS Indy Hawks 225/45/17
Sprintek 210 IC + FF + Tuned by Mike @ Xero Limit
jflogerzi is offline   Reply With Quote
The Following User Says Thank You to jflogerzi For This Useful Post:
Juzzotec (01-12-2019)
Old 01-12-2019, 11:37 PM   #14
FullBoat
Junior Member

Join Date: Apr 2016
Drives: Subaru BRZ
Location: Austin, TX
Posts: 6
Thanks: 0
Thanked 1 Time in 1 Post
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
So this one comes with the right harness to use the stock backup camera? No having to get another one, and splice it together? I'd be putting it in a '16 BRZ, so I wouldn't have to worry about the wheel controls. And, might also get their TPMS kit as well. That looks like a nice little add-on. Not having to muck around with other harness' would be a big plus I think.
