Modified Intake Snorkel with Additional Inlet Holes

Thanks to OP for the idea, @shiv@vishnu recommended removing the intake snorkel completely, but I started to rethink the idea after seeing the risk of heat soak.

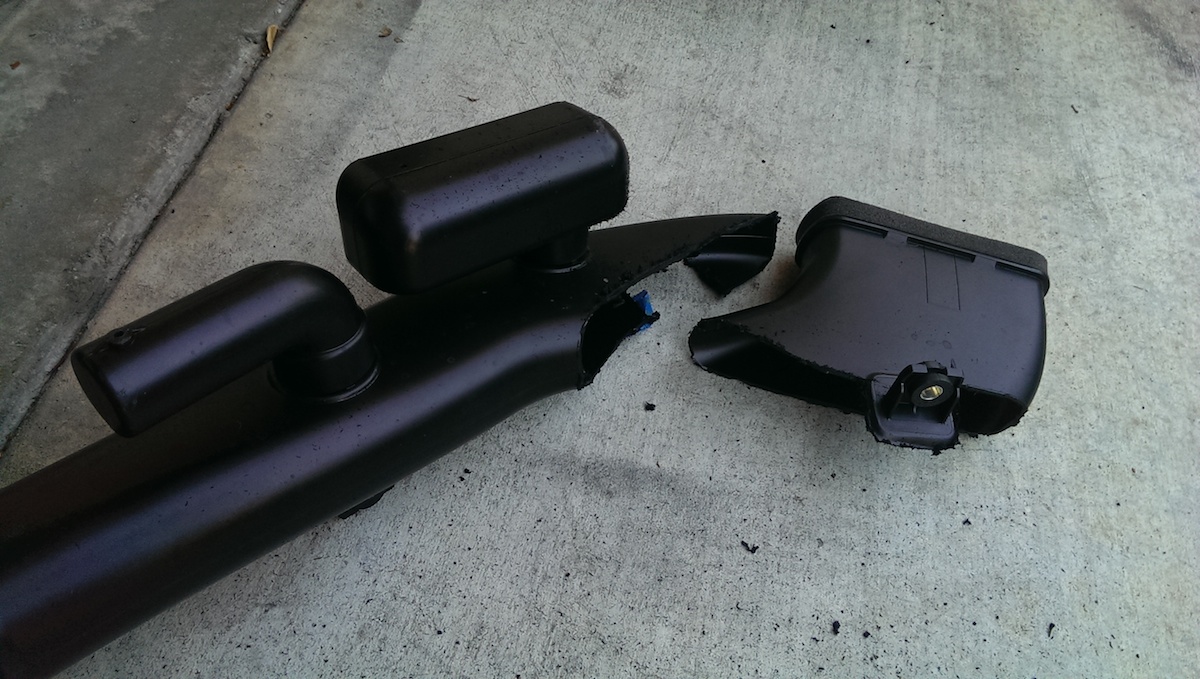

Figured I'd open the snorkel a bit, but keep on the tab that bolts up the frame. A dremel will be your best friend with this mod.

Name:  00.jpg
Views: 7487
Size:  310.8 KB

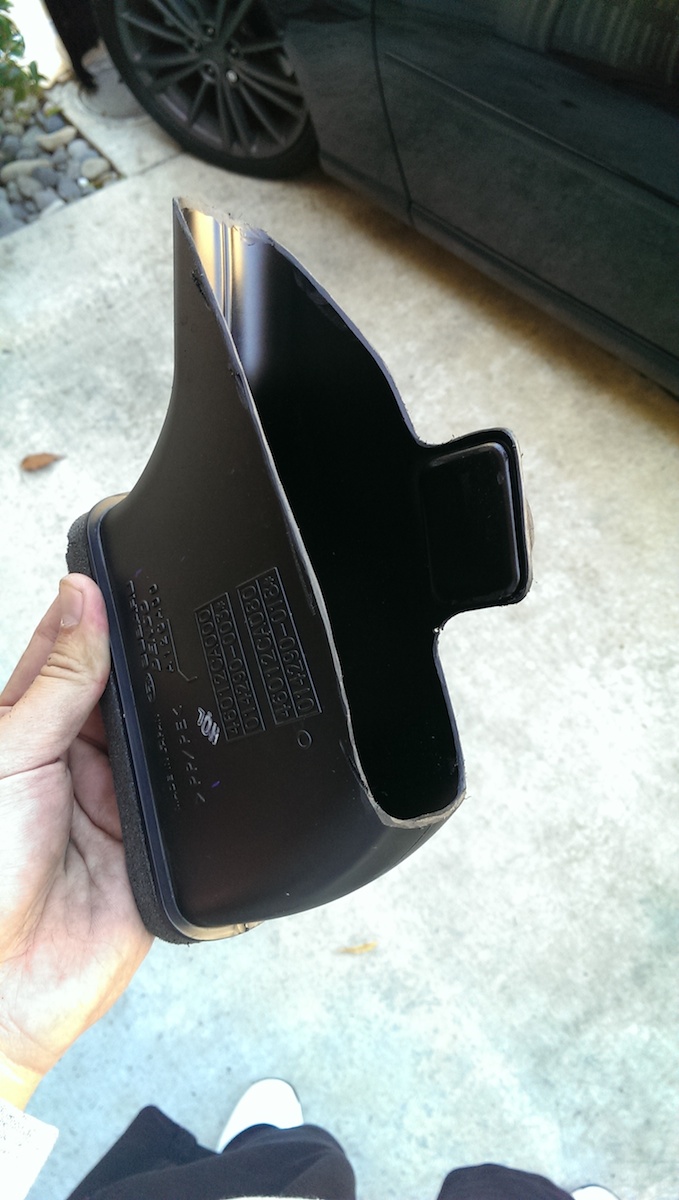

Picture of back-side

Name:  01.jpg
Views: 7116
Size:  207.1 KB

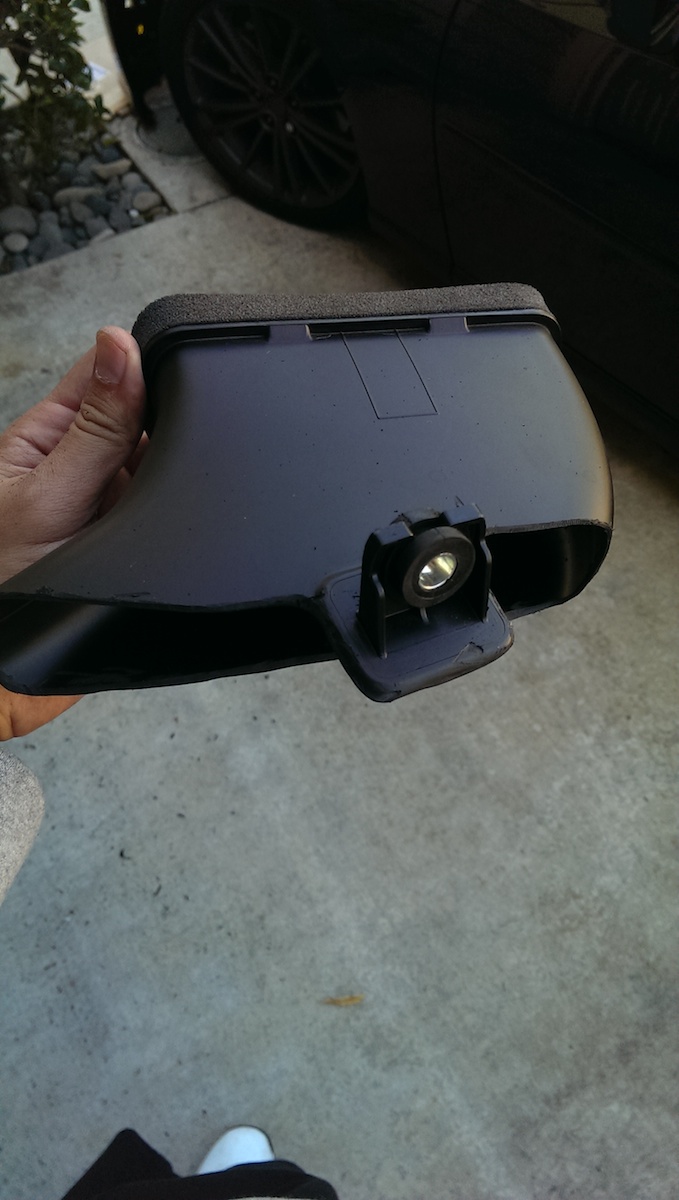

Top-view, I shaved down the edges

Name:  02.jpg
Views: 7341
Size:  181.0 KB

Test-fit of the modified snorkel. With the snorkel lined up, you can peak through and see some open space leading into the engine bay. I took the snorkel a step further following the picture below

Name:  03.jpg
Views: 8965
Size:  251.2 KB

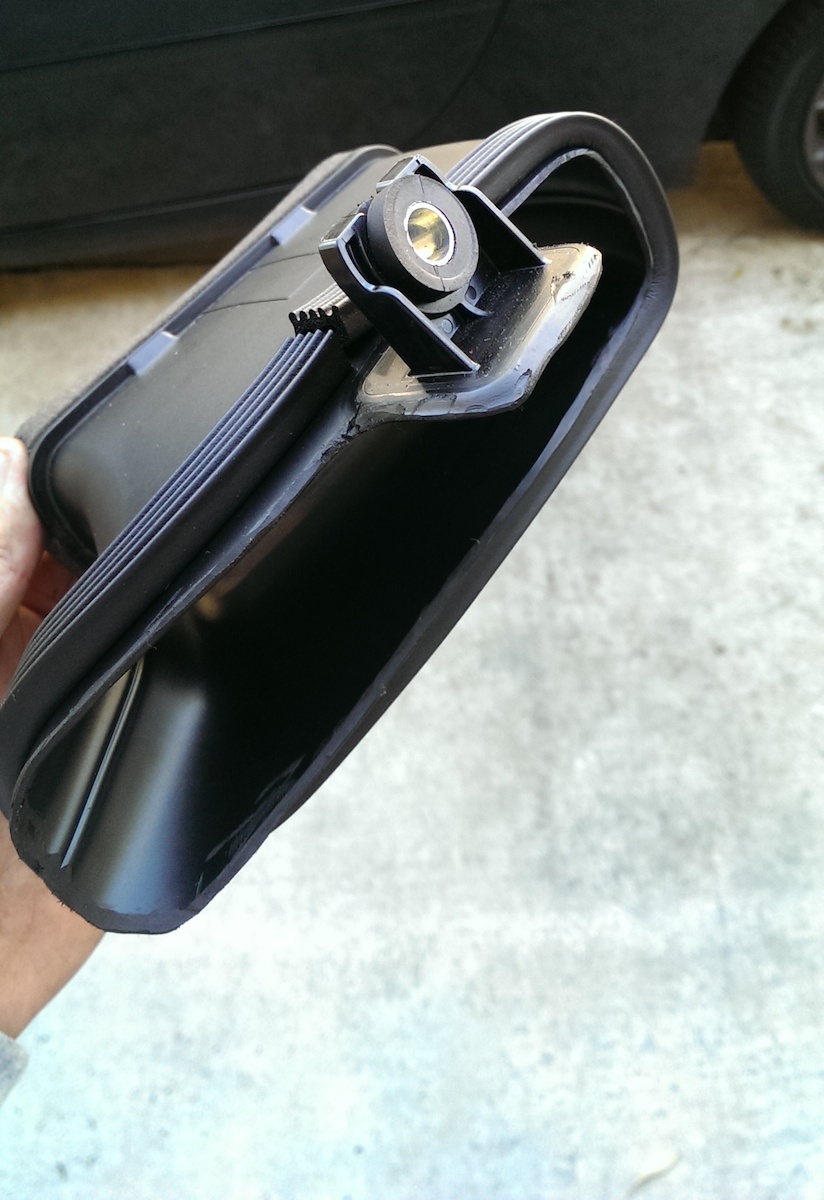

Added weather-resistent weather stripping around the snorkel to block-off any potential air seeping from the engine

Name:  04.jpg
Views: 7221
Size:  237.6 KB

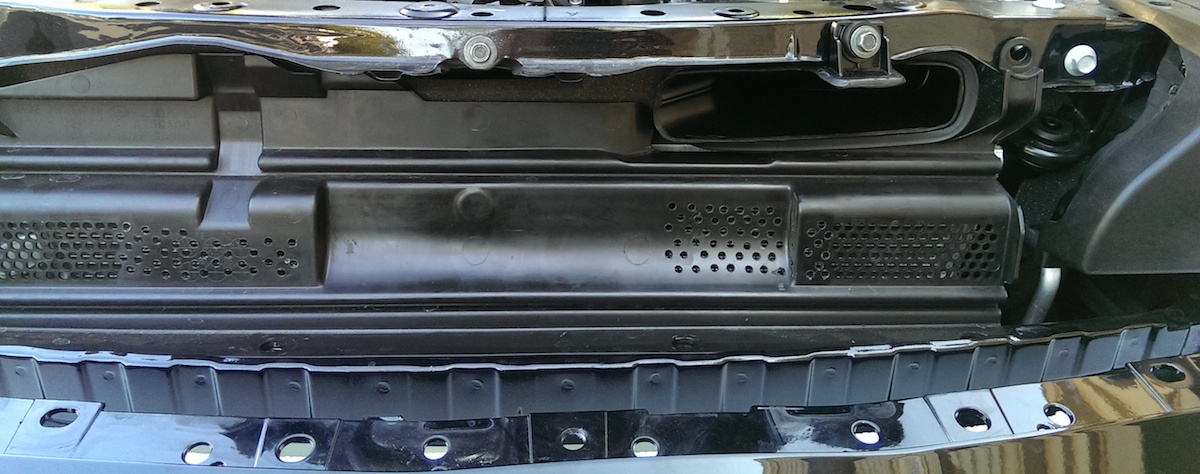

Snorkel bolted to the factory location. You can see how snug the space is with the weather-stripping. I removed the plastic panel sitting below the snorkel and drilled MOAR HOLES. Why? Well, why not?

Name:  05.jpg
Views: 8432
Size:  221.9 KB

Not the best job on lining up the holes, but you get the idea. I'm sure the Toyobaru Engineers were cautious when designing the intake system, so I see no harm in making mods similar to factory specs. I haven't noticed any loss in performance/hesitation, nor can I really feel a difference? I don't want to flash my system back to stock to test this config, though the engine does growl quite a bit when I'm on it.

It's a relatively simple mod, and it will make your intake louder. Lastly, I've flashed to 1.31 beta from Vishnu, great tune.

.ck
